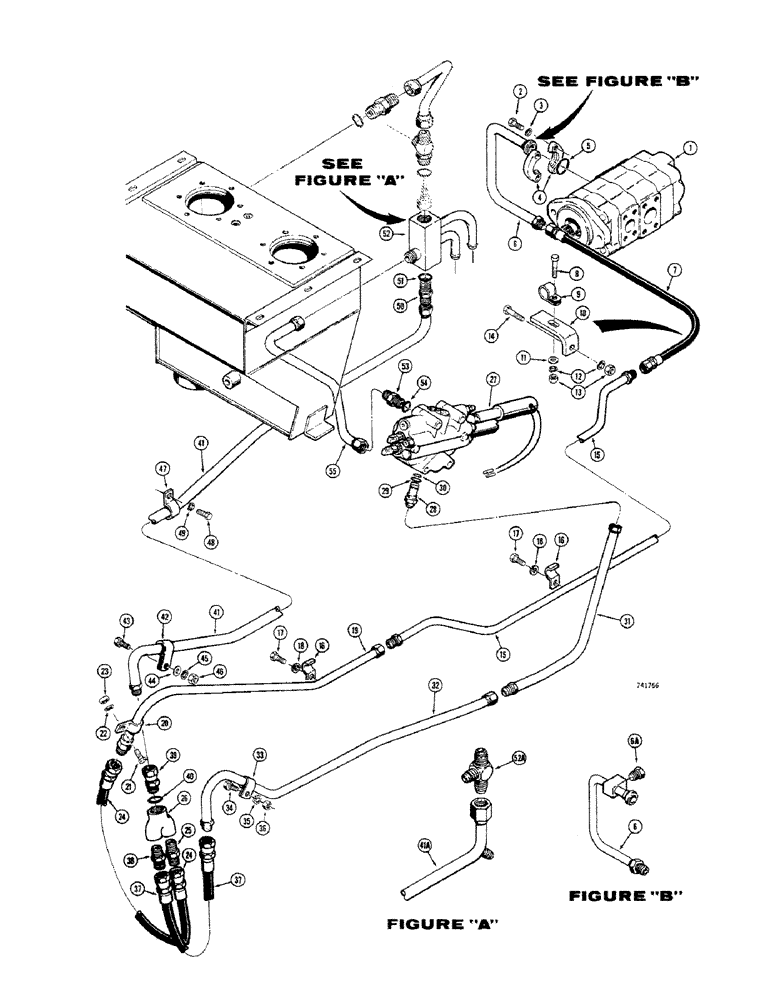

Запчасти Case 680CK (192) - LOADER HYDRAULICS, LOADER COUNTERWEIGHT MODEL RETURN LINES (82) - FRONT LOADER & BUCKET

1

L26379

PUMP

- hydraulic, equipment (25 GPM and 17 GPM - 42 GPM total at 2000 PSI at 2000 RPM) See Figure 384

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

4

A16961

FLANGE

- split (3/4")

2шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

L53121

TUBE,8, 7.5" L

- pump to backhoe valve, center inlet (At pump)

1шт.

6a

221-655

PLUG,Hex Hd, 3/4"-14

- tube, hex. head (3/4")

1шт.

7

D31796

HOSE

- pump to backhoe (29" long)

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose

1шт.

10

L47867

BRACKET - hose clamp

1шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

12

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

14

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

15

L47298

HARNESS

TUBE - pump to backhoe valve, center inlet (Intermediate)

1шт.

16

L25930

CLAMP

- tube

2шт.

17

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

2шт.

18

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

19

L46689

TUBE - pump to backhoe valve, center inlet (Rear) 0.75" OD x 26.2, 15.1" L

1шт.

20

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

24

L16415

HOSE,0.75" ID x 33.50", SAE 100R2A

ASSY, , Pump to Junction 0.75" ID x 33.50", SAE 100R2A

1шт.

25

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER - male, straight

1шт.

26

L19608

CONNECTOR, ELEC

"Y" JUNCTION - return line

1шт.

27

REF

INSTRUCTION

VALVE - loader control (See Figures 350 through 352 (1) for proper valve), Includes: Ref. 29 and 30

1шт.

28

L30466

LAMP

CONNECTOR - power beyond

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, connector (Large)

1шт.

30

L32680

RING

SEAL - "O" ring, connector (Small)

1шт.

31

L46460

TUBE - ldr. valve to b/hoe valve, end inlet (At ldr. valve) 1" OD x 16.7, 12.38" L

1шт.

32

L46459

TUBE

- ldr. valve to b/hoe valve, end inlet (At b/hoe valve)

1шт.

33

49840

CLAMP

- tube

1шт.

34

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

25-104

NUT,1/4"-20, G5

1шт.

37

L16416

HOSE ASSY.

HOSE - valve to junction (41" long)

1шт.

38

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - male, straight

1шт.

39

L19599

FITTING

ADAPTER - swivel type, straight, Includes: Ref. 40

1шт.

40

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

41

L46457

TUBE - return (Before tractor ser. no. 9106750) 1.25" OD x 75.6" L

1шт.

41a

L48493

TUBE - return (Tractor ser. no. 9106750 and after) 1.25" OD x 5.25" L

1шт.

42

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- tube

1шт.

43

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

44

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

45

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

47

A14183

CLAMP - tube

1шт.

48

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

49

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

50

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight (Used with L46457 tube only), Includes: Ref. 51

1шт.

51

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

52

L24325

MANIFOLD - oil cooler (Before tractor ser. no. 9106750)

1шт.

52a

218-609

TEE - male, oil cooler and backhoe return (Tractor ser. no. 9106750 and after)

1шт.

53

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, Incl. Ref. 54

1шт.

54

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

55

L46458

TUBE - return, loader, Serial Range: valve-manifold

1шт.
