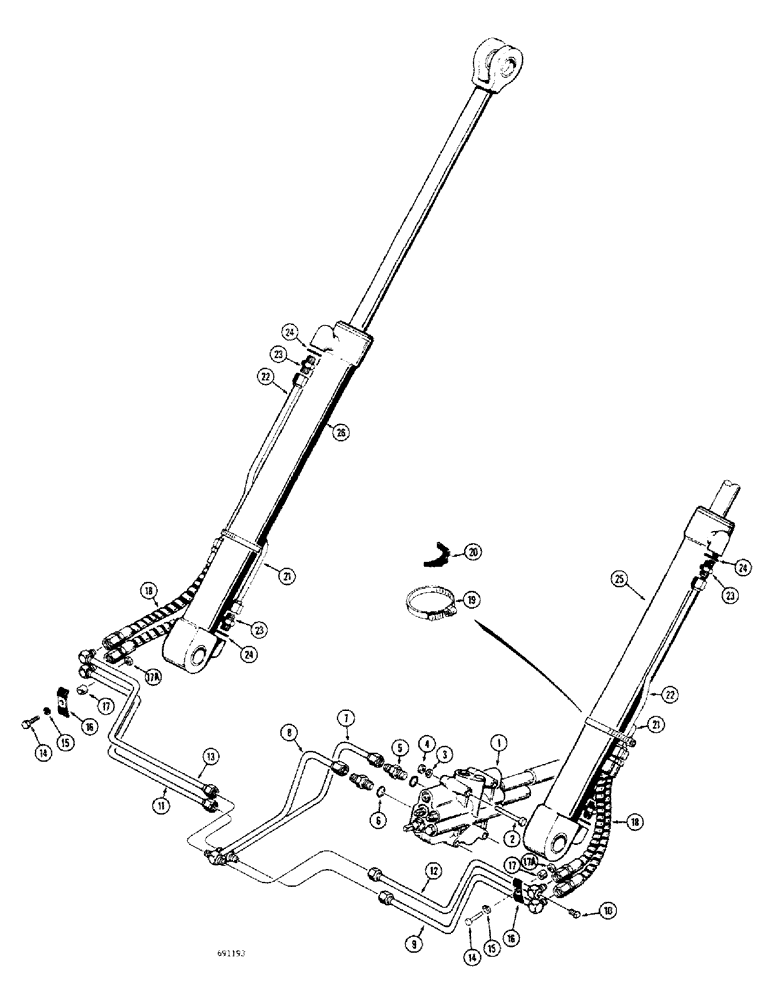

Запчасти Case 680CK (188) - LOADER HYDRAULICS, CONTROL VALVE TO LIFT CYLINDERS (82) - FRONT LOADER & BUCKET

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figure 350 or 352 for proper valve)

1шт.

2

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

Hex

3шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, Incl. Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

7

L25853

SPARE PART Valve to lift cylinder, closed end (At valve) 0.75" OD x 14.6, 4.5" L

1шт.

8

L25890

SPARE PART Valve to lift cylinder, rod end (At valve) 0.75" OD x 11.4, 4.5" L

1шт.

9

L25887

SPARE PART Valve to RH lift cylinder, closed end 0.625" OD x 17.25, 3.75" L

1шт.

10

221-1661

PLUG

Pipe, hex. head

1шт.

11

L25893

SPARE PART Valve to LH lift cylinder, closed end 0.625" OD x 24.75, 3.75" L

1шт.

12

L25884

SPARE PART Valve to RH lift cylinder, rod end 0.625" OD x 17.25, 3.75" L

1шт.

13

L25895

SPARE PART Valve to LH lift cylinder, rod end 0.625" OD x 24.75, 3.75" L

1шт.

14

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

R17319

CLAMP

Tube

2шт.

17

D33552

BUSHING

SPACER - clamp

2шт.

17a

9635082

NUT,5/16" - 18, Gr 5

Hex

2шт.

18

D34780

HOSE

Valve to lift cylinder (19" long)

4шт.

19

214269

CLAMP -, Serial Range: tube-cylinder

2шт.

20

D39502

SADDLE

Tube, rubber

2шт.

21

L26332

TUBE,0.625" OD x 9.5, 3.37" L

Valve to lift cylinder, closed end (At cylinder)

2шт.

22

L26308

TUBE,0.625" OD x 22.62" L

Valve to lift cylinder, rod end (At cylinder)

2шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Male, straight, Incl. Ref. 24

4шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, RH loader lift (See Figures 288 thru 292 for proper cylinder)

1шт.

26

REF

INSTRUCTION

CYLINDER - hydraulic, LH loader lift (See Figures 288 thru 292 for proper cylinder)

1шт.
