Артикул
Название
Примечание
Количество
D15611

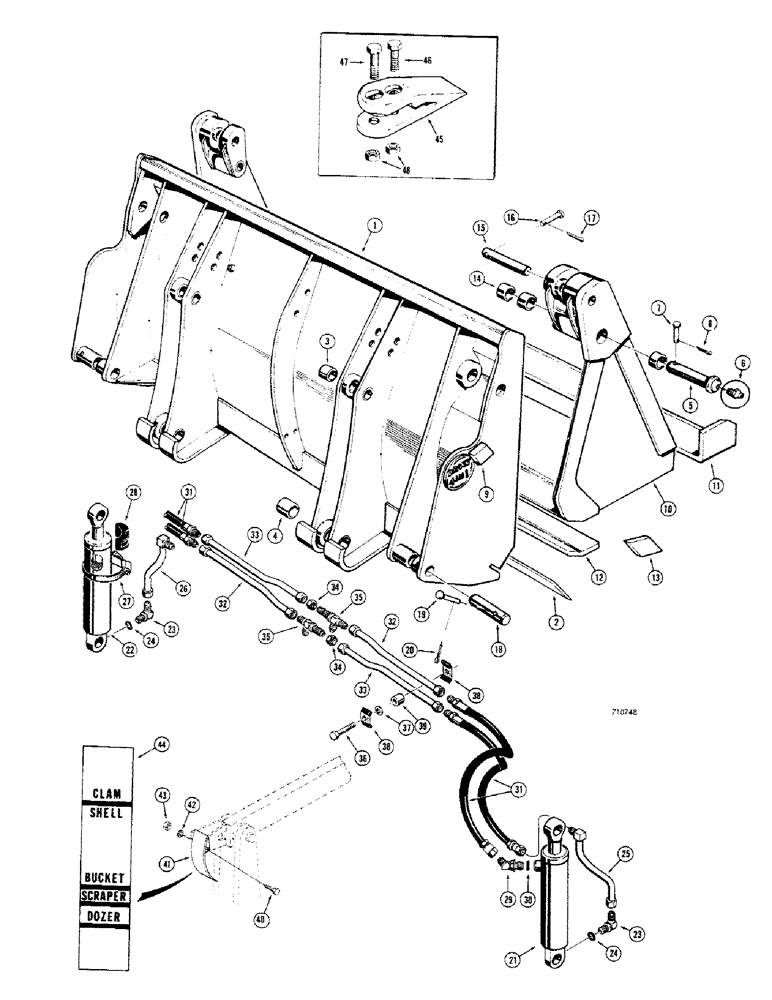

BUCKET - without teeth (1 yd.) machinery item, Includes: Ref. 1 - 14
1шт.
D49623
BLADE ASSEMBLY - bucket, Includes: Ref. 1 - 4
1шт.
1
NSS
NOT SOLD SEPARAT
BLADE - bucket
1шт.
3
D32919
BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L
- upper
4шт.
4
D33659
BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L
- lower
4шт.
5
D46917
PIN
-, Serial Range: blade-clam
2шт.
6
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
7
D46973
PIN
- clevis
2шт.
8
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
9
D46913
PLATE
BLOCK - stop
2шт.
D49616
CLAW
CLAM ASSEMBLY - bucket, Includes: Ref. 10 - 14
1шт.
10
NSS
NOT SOLD SEPARAT
CLAM - bucket
1шт.
11
D49617
EDGE
CUTTING EDGE - clam
1шт.
12
D49618
PLATE
WEAR PLATE - clam
1шт.
13
D46914
PLATE
GRAB HOOK
2шт.
14
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
- hinge
6шт.
15
D39311
PIN
- upper, Serial Range: cylinder-brake
2шт.
16
D47252
PIN
- clevis
2шт.
17
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
18
D39306
PIN
- lower, Serial Range: cylinder-blade
2шт.
19
D47251
PIN
- clevis
2шт.
20
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
21
REF
INSTRUCTION
CYLINDER - clam, R.H. (See Figure 296 or 298)
1шт.
22
REF
INSTRUCTION
CYLINDER - clam, L.H. (See Figure 296 or 298)
1шт.
23
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degrees, Incl. Ref. 24
2шт.
24
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
25
D46957
TUBE
- closed end cylinder (R.H.)
1шт.
26
D46955
TUBE
- closed end cylinder (L.H.)
1шт.
27
214-267
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
CLAMP - tube
2шт.
28
D38648
BLOCK
SADDLE - rubber, clamp
2шт.
29
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
2шт.
30
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
31
36547
HOSE
- tube to cylinder (19" long)
4шт.
32
D49631
TUBE - tee to cylinder, L.H. lower - R.H. upper
2шт.
33
D49632
TUBE - tee to cylinder, L.H. upper - R.H. lower
2шт.
34
50875
NUT
- bulk head
2шт.
35
D46898
3 WAY CONNECTION
TEE - bulkhead
2шт.
36
13-630
BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5
HHCS - 3/8" - 16 NC x 1-7/8"
2шт.
37
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
2шт.
38
D40236
CLAMP
- tube
4шт.
39
D33552
BUSHING
SPACER - clamp
2шт.
40
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
41
L15299
BRACKET - decal mounting
1шт.
42
92-5
LOCK WASHER,5/16"
med sect. 5/16"
2шт.
43
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
2шт.
44
321-1225
DECAL - bucket position
1шт.
45
D46885
TOOTH
- bucket, optional
7шт.
46
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
Bucket teeth optional Hex, 1/2"-13 x 2", G5
7шт.
47
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
HHCS - 1/2" - 13 NC x 2-1/4", bucket teeth optional
7шт.
48
25-108
NUT,1/2"-13, G5
- hex. (1/2 - 13 NC), bucket teeth optional
14шт.
Выбрано товаров: 51
