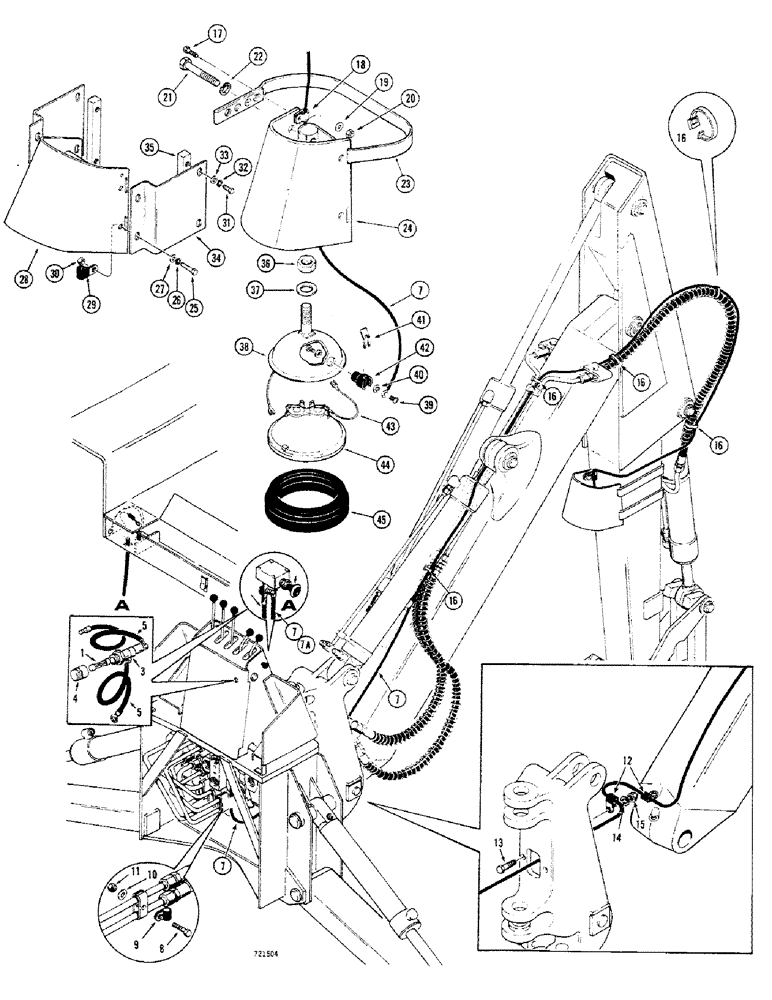

Запчасти Case 680CK (218) - DIPPER LIGHT, EARLY PRODUCTION, LATE PRODUCTION, LAMP (55) - ELECTRICAL SYSTEMS

1

223-20

FUSE,20 Amp, Type SFE

- 20 amp.

1шт.

2

L43742

WIRE ASSEMBLY - rear harness to dipper light switch (63" long) used if tractor has a fuse in switch circuit, Includes: Ref. 3 - 5

1шт.

A8006

NOZZLE HOLDER

HOLDER - fuse, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - holder, fuse

1шт.

4

A10958

CAP

- holder, fuse

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - taillight

2шт.

6

G13142

IGNITION SWITCH

SWITCH - dipper light

1шт.

7

D37808

WIRE - switch to dipper light (216" long) used if tractor has a fuse in switch circuit

1шт.

7a

L53996

WIRE - switch to dipper light (216" long) used if no fuse is in switch circuit

1шт.

7b

L53995

WIRE - rear harness to dipper light switch (63" long) used if no fuse is in switch circuit

1шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

9

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at boom tube clamp (If used)

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

12

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at swing tower and boom grease fitting (If used)

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, wire retaining

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Early production Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

18

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, at dipper light, early production

1шт.

19

195-25

WASHER,3/8"

- plain (), early production 3/8"

1шт.

20

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC), early production

1шт.

21

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

Early production Hex, 1/2"-13 x 6 1/2", G5

2шт.

22

92-8

LOCK WASHER,1/2"

med. sect., early production 1/2"

2шт.

23

D41171

BAND

STRAP - light mounting, early production

2шт.

24

D41427

SHIELD

- dipper lamp, early production

1шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Late production) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

26

92-8

LOCK WASHER,1/2"

med. sect., late production 1/2"

4шт.

27

95-8

WASHER,1/2"

- plain, late production 1/2"

4шт.

28

D41427

SHIELD

- dipper lamp, late production

1шт.

29

51200330

CLAMP

- wire, late production

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex. (1/2" - 13 NC), late production

4шт.

31

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd, Late production

4шт.

32

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

33

95-8

WASHER,1/2"

- plain, late production 1/2"

4шт.

34

L50503

PLATE - mounting, dipper lamp, late production

2шт.

35

L50502

BLOCK

- tapped, weld on, late production

2шт.

36

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC), lamp assembly and mounting

1шт.

37

195-33

WASHER,1/2"

- plain (), lamp assembly and mounting 1/2"

1шт.

D37811

LAMP

ASSEMBLY - dipper arm, and mounting

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - lamp, assembly and mounting

1шт.

39

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8 - 32 NC x 1/4"), lamp assembly and mounting

2шт.

40

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER - lock, #8 (External tooth Shakeproof), lamp assembly and mounting

2шт.

41

10927

SPRING

- lamp, assembly and mounting

1шт.

42

B50293

TERMINAL CONNECTOR

- lamp, assembly and mounting

1шт.

43

A25262

ELECTRICAL WIRE

WIRE - lamp, assembly and mounting

1шт.

44

D33182

LAMP

BULB - sealed beam, lamp assembly and mounting

1шт.

45

D31441

RETAINER

- lamp, assembly and mounting

1шт.
