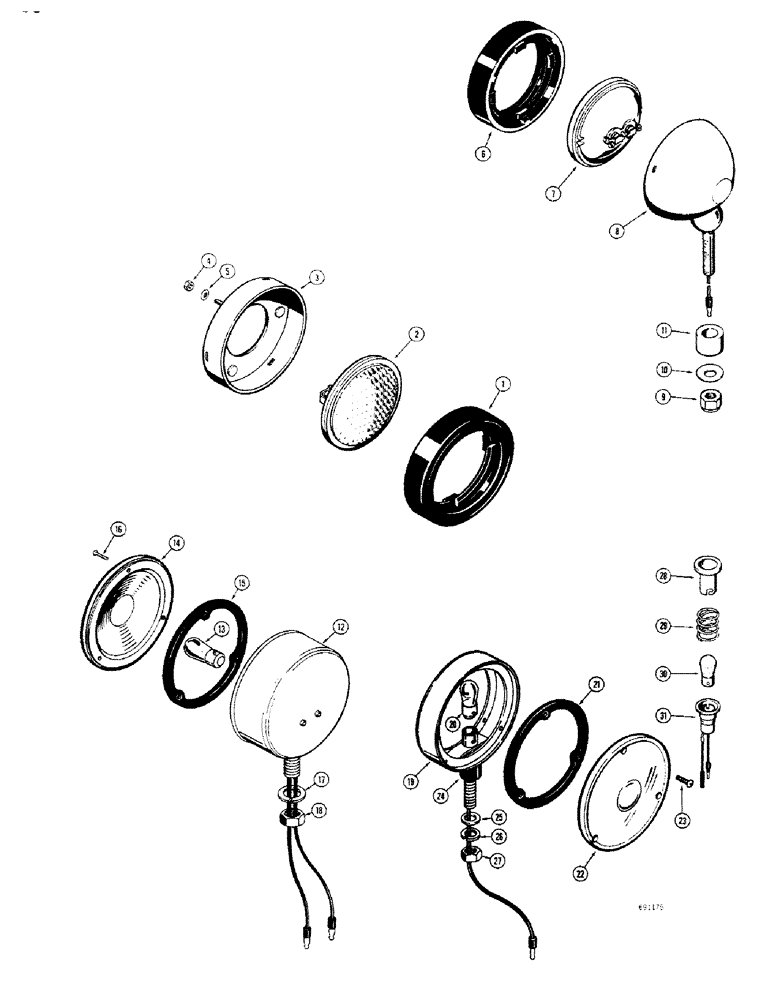

Запчасти Case 680CK (056) - ELECTRICAL SYSTEM, LIGHTS, D30243 HEADLIGHT, L19663 REAR (55) - ELECTRICAL SYSTEMS

D30243

LAMP

HEADLIGHT ASSEMBLY - front, Includes: Ref. 1 - 3

2шт.

1

A25213

RETAINER

- light (Used only in Hobbs assembly)

1шт.

1

D31441

RETAINER

- light (Used only in guide lamp assembly)

1шт.

2

D33182

LAMP

LIGHT - sealed beam

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

4

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

6шт.

5

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6шт.

L19663

LIGHT

ASSEMBLY - rear, Includes: Ref. 6 - 11

2шт.

6

A25213

RETAINER

- rear light

1шт.

7

L30464

BULB

LIGHT - sealed beam, rear

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - light, rear

1шт.

9

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), rear light

1шт.

10

D37049

WASHER

- mounting, rear light

1шт.

11

D37048

BUSHING

- pivot, rear light

1шт.

L26301

LIGHT ASSEMBLY - stop and tail, Includes: Ref. 12 - 16

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - light, stop and tail

1шт.

13

R11078

LAMP

BULB - light, 12 volt, stop and tail

1шт.

L32213

LENS

KIT - replacement, stop and taillight, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

LENS - red, stop and taillight

1шт.

15

NSS

NOT SOLD SEPARAT

GASKET - lens, stop and taillight

1шт.

16

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- no. 6 - 32 NC x 5/8", stop and taillight

3шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Stop and taillight 1/2"

1шт.

18

129-125

NUT,1/2"-20, G5

Stop and tail light 1/2"-20, G5

1шт.

L26302

LIGHT

ASSEMBLY - signal and flasher, Includes: Ref. 19 - 23

2шт.

19

NSS

NOT SOLD SEPARAT

BODY - light, signal and flasher

1шт.

20

A41264

BULB,#1156, 12V

Light, Signal and flasher light #1156, 12V

1шт.

L32214

LENS

KIT - replacement, Includes: Ref. 21, signal and flasher light

2шт.

21

NSS

NOT SOLD SEPARAT

GASKET - lens, signal and flasher light

1шт.

22

NSS

NOT SOLD SEPARAT

LENS - amber, signal and flasher light

1шт.

23

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- no. 6 - 32 NC x 5/8", signal and flasher light

3шт.

24

L32256

WASHER

BUSHING - pilot, rubber, signal and flasher light

1шт.

25

195-105

WASHER,7/16"

- plain (1/2") zinc plated, signal and flasher light

1шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Signal and flasher light 1/2"

1шт.

27

129-125

NUT,1/2"-20, G5

Signal and flasher light 1/2"-20, G5

1шт.

L11344

WARNING LIGHT

LIGHT ASSEMBLY - engine warning, low or no oil pressure or high coolant temperature, Includes: Ref. 28 - 31

2шт.

28

L30504

LENS

- light, engine warning

1шт.

29

L30505

VALVE SPRING

SPRING - light, engine warning

1шт.

30

45490

LIGHT

BULB - light, engine warning

1шт.

31

L30506

SOCKET - light base, engine warning

1шт.
