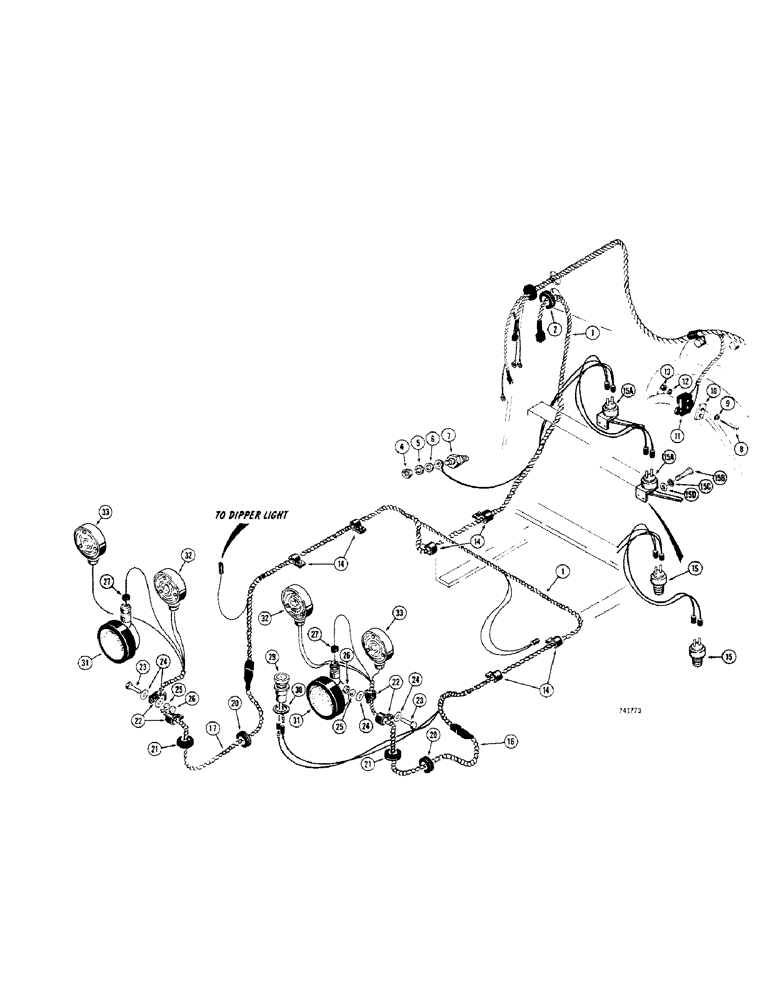

Запчасти Case 680CK (054) - ELECTRICAL SYSTEM, REAR HARNESS (55) - ELECTRICAL SYSTEMS

1

L48333

HARNESS

- main wiring, rear

1шт.

2

L17604

GROMMET

- rubber, at fire wall

1шт.

3

RESERVED

1шт.

4

129-37

NUT,#10-32

1шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

6

195-512

WASHER,#10

- plain () zinc plated #10

1шт.

7

A13795

SENDER UNIT

SENDING UNIT - converter temperature gauge

1шт.

8

173-69

RHMS - #6 - 32 NC x 1-1/2"

2шт.

9

195-6

WASHER,#6

- plain () #6

2шт.

10

L11524

SPACER - neutral starting switch

1шт.

11

L54683

SWITCH

- neutral starting

1шт.

12

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

13

129-5

NUT,#6-32

2шт.

14

A22880

CLIP

- harness

6шт.

15

A12491

SWITCH

- brake, stop light (Hydraulic actuated)

2шт.

15a

A33977

SWITCH

- stop light (Mechanically actuated)

2шт.

15b

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- round head machine (#10 - 32 NF x 1/2")

4шт.

15c

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

15d

195-512

WASHER,#10

- plain () #10

4шт.

16

L26381

HARNESS - rear lights, R.H.

1шт.

17

L26381

HARNESS - rear lights, L.H.

1шт.

19

49774

CLAMP

- rear harness to vacuum reservoir tank (Not illustrated)

1шт.

20

L17603

GROMMET

- rear harness, at fender

2шт.

21

49562

GROMMET,11/16" ID x 1" Groove Dia

- rubber, at fender

2шт.

22

49589

CABLE

CLAMP - harness to light bracket

4шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

8шт.

25

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

27

A23870

GROMMET

- rubber, at light bracket

2шт.

29

L11344

WARNING LIGHT

LIGHT - engine warning (Parts list Figure 56)

1шт.

30

L11345

GASKET

- light, engine warning

1шт.

31

L19663

LIGHT

REAR LIGHT ASSEMBLY - 12 volt (Parts list Figure 56)

2шт.

32

L26301

STOP AND TAILLIGHT - 12 volt (Parts list Figure 56)

2шт.

33

L26302

LIGHT

FLASH AND DIRECTIONAL LIGHT - 12 volt (See Figure 56)

2шт.
