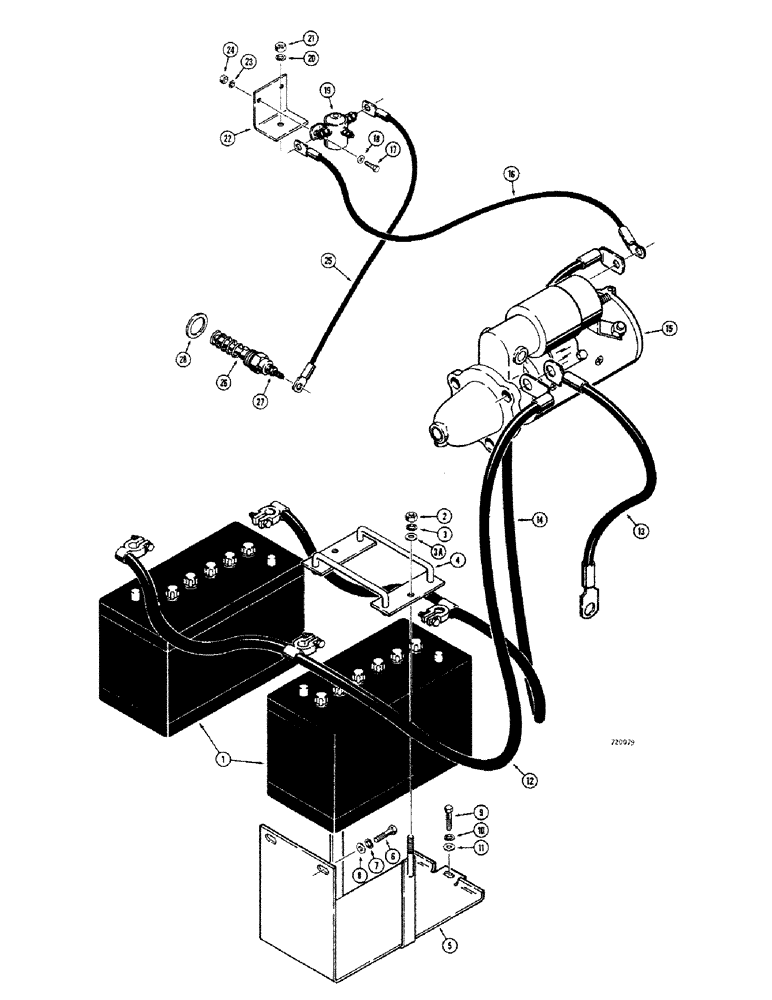

Запчасти Case 680CK (048) - ELECTRICAL SYSTEM, BATTERIES, CABLES AND ENGINE PRE-HEATER (55) - ELECTRICAL SYSTEMS

1

A58559

BATTERY

- electrical, 12 volt

2шт.

2

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

3a

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

4

L15283

FUNNEL

FRAME - battery holddown

2шт.

5

L11059

BATTERY TRAY

TRAY - battery

2шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

11

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

12

L18934

CABLE

- battery, negative

1шт.

13

L26443

CABLE - starter to ground, negative

1шт.

14

L18935

CABLE

- battery, positive

1шт.

15

A59217

STARTER MOTOR

STARTER - engine, electrical (Parts list Figures 38 thru 42)

1шт.

16

A24093

CABLE PULLING GRIP

CABLE - starter to pre-heater solenoid

1шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

18

195-518

WASHER,1/4", SAE

- plain (1/4") zinc plated

2шт.

19

A57069

SOLENOID

- manifold heater, 12 volt

1шт.

20

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

21

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF)

1шт.

22

L11520

BRACKET - solenoid mounting

1шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

24

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

25

L11368

CABLE

-, Serial Range: solenoid-heater

1шт.

26

A37775

HEATER

- manifold, Includes: Ref. 27

1шт.

27

129-503

NUT,1/4"-20, Brass

1шт.

28

A20916

MANIFOLD GASKET

GASKET -, Serial Range: element-manifold

1шт.
