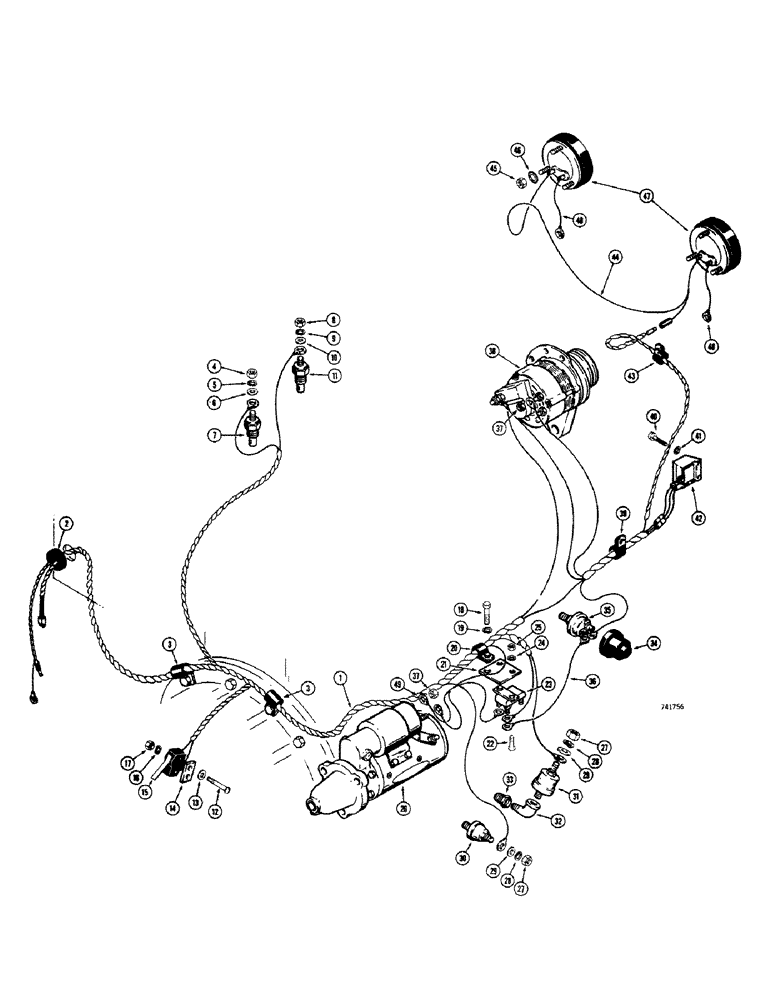

Запчасти Case 680CK (046) - ELECTRICAL SYSTEM, FRONT HARNESS (55) - ELECTRICAL SYSTEMS

1

L48342

WIRE HARNESS

HARNESS - main wiring, front

1шт.

2

L17604

GROMMET

- firewall

1шт.

3

A22880

CLIP

CLAMP - harness to flywheel housing

2шт.

4

129-16

NUT,#8-32

1шт.

5

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

6

195-509

WASHER,3/16"

- plain (#8)

1шт.

7

L11350

SENDER UNIT

SENDING UNIT - engine water temperature warning light (When stock is exhausted, use L50238 sending unit)

1шт.

7

L50238

SWITCH

SENDING UNIT - engine water temperature warning light

1шт.

8

129-37

NUT,#10-32

1шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

10

195-512

WASHER,#10

- plain () #10

1шт.

11

A21462

SENDER UNIT

SENDING UNIT - water temperature gauge

1шт.

12

173-69

SCREW - machine, round head (#6 - 32 NC x 1-1/2")

2шт.

13

195-6

WASHER,#6

- plain () #6

2шт.

14

L11524

SPACER - neutral starting switch

1шт.

15

L54683

SWITCH

- neutral starting

1шт.

16

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

17

129-5

NUT,#6-32

2шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

20

49885

CLAMP

- front harness at circuit breaker

1шт.

21

L18960

BRACKET

- circuit breaker

1шт.

22

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, round head (#10 - 24 NC x 1/2")

2шт.

23

L11343

BREAKER

CIRCUIT BREAKER - electrical, 60 amp.

1шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

25

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC)

2шт.

26

A59217

STARTER MOTOR

STARTER - engine, electrical (Parts list Figure 38 thru 42)

1шт.

27

129-37

NUT,#10-32

2шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

29

195-512

WASHER,#10

- plain () #10

2шт.

30

A13794

TRANSMITTER

SENDING UNIT - engine oil pressure indicator light

1шт.

31

A35031

SENDER UNIT

SENDING UNIT - engine oil pressure gauge

1шт.

32

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degrees

1шт.

33

221-1052

PLUG

REDUCER BUSHING - pipe

1шт.

34

L13821

BOOT

- protective, pressure switch

1шт.

35

D28798

SWITCH

- engine oil pressure, Includes: Ref. 36

1шт.

36

D28797

ELECTRICAL WIRE

WIRE - pressure switch

1шт.

37

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC)

3шт.

38

A41340

ALTERNATOR

- electrical (Parts list Figure 44)

1шт.

39

49859

CLAMP

- harness, at suction line mounting bracket

1шт.

40

165-20

HEX SOC SCREW,#10 - 24 x 3/8"

SCREW - hex. socket head (#10 - 24 NC x 3/8")

3шт.

41

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

42

L11351

REGULATOR

VOLTAGE REGULATOR - electrical

1шт.

43

49832

CLAMP

- wire, radiator shroud

1шт.

44

L11352

ELECTRICAL WIRE

WIRE - headlight connecting

1шт.

45

129-7

NUT,Hex, #10 - 24

- hex. (310 - 24 NC)

6шт.

46

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6шт.

47

D30243

LAMP

HEADLIGHT - 12 volt (Parts list Figure 56)

2шт.

48

A15941

ELECTRICAL WIRE

WIRE - headlight ground

2шт.

49

NLS

NO LONGER SERVICED

WIRE - solenoid to circuit breaker

1шт.
