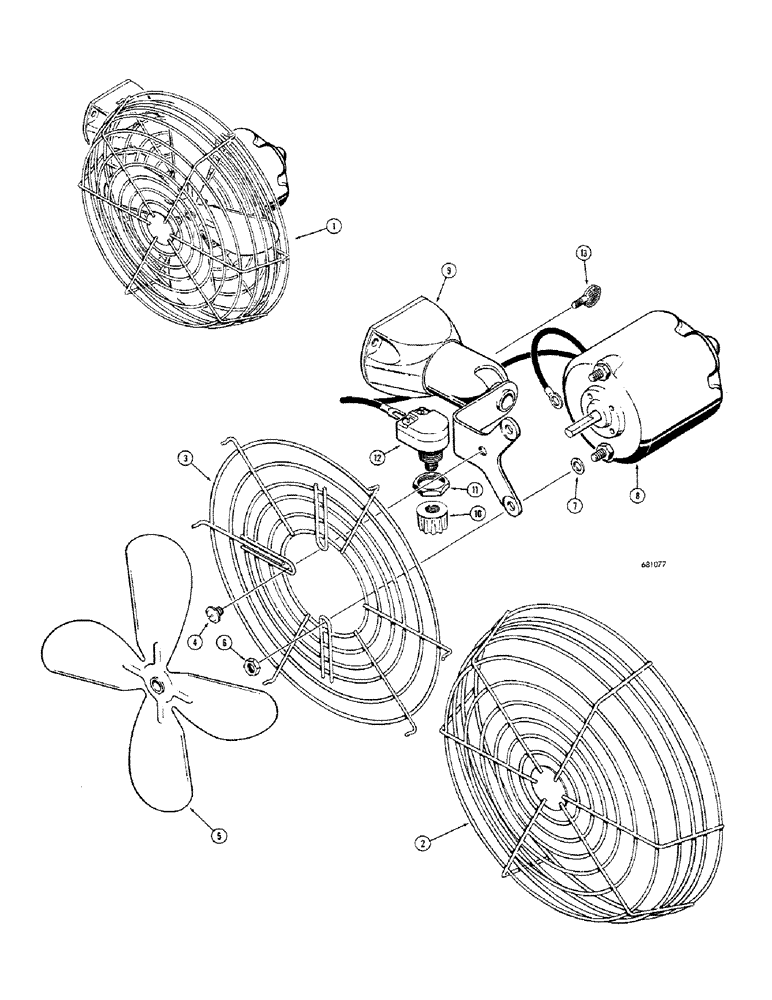

Запчасти Case 680CK (170) - L13468 DEFROSTER FAN, CAB WINDSHIELD WIPERS - FRONT AND REAR (50) - CAB CLIMATE CONTROL

1

L13468

FAN

- defroster, cab rear window, Includes: Ref. 2 - 13

1шт.

2

L30907

GUARD

GRILLE - fan, front

1шт.

3

L30904

GRILLE

- fan, back

1шт.

4

L30906

BOLT

- special

1шт.

5

L30902

FAN

BLADE ASSEMBLY - fan

1шт.

6

225-14208

NUT,#8-36

- hex. (#8 - 36 NF)

2шт.

7

L35760

WASHER

- special

1шт.

8

A44571

MOTOR, ELECTRIC

MOTOR - fan

1шт.

9

L30900

BASE

- fan

1шт.

10

L30909

KNOB

- control

1шт.

11

L30908

NUT

- hex., special

1шт.

12

L30903

SWITCH

- control

1шт.

13

L30910

SCREW

THUMB SCREW - swivel (If used)

1шт.

14

L35262

MOTOR

- windshield wiper, front (12 volt) not shown, cab rear

1шт.

15

L35263

ARM

- windshield wiper, front (Not shown), cab rear

1шт.

16

F42214

WIPER

BLADE - windshield wiper, front (18" long) not shown, cab front

1шт.

17

L35264

WIPER MOTOR

MOTOR - windshield wiper, rear (12 volt) not shown, cab front

1шт.

18

F42213

ARM

- windshield wiper, rear (Not shown), cab front

1шт.

19

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper, rear (16" long) not shown, front

1шт.
