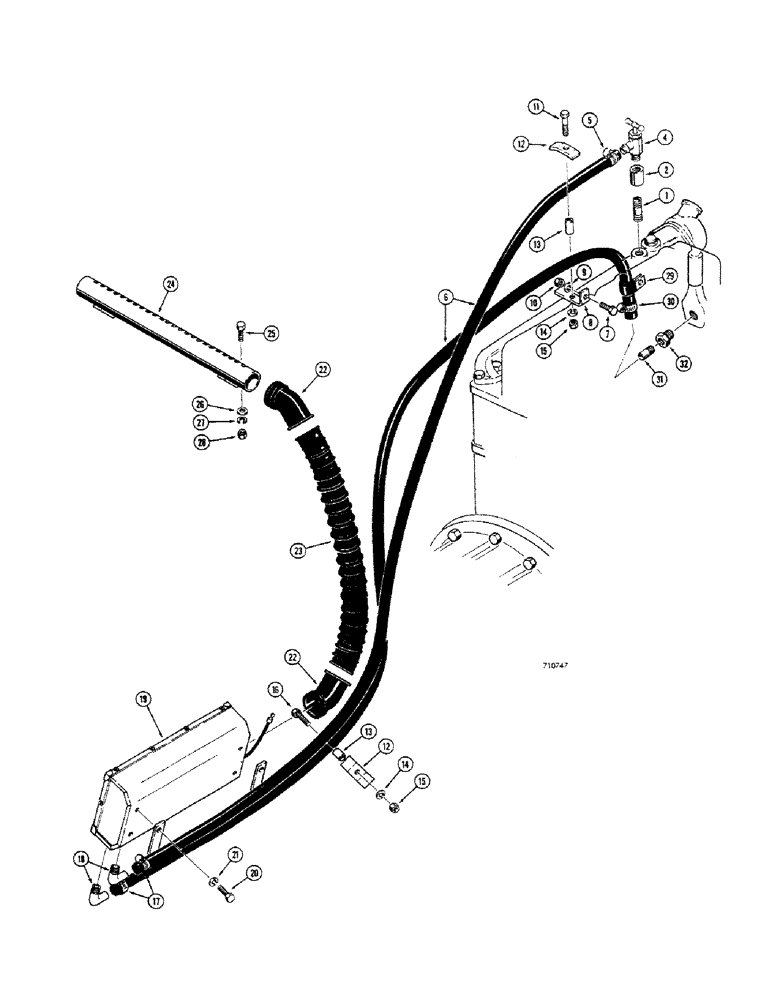

Запчасти Case 680CK (168) - CAB HEATER AND RELATED PARTS (50) - CAB CLIMATE CONTROL

1

221-1164

HYD CONNECTOR

NIPPLE - tee

1шт.

2

221-1328

X

COUPLING - pipe

1шт.

4

A16764

VALVE

- water shutoff

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

6

L46646

HOSE

- heater, low pressure (95" long)

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

8

L19212

BRACKET - hose mounting

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

25-104

NUT,1/4"-20, G5

1шт.

11

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

12

A14078

CLAMP

- hose

1-2шт.

13

D33554

BUSHING

SPACER - hose clamp

1-2шт.

14

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1-2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1-2шт.

16

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(If used) Hex, 5/16"-18 x 2", G5

1шт.

17

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

18

A19941

PACKAGE

ELBOW - special, 90 degrees

2шт.

19

A12897

HEATER - 12 volt

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22

L13465

ELBOW - special, 45 degrees

2шт.

23

L13466

HOSE - low pressure (26" long)

1шт.

24

L15163

DEFROSTER

TUBE - defroster

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

26

95-4

WASHER,1/4"

- standard wrot () 1/4"

2шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

25-104

NUT,1/4"-20, G5

2шт.

29

R14668

CLAMP

- hose (If used)

1шт.

30

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

31

L17985

FITTING,3/8" - 18 NPT

NIPPLE - heater hose, special

1шт.

32

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing, Pipe Hex, 3/4" x 3/8" NPT

1шт.
