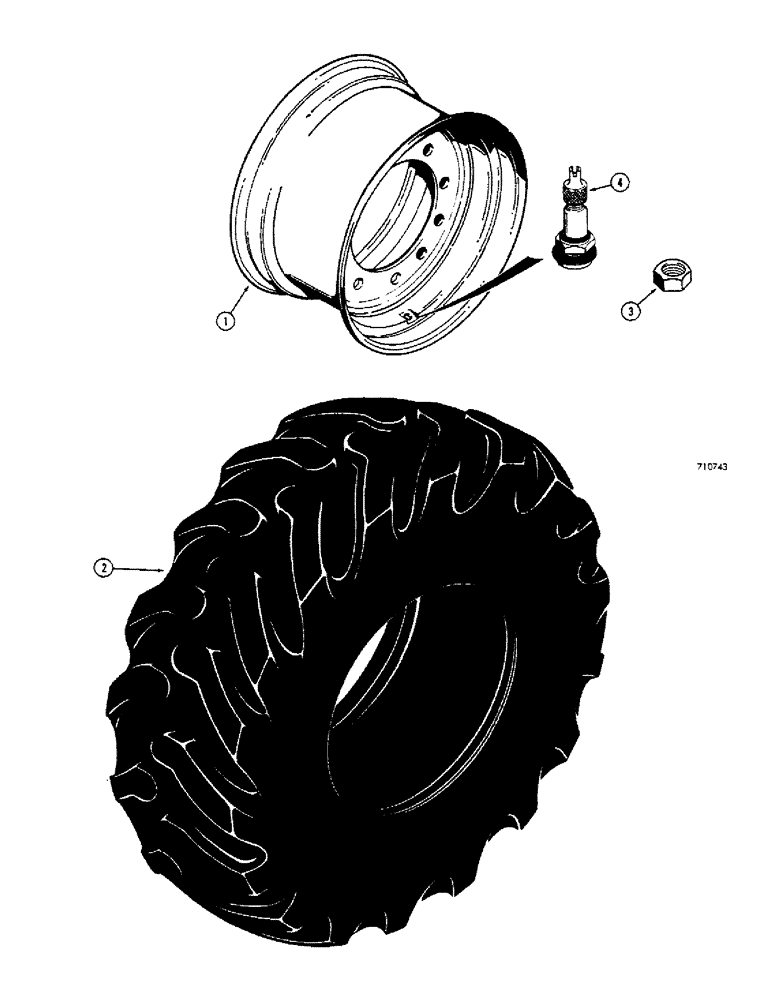

Запчасти Case 680CK (144) - REAR DRIVE WHEELS, USED ON MODELS WITH 16.9 X 24 - 8 PLY (44) - WHEELS
№
Артикул
Название
Примечание
Количество
1
L46464
RIM - rear drive wheel, used on models with 16.9 x 24 - 8 ply tires
2шт.
All Ref. 1 Rims on this page have 10 Holes.
1шт.
2
REF
INSTRUCTION
TIRE - rear drive, 16.9 x 24 - 8 ply, used on models with 16.9 x 24 - 8 ply tires
2шт.
3
L50592
NUT
- valve stem (Tube type tires only), used on models with 16.9 x 24 - 8 ply tires
2шт.
4
A20058
VALVE STEM
- Wheels (Tubeless tires only), used on models with 16.9 x 24 - 8 ply tires
2шт.
1
L46464
RIM - rear drive wheel, used on models with 16.9 x 24 - 10 ply tires
2шт.
2
REF
INSTRUCTION
TIRE - rear drive, used on models with 16.9 x 24 - 10 ply tires
2шт.
3
L50592
NUT
- valve stem (Tube type tires only), used on models with 16.9 x 24 - 10 ply tires
2шт.
4
A20058
VALVE STEM
- Wheel (Tubeless tires only), used on models with 16.9 x 24 - 10 ply tires
2шт.
1
L46464
RIM - rear drive wheel, used on models with 16.9 x 24 - 12 ply tires
2шт.
2
REF
INSTRUCTION
TIRE - rear drive, used on models with 16.9 x 24 - 12 ply tires
2шт.
3
L50592
NUT
- valve stem (Tube type tires only), used on models with 16.9 x 24 - 8 ply tires
2шт.
4
A20058
VALVE STEM
- Wheel (Tubeless tires only), used on models with 16.9 x 24 - 8 ply tires
2шт.
1
L47142
WHEEL (STEERING)
RIM - rear drive wheel, used on models with 16.9 x 28 - 8 ply tires
2шт.
2
REF
INSTRUCTION
TIRE - rear drive, used on models with 16.9 x 28 - 8 ply tires
2шт.
3
L50592
NUT
- valve stem (Tube type tires only), used on models with 16.9 x 28 - 8 ply tires
2шт.
4
A20058
VALVE STEM
- Wheel (Tubeless tires only), used on models with 16.9 x 28 - 8 ply tires
2шт.
Выбрано товаров: 17
