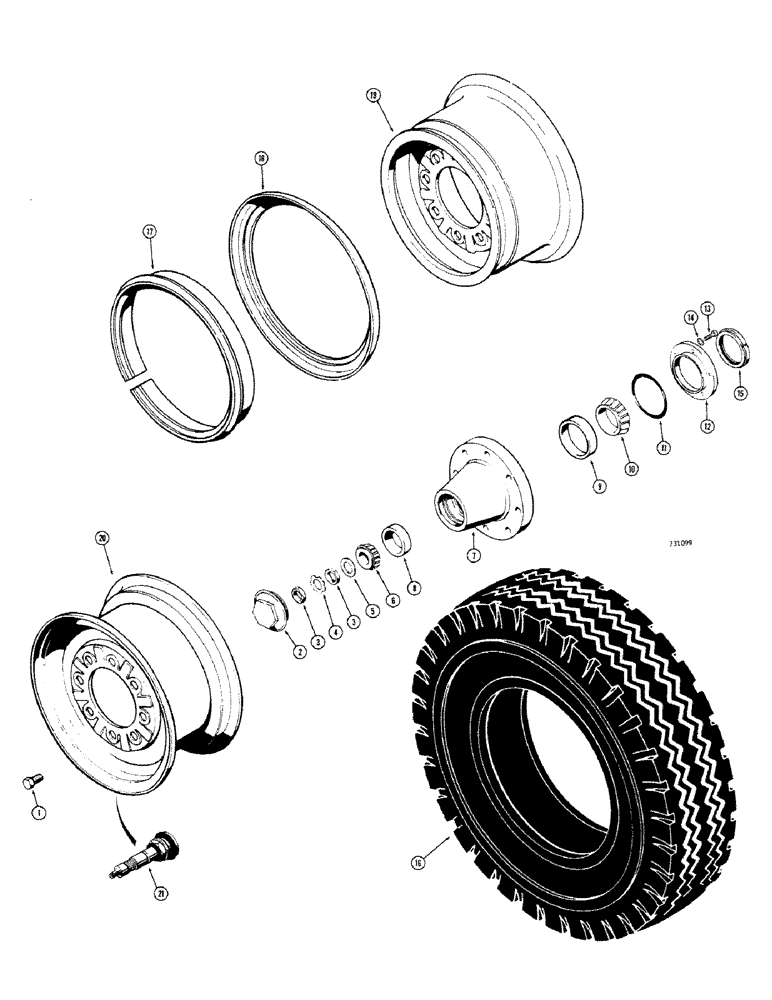

Запчасти Case 680CK (142) - FRONT STEERING WHEELS, RIM, HUB AND BEARINGS, USED ON MODELS (44) - WHEELS

1

B18264

WHEEL BOLT

, Serial Range: Wheel-hub

16шт.

2

A26011

CAP

Outer bearing, wheel

2шт.

3

25-1516

NUT,Jam, 1"-14, G5

Hex, lock

4шт.

4

A26542

LOCK WASHER

Lock, special

2шт.

5

A26681

BEARING WASHER

Thrust, outer bearing

2шт.

6

A26679

ROLLER BEARING,1.25" ID x 0.9983"

CONE, outer

2шт.

L11382

WHEEL ASSY.

HUB ASSEMBLY - front steering wheel, Includes Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

HUB - front steering wheel

1шт.

8

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP, outer

1шт.

9

A26678

BEARING CUP,3.6718" OD x 0.9375"

Bearing, inner

1шт.

10

A27301

ROLLER BEARING,2" ID x 1.193"

CONE, inner

2шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL, retainer

2шт.

12

A26992

RETAINER

Seal

2шт.

13

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

10шт.

14

193-28

LOCK WASHER,Int Tooth, 1/4"

External tooth (1/4") Shakeproof

10шт.

15

A26991

SEAL

Front steering wheel

2шт.

16

REF

INSTRUCTION

TIRE - front

2шт.

L12274

SPARE PART ASSEMBLY - front steering, used on models with 8.25 x 15 - 2 ply tires Includes: Ref. 19

2шт.

17

L30746

LOCKING RING

Used on models with 8.25 x 15 - 2 ply tires

1шт.

Ref. 17 & 18 are not part of the P/N L12274 Wheel Assembly.

1шт.

18

L30745

RING

Side, used on models with 8.25 x 15 - 2 ply tires

1шт.

19

NSS

NOT SOLD SEPARAT

RIM - wheel, front steering, used on models with 8.25 x 15 - 2 ply tires

1шт.

20

L11745

WHEEL (STEERING)

Front, used on models with 11.00 x 16 - 14 ply tires

2шт.

21

A20058

VALVE STEM

Wheel (Used with 8 ply tires), used on models with 11.00 x 16 - 14 ply tires

2шт.
