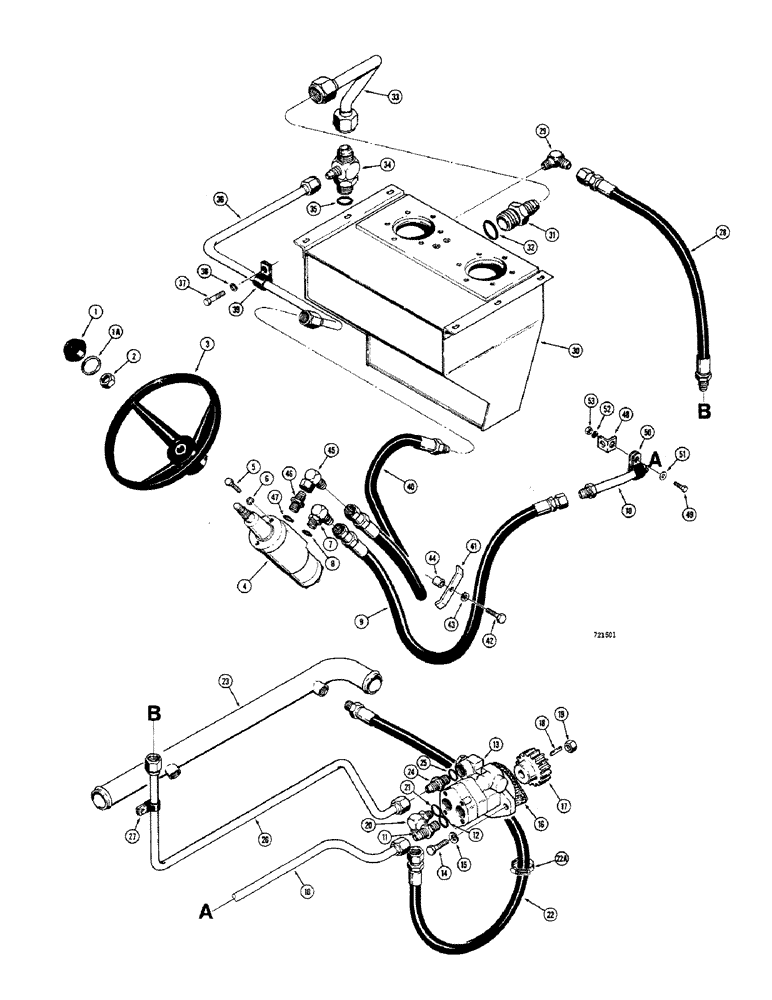

Запчасти Case 680CK (134) - STEERING HYDRAULICS, STEERING PUMPS AND RESERVOIR (41) - STEERING

1

A62210

PLUG

CAP - steering wheel

1шт.

1a

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

RETAINER - cap

1шт.

2

A14567

JAM NUT

- steering wheel to manual pump

1шт.

3

A61007

RIM

WHEEL - steering

1шт.

4

L13405

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering, manual (Parts list Figure 138)

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

6

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable, Includes: Ref. 8 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

L47501

HOSE ASSY.

HOSE - manual steering pump to power steering pump (32-1/4" long)

1шт.

10

L47497

TUBE

- pressure, manual steering pump to power steering pump (When stock is exhausted use L52575 tube)

1шт.

10

L52575

TUBE,0.62" OD

- pressure, manual steering pump to power steering pump

1шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

L17373

PUMP

- power steering (Parts list Figure 140)

1шт.

14

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x3-3/4"

2шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

16

A58617

GASKET

- pump

1шт.

17

L43703

GEAR

- pump drive

1шт.

18

L43842

KEY

- special, gear retaining

1шт.

19

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF)

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Incl. Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

L18691

HOSE ASSY.

HOSE - supply tube to power steering pump (45" long)

1шт.

22a

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

steering supply hose to tube #24, 1.06/2.00 Type F Worm

1шт.

23

L45323

TUBE - junction, suction tube to equipment pump

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

L18792

TUBE - return, power steering pump to manual steering pump 0.625" OD

1шт.

27

49885

CLAMP

- tube

1шт.

28

L18746

HOSE ASSY.

HOSE - return, power steering pump to manual steering pump (19" long)

1шт.

29

218-499

ELBOW - male, 90 degrees

1шт.

30

L47293

TANK

- hydraulic oil reservoir (See Figure 158 for related parts)

1шт.

31

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 32

1шт.

32

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

33

L46755

TUBE,1.25" OD

- return, manifold to reservoir

1шт.

34

218-5249

TEE,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- return line

1шт.

35

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

36

L47288

TUBE - return, hydraulic tank to manual steering pump

1шт.

37

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

38

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

39

NLS

NO LONGER SERVICED

- tube

1шт.

40

L47294

HOSE ASSY.

HOSE - return, hydraulic tank to manual steering pump (27" long)

1шт.

41

L17475

CLAMP - hose

1шт.

42

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

43

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

44

D34244

SPACER

- hose clamp

1шт.

45

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- swivel, 90 degrees (Replaces 219-5230)

1шт.

46

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight

1шт.

48

L16533

BRACKET - clamp mounting

1шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

50

49885

CLAMP

- tube

1шт.

51

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

52

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

53

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

47

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
