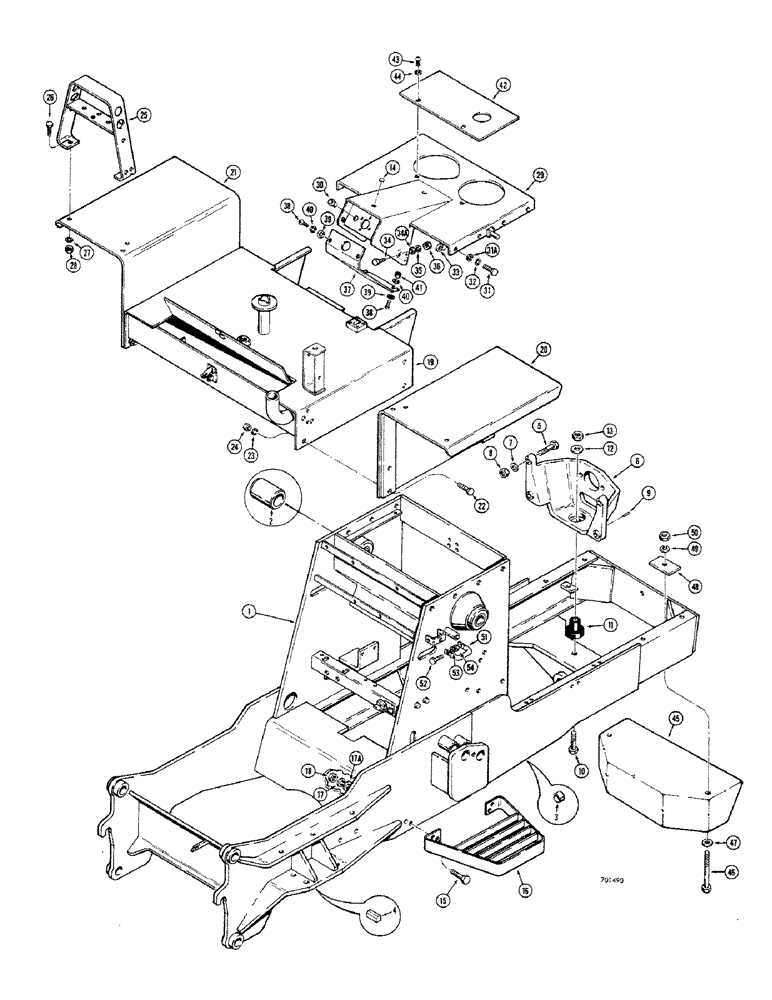

Запчасти Case 680CK (146) - CHASSIS, FENDERS AND STEPS (39) - FRAMES AND BALLASTING

1

L46228

CHASSIS ASSEMBLY - tractor (Use L51015 chassis and 8 washers), Includes: Ref. 2 and 3

1шт.

1

L51015

CHASSIS ASSEMBLY - tractor, Includes: Ref. 2 and 3

1шт.

2

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- loader lift frame to pivot bracket

2шт.

3

L46294

BUSHING

- radius rod pivot

1шт.

4

L12324

LUG - axle, Serial Range: pad-chassis

4шт.

5

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

6

L46461

BRACKET

- equipment pump and engine mounting

1шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

25-1012

NUT,3/4"-10, G5

4шт.

9

139-64

PIN,1/8" x 1 1/2", Tapered

- taper, #5 x 1-1/2"

2шт.

10

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

11

A19066

MOUNTING PARTS

MOUNT - engine, rubber

1шт.

12

195-48

WASHER,3/4" x 2 7/8" x .165"

- plain (3/4")

1шт.

13

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

14

A56527

PLUG - cowl, cockpit

2шт.

15

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

16

L13647

STEP

- cockpit entry

2шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

8шт.

17a

95-6

WASHER,3/8"

- plain () 3/8"

8шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

19

L47905

TANK ASSEMBLY - fuel

1шт.

20

L26347

FENDER - drive wheel, R.H.

1шт.

21

L26222

FENDER - drive wheel, L.H.

1шт.

22

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

8шт.

23

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

24

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

8шт.

25

L26326

BRACKET

- mounting, rear light

2шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

27

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

28

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

29

L43704

CONSOLE AND HOOD WRAPPER - tractor, Includes: Ref. 30

1шт.

30

L10962

BUSHING - console, shift lever shaft

1шт.

31

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

31a

195-33

WASHER,1/2"

- plain () 1/2"

8шт.

32

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

33

T24401

WASHER

- special

1шт.

34

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

34a

95-4

WASHER,1/4"

- plain () 1/4"

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

25-104

NUT,1/4"-20, G5

2шт.

37

L11080

COVER - access, console

1шт.

38

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

- Phillips head (1/4" - 20 NC x 3/4") zinc plated

3шт.

39

195-518

WASHER,1/4", SAE

- plain (1/4") zinc plated

3шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

42

L26406

COVER - access, hydraulic head

1шт.

43

173-241

X

SCREW - round head (5/16" - 18 NC x 1/2") zinc plated

2шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

45

L18639

COUNTERWEIGHT - front

1шт.

46

13-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

HHCS - 3/4" - 10 NC x 8"

2шт.

47

195-46

WASHER,3/4" x 1 3/4" x .148"

- plain (3/4")

2шт.

48

L18638

PLATE - counterweight mounting

2шт.

49

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

50

25-1012

NUT,3/4"-10, G5

2шт.

51

L19074

HANDLE - operator assist (If used)

2шт.

52

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

4шт.

53

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

54

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.
