Артикул
Название
Примечание
Количество
1
L33846

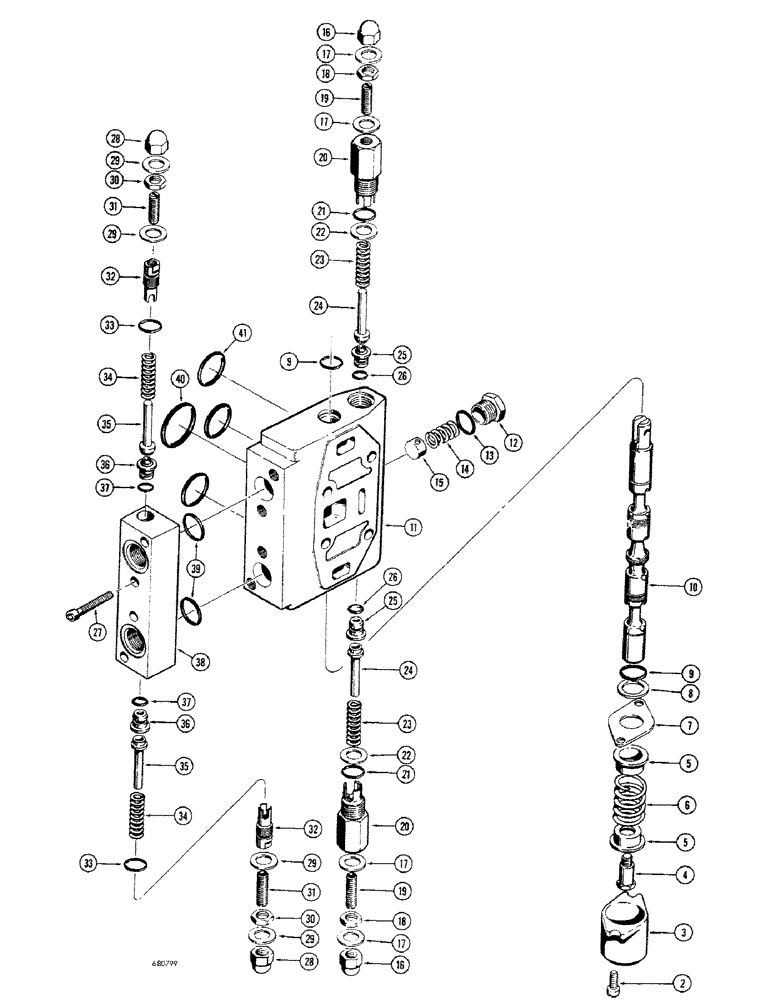

SWING SECTION - backhoe control valve, Inlcudes: Ref. 2 - 26
1шт.
2
71-512
SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"
FHMS - 5/16" - 18 NC x 3/4"
2шт.
3
D32221
COVER
CAP - swing section
1шт.
4
D32128
BOLT (SPREADER)
BOLT - stripper, special
1шт.
5
D32130
GUIDE
- spring
2шт.
6
L33849
VALVE SPRING
SPRING - centering
1шт.
7
R20556
PLATE - retaining
1шт.
8
D32215
RING
- backup
1шт.
9
D29898
RING
SEAL - quad ring
2шт.
10
NSS
NOT SOLD SEPARAT
SPOOL - swing section
1шт.
11
NSS
NOT SOLD SEPARAT
HOUSING - swing section
1шт.
12
39007
CAP
- check valve
1шт.
13
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
SEAL - "O" ring
1шт.
14
R15308
VALVE SPRING
SPRING - check valve
1шт.
15
D45694
SPOOL
POPPET - check valve
1шт.
D42866
VALVE
CARTRIDGE - secondary relief (Not preset) must be set to correct pressure when installed on valve, Inlcudes: Ref. 16 - 26
2шт.
16
129-526
CROWN NUT,Low, 3/8" - 24
- acorn (3/8" - 24 NF)
1шт.
17
23150
WASHER
GASKET - copper
2шт.
18
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex., jam (3/8" - 24 NF)
1шт.
19
D38814
ADJUSTMENT SCREW,3/8" - 24
SCREW - set, special
1шт.
20
NSS
NOT SOLD SEPARAT
BODY - cartridge
1шт.
21
D26872
O-RING
SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.
1шт.
22
D31450
WASHER
- gasket
1шт.
D42865
VALVE POPPET
KIT - seat and poppet, Inlcudes: Ref. 23 - 25
1шт.
23
NSS
NOT SOLD SEPARAT
SPRING - relief valve
1шт.
24
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
25
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
26
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)
1шт.
27
61-528
HEX SOC SCREW,5/16"-18 x 1 3/4"
SCREW - hex. socket head (5/16" - 18 NC x 1-3/4")
4шт.
D47880
LOCK VALVE
CROSSOVER BLOCK ASSEMBLY - swing section, Inlcudes: Ref. 28 - 41
1шт.
28
129-526
CROWN NUT,Low, 3/8" - 24
- acorn (3/8" - 24 NF)
2шт.
29
23150
WASHER
GASKET - copper
4шт.
30
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex., jam (3/8" - 24 NF)
2шт.
31
D40776
SCREW
- set, special
2шт.
32
D40777
BODY - relief valve
2шт.
33
A30097
O-RING,0.549" ID x 0.755" OD x 0.103"
SEAL - "O" ring, 9/16" I.D. x 3/4" O.D.
2шт.
D42865
VALVE POPPET
KIT - seat and poppet, Inlcudes: Ref. 34 - 39
2шт.
34
NSS
NOT SOLD SEPARAT
SPRING - relief valve
1шт.
35
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
36
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
37
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)
1шт.
38
NSS
NOT SOLD SEPARAT
HOUSING - crossover
1шт.
39
A7623
O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro
SEAL - "O" ring, 1" I.D. x 1-1/4" O.D.
2шт.
40
D32127
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Standard 70 durometer)
1шт.
40
L46406
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Optional 90 durometer)
1шт.
41
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Standard 70 durometer)
3шт.
41
L46405
O-RING
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Optional 90 durometer)
3шт.
Выбрано товаров: 47
