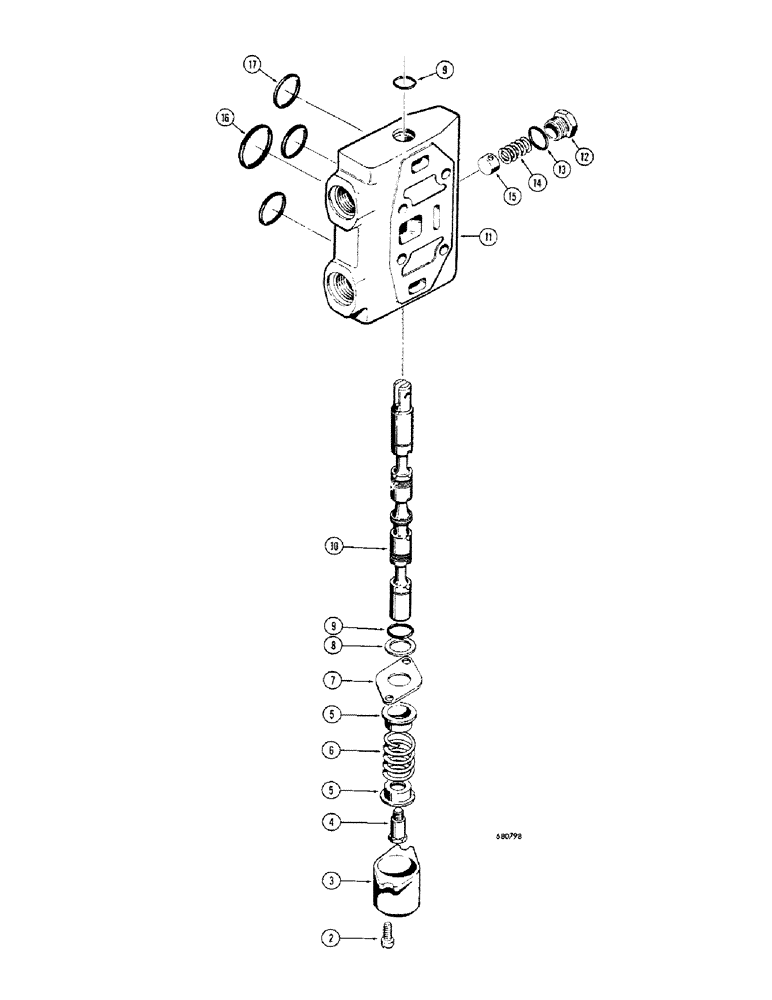

Запчасти Case 680CK (372) - BACKHOE CONTROL VALVE, L33845 STABILIZER SECTION (35) - HYDRAULIC SYSTEMS

1

L33845

STABILIZER SECTION - backhoe control valve, Inlcudes: Ref. 2 - 17

2шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS - 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

CAP - stabilizer section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper, special

1шт.

5

D32130

GUIDE

- spring

2шт.

6

L33849

VALVE SPRING

SPRING - centering

1шт.

7

R20556

PLATE - retaining

1шт.

8

D32215

RING

- backup

1шт.

9

D29898

RING

SEAL - quad ring

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - stabilizer section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - stabilizer section

1шт.

12

39007

CAP

- check valve

1шт.

13

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring

1шт.

14

R15308

VALVE SPRING

SPRING - check valve

1шт.

15

D45694

SPOOL

POPPET - check valve

1шт.

16

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Standard 70 durometer)

1шт.

16

D46406

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Optional 90 durometer)

1шт.

17

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Standard 70 durometer)

3шт.

17

L46405

O-RING

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Optional 90 durometer)

3шт.
