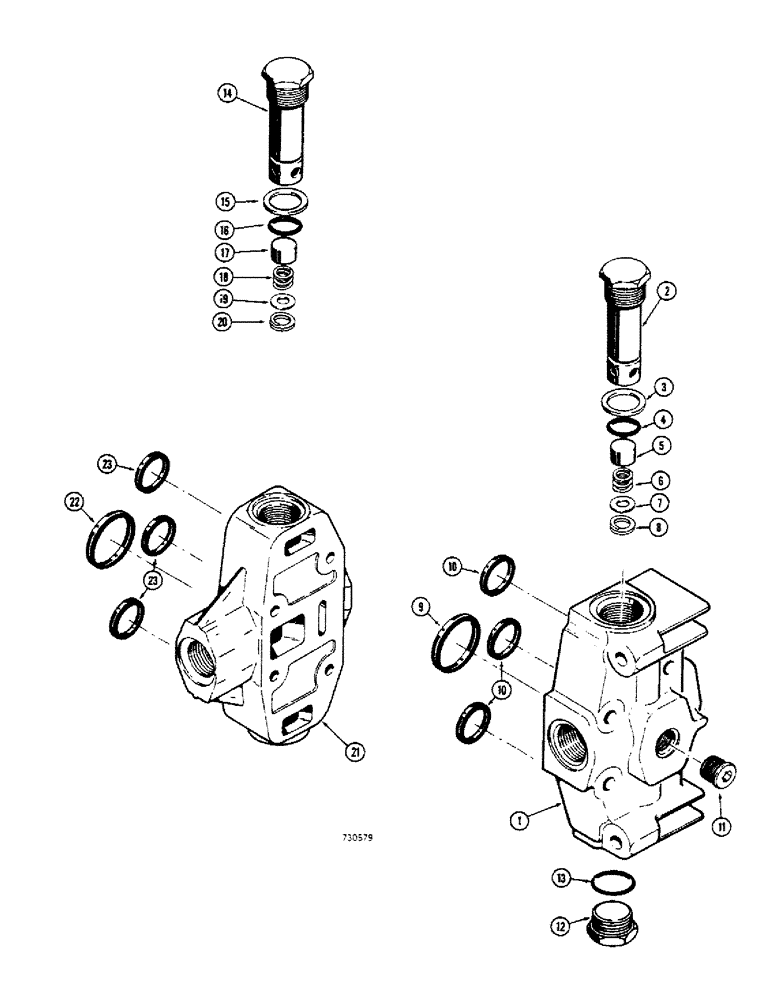

Запчасти Case 680CK (370) - BACKHOE CONTROL VALVE, L35520 END INLET SECTION, L35521 (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
L35520
X
INLET SECTION - backhoe control valve, end, Inlcudes: Ref. 1 - 13
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - inlet section
1шт.
D40775
VALVE
ASSEMBLY - check, Inlcudes: Ref. 2 - 8
1шт.
2
D40819
CARTRIDGE - check valve
1шт.
3
D40822
WASHER
GASKET - cartridge
1-2шт.
4
D31413
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
SEAL - "O" ring
1шт.
5
D40820
POPPET - check valve
1шт.
6
D26826
COMPRESSION SPRING
SPRING - check valve
1шт.
7
D40821
RETAINER
- spring
1шт.
8
R15512
SNAP RING,#87, .929", Int, Spiral
RING - spirolox
1шт.
9
L32985
GASKET
- square section, 1-13/16" I.D. x 2" O.D.
1шт.
10
CASL35522
SEAL
- square section, 1-9/16" I.D. x 1-3/4" O.D.
3шт.
11
221-845
PLUG,Hex Soc, 3/4"-14
- pipe, hex. socket head (3/4" NPT)
1шт.
12
273916
PLUG,Hex, 1-5/16" - 12 ORB
Valve body, Includes Ref. 13 Hex Hd, 1 5/16"-12 ORB
1шт.
13
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
L35521
INLET SECTION - center, backhoe control valve, Inlcudes: Ref. 14 - 23
1шт.
D40775
VALVE
ASSEMBLY - check, center inlet section, Inlcudes: Ref. 14 - 23
1шт.
14
D40819
CARTRIDGE - check valve, center inlet section
1шт.
15
D40822
WASHER
GASKET - cartridge, center inlet section
1шт.
16
D31413
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
SEAL - "O" ring, center inlet section
1шт.
17
D40820
POPPET - check valve, center inlet section
1шт.
18
D26826
COMPRESSION SPRING
SPRING - check valve, center inlet section
1шт.
19
D40821
RETAINER
- spring, center inlet section
1шт.
20
R15512
SNAP RING,#87, .929", Int, Spiral
RING - spirolox, center inlet section
1шт.
21
NSS
NOT SOLD SEPARAT
HOUSING - inlet section, secondary, center inlet section
1шт.
22
L32985
GASKET
- square section, 1-13/16" I.D. x 2" O.D., center inlet section
1шт.
23
CASL35522
SEAL
- square section, 1-9/16" I.D. x 1-3/4" O.D., center inlet section
3шт.
Выбрано товаров: 27
