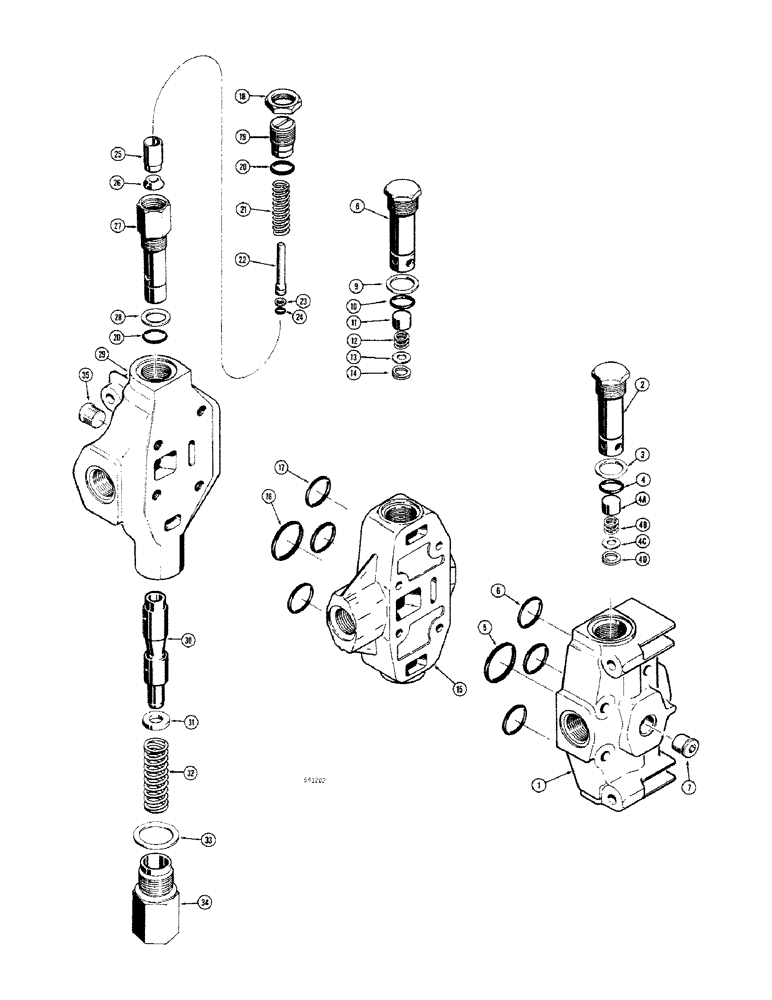

Запчасти Case 680CK (368) - BACKHOE CONTROL VALVE, L32692 END INLET SECTION, D47621 (35) - HYDRAULIC SYSTEMS

L32692

NUT

INLET SECTION - backhoe control valve, Inlcudes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

D40775

VALVE

ASSEMBLY - check, Includes: Ref.2 - 4D

1шт.

2

D40819

CARTRIDGE - check valve

1шт.

3

D40822

WASHER

GASKET - cartridge

1-2шт.

4

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

4a

D40820

POPPET - check valve

1шт.

4b

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

4c

D40821

RETAINER

- spring

1шт.

4d

R15512

SNAP RING,#87, .929", Int, Spiral

RING - spirolox

1шт.

5

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D.

1шт.

6

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.

7

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, hex. socket head (3/4" NPT)

1шт.

D47621

X

INLET SECTION - secondary, backhoe control valve, center, Inlcudes: Ref. 8 - 17

1шт.

D40775

VALVE

ASSEMBLY - check, center inlet section, Inlcudes: Ref. 8 - 14

1шт.

8

D40819

CARTRIDGE - check valve, center inlet section

1шт.

9

D40822

WASHER

GASKET - cartridge, center inlet section

1шт.

10

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring, center inlet section

1шт.

11

D40820

POPPET - check valve, center inlet section

1шт.

12

D26826

COMPRESSION SPRING

SPRING - check valve, center inlet section

1шт.

13

D40821

RETAINER

- spring, center inlet section

1шт.

14

R15512

SNAP RING,#87, .929", Int, Spiral

RING - spirolox, center inlet section

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - inlet section, secondary, section

1шт.

16

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Standard 70 durometer), center inlet section

1шт.

16

L46406

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Optional 90 durometer), center inlet section

1шт.

17

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Standard 70 durometer), center inlet section

3шт.

17

L46405

O-RING

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Optional 90 durometer), center inlet section

3шт.

D47623

VALVE BLOCK

OUTLET SECTION - backhoe control valve, outlet section, Inlcudes: Ref. 18 - 35

1шт.

D32126

FILTER

CARTRIDGE - relief, outlet section, Inlcudes: Ref. 18 - 28

1шт.

18

R12507

LOCK NUT

- lock, adjusting screw, outlet section

1шт.

19

R21364

SCREW

- spring adjusting, outlet section

1шт.

20

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring, outlet section

2шт.

21

D32476

SPRING

- compression, outlet section

1шт.

22

R16125

PLUNGER

- displacement, outlet section

1шт.

23

R12509

RING

- backup, outlet section

1шт.

24

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, outlet section

1шт.

25

R12510

SEAT

- floating, outlet section

1шт.

26

R16123

WASHER, THRUST

SNUBBER - check valve, outlet section

1шт.

27

D39700

KIT

SHELL ASSEMBLY - cartridge, outlet section

1шт.

28

D40822

WASHER

- gasket, outlet section

1шт.

29

NSS

NOT SOLD SEPARAT

HOUSING - outlet section

1шт.

30

D40827

SPOOL - regeneration, outlet section

1шт.

31

D36807

SPACER

- spool, outlet section

1шт.

32

D36600

VALVE SPRING

SPRING - spool, outlet section

1шт.

33

D40759

GASKET

- cap, outlet section

1шт.

34

D47666

CYLINDER END CAP

CAP - outlet section

1шт.

35

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, hex. socket head (3/4" NPT), outlet section

1шт.
