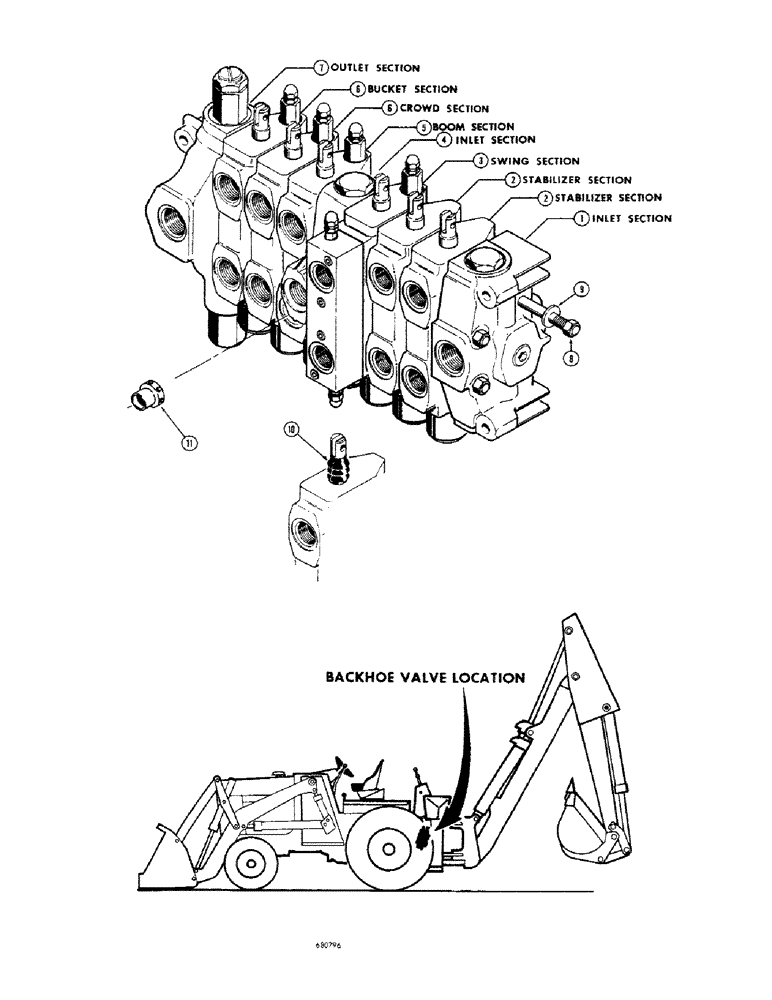

Запчасти Case 680CK (364) - L42904 AND L51049 BACKHOE CONTROL VALVES, (BEFORE TRACTOR (35) - HYDRAULIC SYSTEMS

L42904

VALVE

- backhoe control (When stock is echausted, use L51049 valve), Inlcudes: Ref. 1 - 9

1шт.

L51049

LOCK VALVE

VALVE - backhoe control, Inlcudes: Ref. 1 - 9

1шт.

1

L32692

NUT

INLET SECTION - end, backhoe control valve (Parts list Figure 368)

1шт.

2

L33845

STABILIZER SECTION - backhoe control valve (Parts list Figure 372)

2шт.

3

L33846

SWING SECTION - backhoe control valve (Parts list Figure 374)

1шт.

4

D47621

X

INLET SECTION - center, backhoe control valve (Parts list Figure 368)

1шт.

5

D47624

SPARE PART

BOOM SECTION - backhoe control valve (Parts list Figure 378) when stock is exhausted, order L33847 for service

1шт.

5

L33847

BOOM

SECTION - backhoe control valve (Parts list Figure 378)

1шт.

6

D47622

BUCKET AND CROWD SECTION - backhoe control valve (Parts list page 346) when stock is exhausted, order L33848 for service

2шт.

6

L33848

BUCKET AND CROWD SECTION - backhoe control valve (Parts list Figure 376)

2шт.

7

D47623

VALVE BLOCK

OUTLET SECTION - backhoe valve (Parts list Figure 368)

1шт.

8

D47627

STUD ASSEMBLY - backhoe control valve

4шт.

9

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

10

D46952

BELLOWS

- valve spool

6шт.

11

D47881

RESTRICTOR - boom drop, boom section only

1шт.
