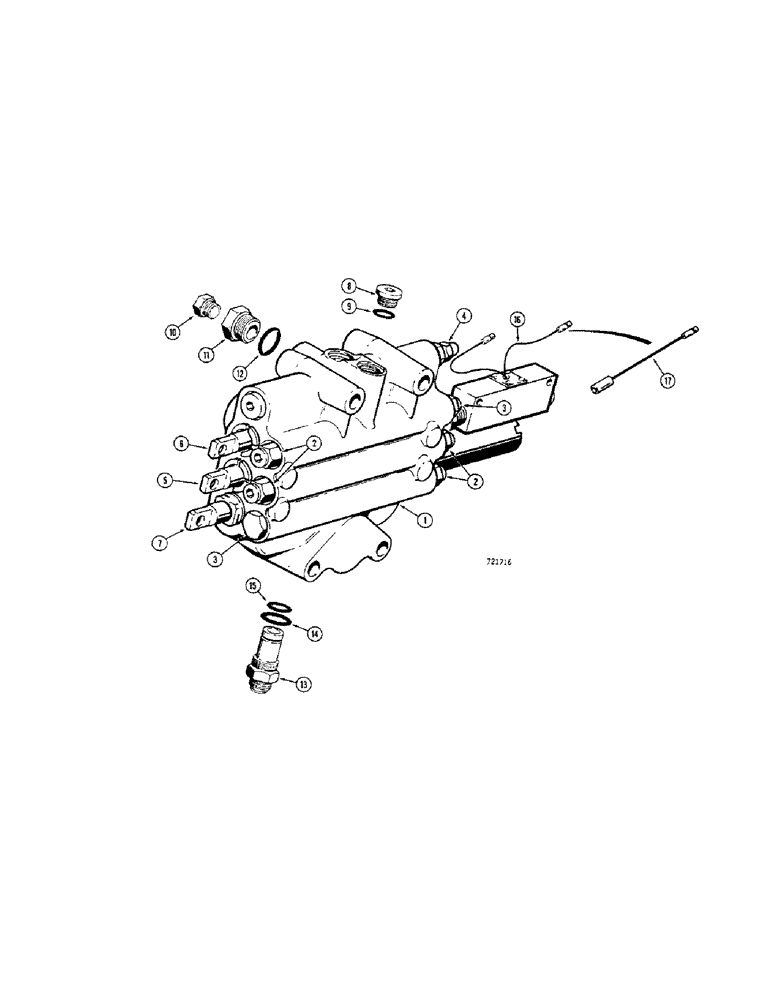

Запчасти Case 680CK (352[1]) - L52725 LOADER CONTROL VALVE - 3 SPOOL TRACTOR SER. NO. 9106567 AND AFTER ALSO SER. NO. 9106556 AND 9106565 (35) - HYDRAULIC SYSTEMS

1

L52725

VALVE

- loader control, 3 spool, Includes: Ref. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - secondary relief (Parts list Figure 362 & 362 (1))

4шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Figure 362 & 362 (1))

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 360 & 360 (1))

1шт.

5

L35090

SPOOL

- tilt with magnetic detent (Parts list Figure 356)

1шт.

6

D37050

SPOOL

- clam, without magnetic detent (Parts list Figure 360)

1шт.

7

L32150

SPOOL

- lift (Parts list Figure 354), Inlcudes: Ref. 8

1шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port Hex Soc, 3/4"-16 ORB

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.

10

L30683

X

PLUG - pressure check adapter, Inlcudes: Ref. 11

1шт.

11

D38825

ADAPTER

- pressure check

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, adapter, Inlcudes: Ref. 13 and 14

1шт.

13

L30446

FITTING

CONNECTOR - power beyond

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, connector (Large)

1шт.

15

L32680

RING

SEAL - "O" ring, connector (Small)

1шт.

16

L50858

CONNECTOR - electrical, magnetic detent

1шт.

L50858 never used

1шт.

17

L52720

ELECTRICAL WIRE

CONNECTOR AND WIRE - harness

2шт.
