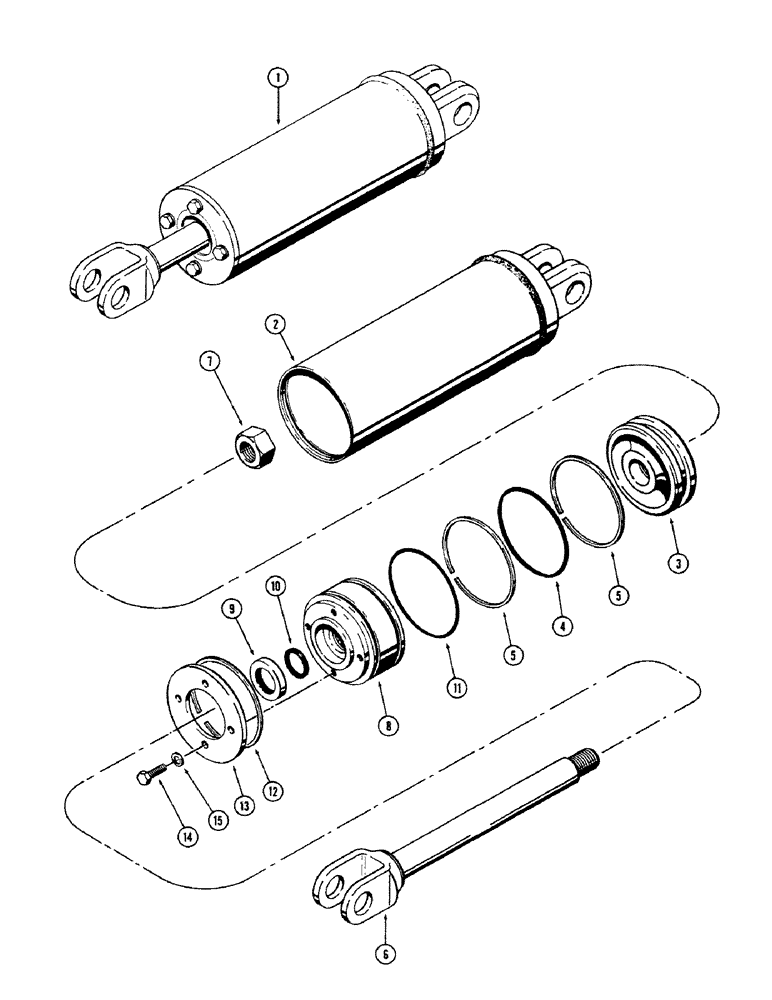

Запчасти Case 680CK (348) - A23530 3-PT. HITCH LIFT CYLINDER, 4" DIA. CYLINDER WITH 7" STROKE (35) - HYDRAULIC SYSTEMS

1

A23530

CYLINDER

ASSY. - lift, Inlcudes: Ref. 2 - 15

1шт.

2

A23533

TUBE - cylinder body

1шт.

3

A23534

PISTON - cylinder

1шт.

4

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston (3-5/8 x 4 x 3/16")

1шт.

Part of packing kit cylinder repair P/N A24417

1шт.

5

A23535

OIL SEAL

RING - piston "O" ring back-up

2шт.

Part of packing kit cylinder repair P/N A24417

1шт.

6

A23540

ROD - piston (1-1/8" dia.)

1шт.

7

131-369

LOCK NUT,7/8"-14, GA

NUT - piston to rod (7/8" N.C. hex.)

1шт.

Part of packing kit cylinder repair P/N A24417

1шт.

8

A11248

HEAD

GLAND - cylinder

1шт.

9

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL - oil, piston rod, outer (1-1/8 x 1-7/8 x 1/4")

1шт.

Part of packing kit cylinder repair P/N A24417

1шт.

10

A11251

SEALING RING

RING - quad, piston rod seal, inner (1-1/8 x 1-3/8 x 1/8")

1шт.

Part of packing kit cylinder repair P/N A24417

1шт.

11

A23536

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - gland (3-3/4 x 4 x 1/8")

1шт.

Part of packing kit cylinder repair P/N A24417

1шт.

12

A30896

RING

- gland stop

1шт.

Part of packing kit cylinder repair P/N A24417

1шт.

13

A11249

PLATE - gland retaining

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Plate to gland Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

A24417

SEAL KIT

PACKING KIT - cylinder repair, Incl. Refs. 4, 5, 7, 9, 10, 11 and 12

1шт.
