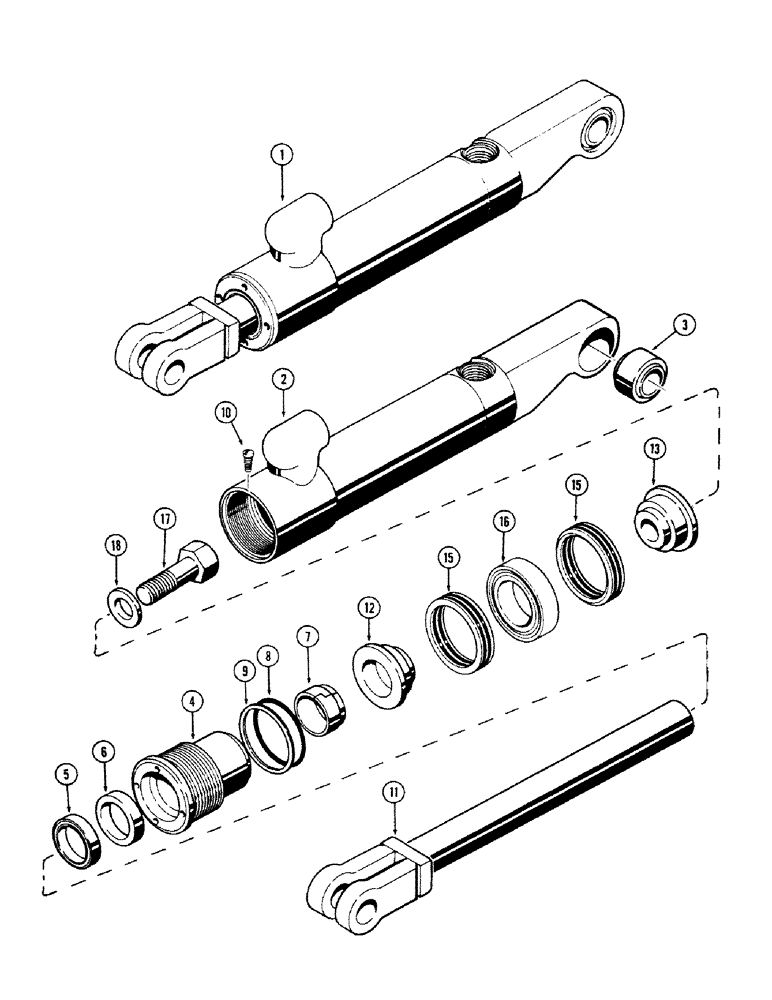

Запчасти Case 680CK (342) - G32368 3-PT. HITCH TILT CYLINDER, 2-1/2" DIA. CYLINDER WITH 6" STROKE (35) - HYDRAULIC SYSTEMS

1

G32368

CYLINDER ASSY. - tilt, Includes: Ref. 2 - 18

1шт.

2

G32375

TUBE ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

G32379

BEARING

BUSHING - cylinder tube

1шт.

G32733

GLAND

ASSY., Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston, rod, outer, 1-1/2 x 2 x 5/16"

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

6

D36969

CUP

SEAL piston rod 1-1/2 x 2 x 13/32"

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

11

G32370

ROD ASSY.

- piston

1шт.

12

D28363

PISTON

- split (Rod end)

1шт.

13

D28364

PISTON

- split (Bolt end)

1шт.

G33193

PACKING

ASSY. - piston, Inlcudes: Ref. 15 and 16

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

G32294

SEAL

KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 9 and G33193

1шт.
