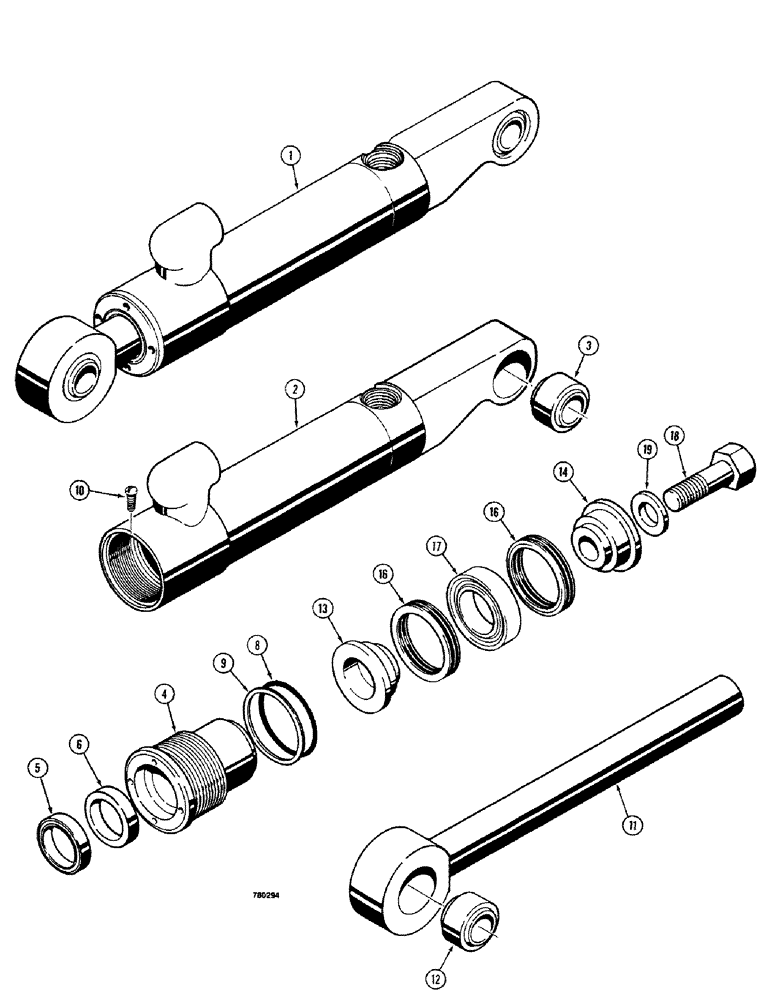

Запчасти Case 680CK (338) - G33739 3-PT. HITCH PITCH CYLINDER, 2-1/2" DIA. CYL. WITH CYL. W/ 6 STROKE, INNER ROD WIPER NOT USED (35) - HYDRAULIC SYSTEMS

1

G33739

CYLINDER

ASSEMBLY - pitch, Includes: Ref. 2 - 19

1шт.

2

G32375

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G32379

BEARING

BUSHING - cylinder tube

1шт.

G33487

GLAND

ASSEMBLY, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part of Seal Kit P/N G32294

1шт.

6

D36969

CUP

SEAL cup, piston rod

1шт.

Part of Seal Kit P/N G32294

1шт.

7

D27706

WIPER SEAL

WIPER piston rod, inner, not used, not shown

1шт.

Part of Seal Kit P/N G32294

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G32294

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Kit P/N G32294

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

11

G33740

ROD ASSY.

ROD ASSEMBLY - piston, 1-1/2" (38 MM) O.D., Inlcudes: Ref. 12

1шт.

12

G32379

BEARING

BUSHING - piston rod

1шт.

13

D28363

PISTON

- split, rod end

1шт.

14

D28364

PISTON

- split, bolt end

1шт.

G33193

PACKING

ASSEMBLY, piston, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G32294

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NC x 2-1/2", grade 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G32294

SEAL

KIT, Includes: Refs. 5, 6, 7, 8, 9 and G33193

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
