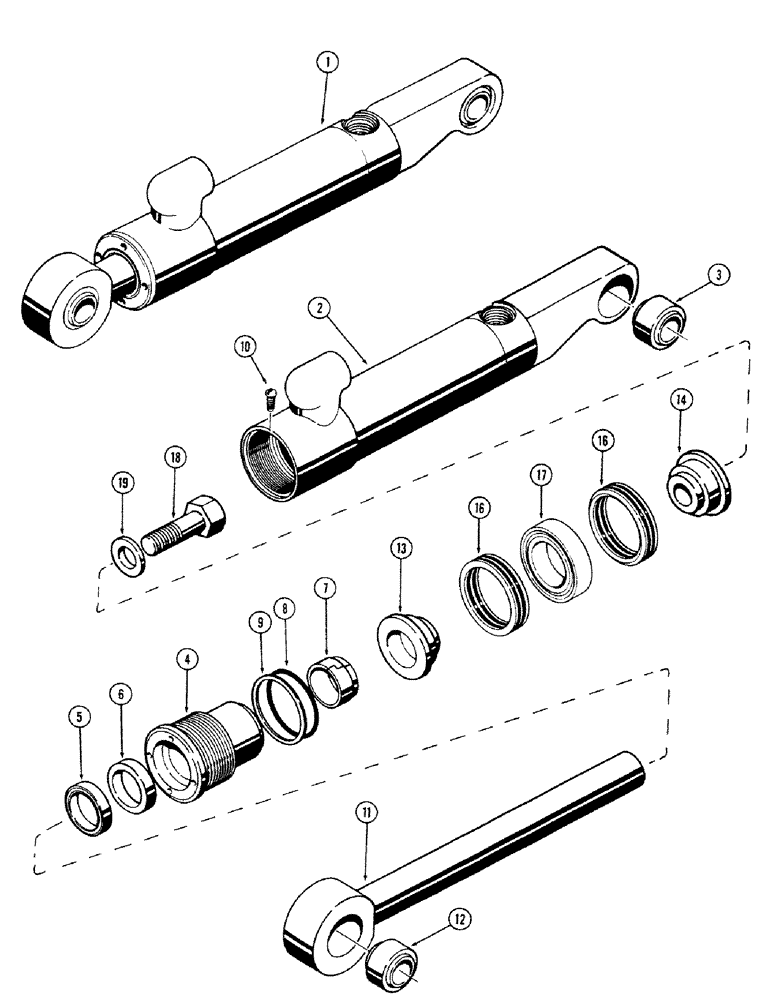

Запчасти Case 680CK (336) - G32369 3-PT. HITCH PITCH CYLINDER, 2-1/2" DIA. CYLINDER WITH 6" STROKE (35) - HYDRAULIC SYSTEMS

1

G32369

CYLINDER

ASSY. - pitch

1шт.

2

G32375

TUBE ASSY. - cylinder

1шт.

3

G32379

BEARING

BUSHING - cylinder tube

1шт.

G32733

GLAND

ASSY.

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

11

G32380

ROD

ASSY. - piston (1-1/2" dia.)

1шт.

12

G32379

BEARING

BUSHING -piston rod

1шт.

13

D28363

PISTON

- split (Rod end)

1шт.

14

D28364

PISTON

- split (Bolt end)

1шт.

G33193

PACKING

ASSY. - piston

1шт.

Part of seal kit cylinder repair P/N G32294

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

G32294

SEAL

KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 9 and G33193

1шт.
