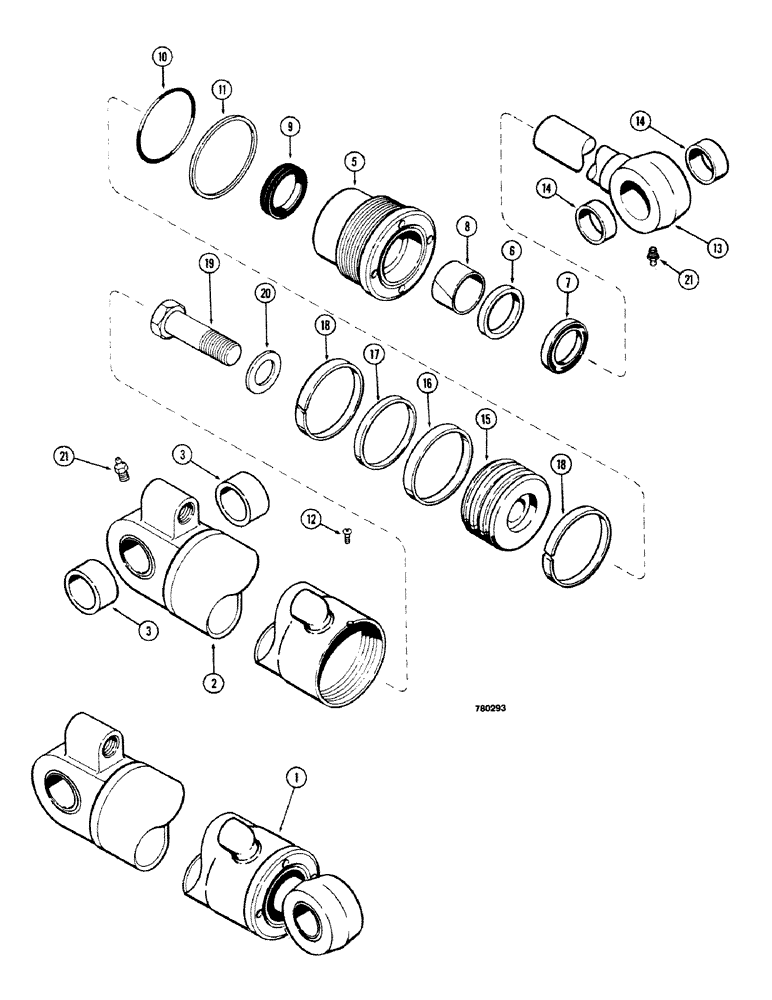

Запчасти Case 680CK (334) - G102518 BACKHOE CYLINDER, 4" DIA. CYLINDER WITH 27-1/4" STROKE WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G102518

JACK BODY

CYLINDER - bucket, Includes: Ref. 2 - 21

1шт.

2

G33835

TUBE

ASSEMBLY - cylinder

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G34635

GLAND

ASSEMBLY - cylinder, Inlcudes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit P/N G101299

1шт.

8

G34620

BUSHING

BEARING - center

1шт.

Part of Seal Kit P/N G101299

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod

1шт.

Part of Seal Kit P/N G101299

1шт.

Service option - extreme hot or cold

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G101299

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit P/N G101299

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

13

G34002

ROD

ASSEMBLY - piston, 2-1/4" (57 MM) O.D., Includes: Ref. 14

1шт.

14

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

15

G100686

PISTON

- cylinder

1шт.

16

G100439

SEAL,98mm ID x 102.6mm OD x 6.8mm Thk

- piston

1шт.

Part of Seal Kit P/N G101299

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup

1шт.

Part of Seal Kit P/N G101299

1шт.

18

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N G101299

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G101299

SEAL KIT

KIT seal, Includes: Refs. 7, 8, 9, 10, 11, 16, 17 and 18

1шт.

G100779

SEAL

- piston rod, service option - extreme heat or cold

1шт.
