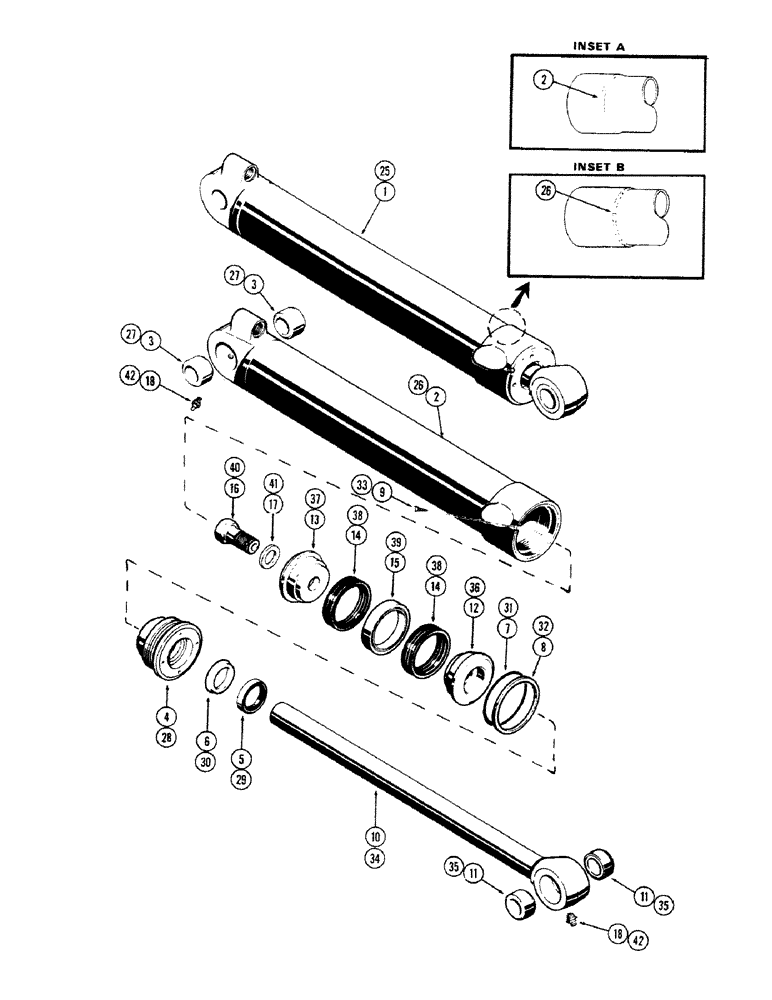

Запчасти Case 680CK (332) - G33834 BACKHOE BUCKET CYLINDER, 4" DIA. CYLINDER WITH 27-1/4 (35) - HYDRAULIC SYSTEMS

1

G33834

CYLINDER

ASSY. - bucket, Includes: Ref. 2 - 18

1шт.

2

G33835

TUBE

ASSY. - cylinder (Swaged) (See inset A)

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

D49500

GLAND

ASSY. - w/bushing

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G32697

1шт.

6

D39359

RUBBER SEAL

SEAL - piston rod (2-1/4 x 2-3/4 x 13/32")

1шт.

Part of seal kit cylinder repair P/N G32697

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32697

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of seal kit cylinder repair P/N G32697

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8 - 32 x 1/4" self tapping)

1шт.

10

D38957

PISTON ROD

ROD ASSY. - piston (2-1/4" dia.), Includes: Ref. 11

1шт.

11

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

12

D49168

PISTON

- split (Rod end)

1шт.

13

D46930

PISTON

- split (Bolt end)

1шт.

14

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

Part of seal kit cylinder repair P/N G32697

1шт.

15

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

16

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

17

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

25

G32687

CYLINDER

ASSY. - bucket (Replaces D49524), G32687 backhoe bucket with ring weldment type tube used prior to backhoe ser. no. 9108231, Inlcudes: Ref. 26 - 41

1шт.

26

D43351

CYLINDER

TUBE ASSY. - cylinder (Ring welded) (See inset B), G32687 backhoe bucket with ring weldment type tube used prior to backhoe ser. no. 9108231, Inlcudes: Ref. 27

1шт.

27

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube, G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

2шт.

28

D49500

GLAND

ASSY. - w/bushing, G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

29

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16"), G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

Part of seal kit cylinder repair P/N G32697

1шт.

30

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 13/32"), G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

Part of seal kit cylinder repair P/N G32697

1шт.

31

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8"), G32687 backhoe bucket cylinder with weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

32

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring , G32687 Backhoe bucket cylinder with weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

Part of seal kit cylinder repair P/N G32697

1шт.

33

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

34

D38957

PISTON ROD

ROD ASSY. - piston (2-1/4" dia.), G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231, Inlcudes: Ref. 35

1шт.

35

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod, G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

2шт.

36

D49168

PISTON

- split (Rod end) (Replaces D38958), G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

37

D46930

PISTON

- split (Bolt end) (Replaces D28370), G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

38

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type), G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

2шт.

Part of seal kit cylinder repair P/N G32697

1шт.

39

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

ROD ASSEMBLY - piston, 2-1/4" (57 MM) O.D., G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod, Inlcudes: Ref. 31

1шт.

40

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston, G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

41

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64"), G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

2шт.

G32697

SEAL

KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 14, 29, 30, 32 and 38, G32687 backhoe bucket cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108231

1шт.
