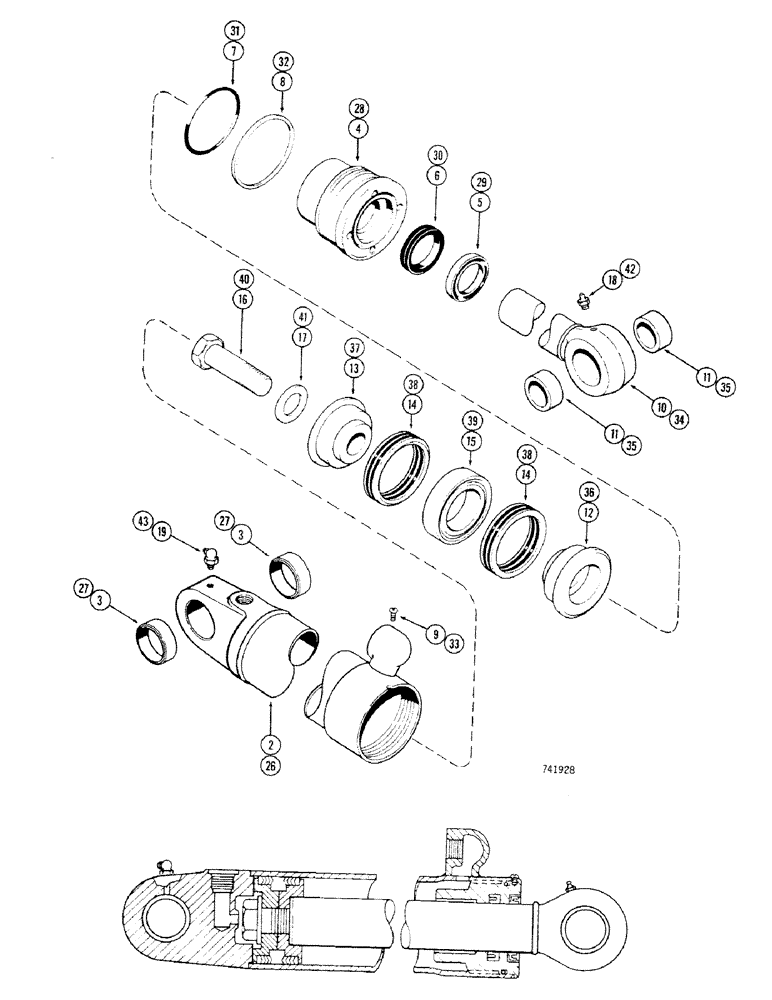

Запчасти Case 680CK (330) - G34323 BACKHOE DIPPER CYL., 4-1/2" DIA. CYL. WITH 40-1/8" STROKE & 2 1/2" DIA. PISTON ROD, GLAND W/ (35) - HYDRAULIC SYSTEMS

G34323

CYLINDER ASSEMBLY - dipper, Inlcudes: Ref. 2 - 19

1шт.

2

G34256

TUBE,49.56" L

ASSEMBLY - cylinder, Inlcudes: Ref. 2 and 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

G32741

GLAND

ASSEMBLY - cylinder, Inlcudes: Ref. 5 - 8

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER piston rod, outer

1шт.

Part of Seal Kit P/N G32567

1шт.

6

D45571

ROD

SEAL rod, piston

1шт.

Part of Seal Kit P/N G32567

1шт.

Service option - extreme heat or cold

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G32567

1шт.

8

G32284

BACK-UP RING

backup

1шт.

Part of Seal Kit P/N G32567

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC 1/4"

1шт.

10

G34324

ROD

ASSEMBLY - piston, 2-1/2" (64 MM) O.D., Includes: Ref. 11

1шт.

11

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

12

D49163

PISTON

- split, rod end

1шт.

13

D46931

PISTON

- split, bolt end

1шт.

14

D47205

PACKING

ASSEMBLY, piston, "V" type

2шт.

Part of Seal Kit P/N G32567

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

16

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

17

G32351

WASHER

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G32567

SEAL

KIT - Includes: Refs. 5, 6, 7, 8 and 14

1шт.

G100780

SEAL

- piston rod, service option - extreme heat or cold

1шт.

G34255

CYLINDER ASSEMBLY - dipper, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod, Includes: Ref. 22 - 39

1шт.

22

G34256

TUBE,49.56" L

ASSEMBLY - cylinder, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod, Includes: Ref. 23

1шт.

23

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

2шт.

24

G32731

GLAND

ASSEMBLY - cylinder, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod, Includes: Ref. 25 - 28

1шт.

25

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER piston rod, outer, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

Part of Seal Kit P/N G34628

1шт.

26

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

cup, piston rod, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

Part of Seal Kit P/N G34628

1шт.

Service option - extreme heat or cold

1шт.

27

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

gland, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

Part of Seal Kit P/N G34628

1шт.

28

G32284

BACK-UP RING

backup, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

Part of Seal Kit P/N G34628

1шт.

29

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4", G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

30

D44659

ROD

ASSEMBLY - piston, 2-1/4" (57 MM) O.D., G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod, Inlcudes: Ref. 31

1шт.

31

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

2шт.

32

D46425

PISTON

- split, rod end, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

33

D46931

PISTON

split, bolt end, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

34

D47205

PACKING

ASSEMBLY piston, "V" type, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

2шт.

Part of Seal Kit P/N G34628

1шт.

35

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

36

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

37

G32351

WASHER

- hardened, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

39

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod 90º, 1/8" NPT x .84" lg

1шт.

G34628

SEAL

KIT - Includes: Refs. 25, 26, 27, 28 and 34, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.

G100779

SEAL

- piston rod, service option - extreme heat or cold, G34255 backhoe dipper cylinder 4-1/2" dia. cly. with 40-1/8" stroke & 2-1/4" dia. piston rod

1шт.
