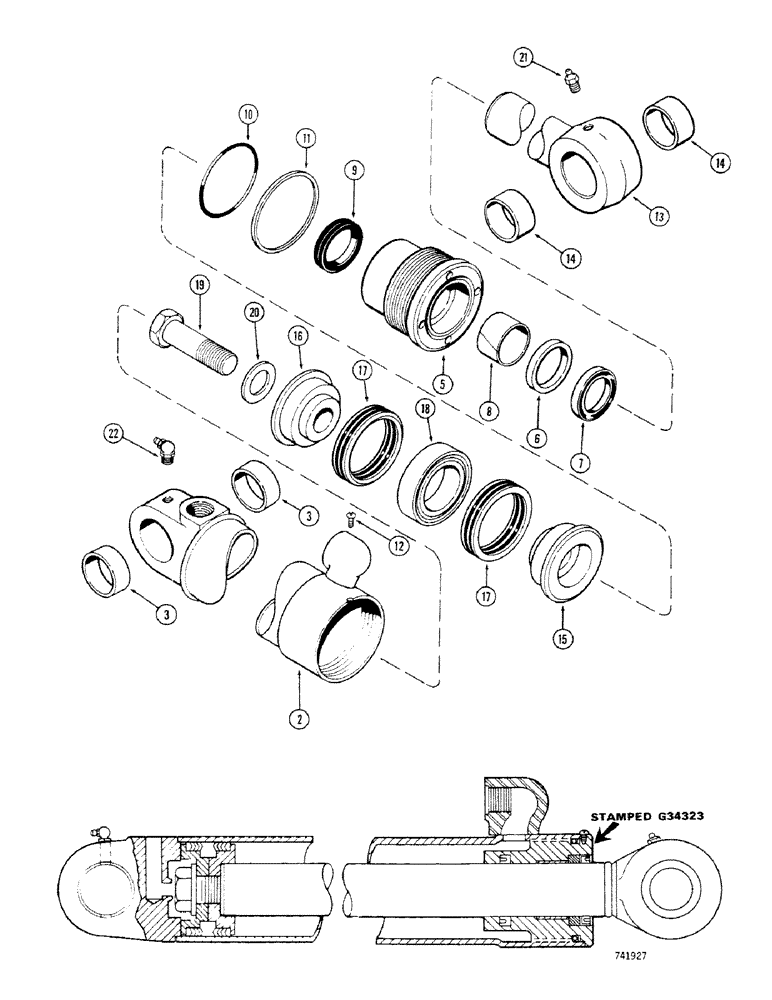

Запчасти Case 680CK (328) - G34323 BACKHOE DIPPER CYLINDER, 4-1/2" DIA. CYLINDER WITH 40 1/8" STROKE GLAND W/ CENTER BEARING (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
G34323
CYLINDER ASSEMBLY - dipper, stamped G34323 on gland, Includes: Ref. 2 - 20
1шт.
2
G34256
TUBE,49.56" L
ASSEMBLY - cylinder, Includes: Ref. 3
1шт.
3
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- tube
2шт.
G34329
GLAND
ASSEMBLY - cylinder, Includes: Ref. 5 - 11
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
6
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
7
D95146
WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk
WIPER piston rod, outer
1шт.
Part of seal kit P/N G34333
1шт.
See Figure 330 for cylinder without center bearing.
1шт.
8
G34307
BEARINGpiston rod, center
1шт.
Part of seal kit P/N G34333
1шт.
See Figure 330 for cylinder without center bearing.
1шт.
9
D45571
ROD
SEAL - piston rod
1шт.
Part of seal kit P/N G34333
1шт.
See Figure 330 for cylinder without center bearing.
1шт.
10
A23316
O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro
O_RING gland
1шт.
Part of seal kit P/N G34333
1шт.
See Figure 330 for cylinder without center bearing.
1шт.
11
G32284
BACK-UP RING
backup
1шт.
Part of seal kit P/N G34333
1шт.
See Figure 330 for cylinder without center bearing.
1шт.
12
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self tapping, #8 - 32 x 1/4"
1шт.
13
G34324
ROD
ASSEMBLY - piston, 2-1/2" (64 MM) O.D., Includes: Ref. 14
1шт.
14
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- piston rod
2шт.
15
D49163
PISTON
split, rod end
1шт.
16
D46931
PISTON
SPLIT, bolt end
1шт.
17
D47205
PACKING
ASSEMBLY piston, "V" type
2шт.
Part of seal kit P/N G34333
1шт.
See Figure 330 for cylinder without center bearing.
1шт.
18
D47210
BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk
RING - center bearing
1шт.
19
28-2044
BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8
- 1/4"-12 NF x 2", G8
1шт.
20
G32351
WASHER
- hardened
1шт.
21
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT, Inlcudes: Ref. 22
1шт.
22
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
G34333
SEAL
KIT seal, Includes: Refs. 7, 8, 9, 10, 11 and 17
1шт.
See Figure 330 for cylinder without center bearing.
1шт.
G100780
SEAL
piston rod, service option - extreme heat or cold
1шт.
See Figure 330 for cylinder without center bearing.
1шт.
