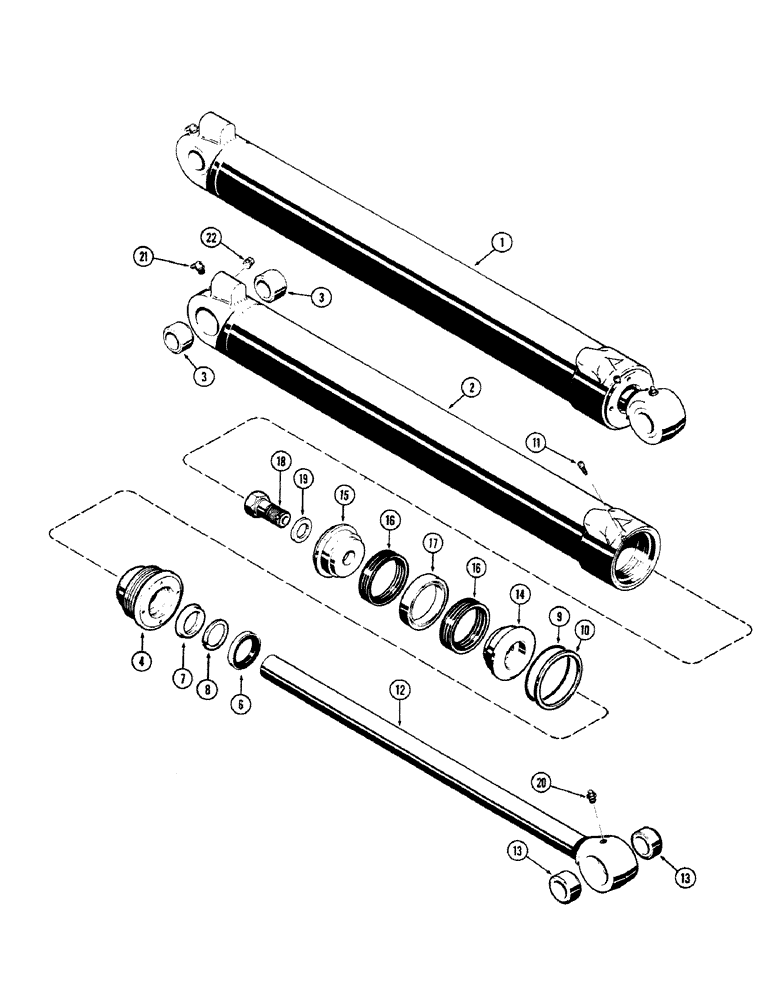

Запчасти Case 680CK (326) - D49525 BACKHOE CROWD CYLINDER, 4-1/2" DIA. CYLINDER WITH 40 1/8" STROKE WITH 2 PIECE PISTON ROD SEAL (35) - HYDRAULIC SYSTEMS

1

D49525

CYLINDER BLOCK

CYLINDER ASSY. - crowd, Includes: Ref. 2 - 22

1шт.

2

D44661

CYLINDER

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- cylinder tube

2шт.

4

D49504

GLAND - w/bushing (Order G32731) (See Figure 324)

1шт.

D42878

GLAND

PACKING KIT - gland repair, Includes: Ref. 6 - 11

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod (2-1/4 x 2-3/4 x 13/32")

1шт.

8

D39539

RING

- piston rod seal back-up

1шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

10

D38932

BACK-UP RING

RING - gland "O" ring back-up (Leather)

1шт.

10

D42452

RING

- gland "O" ring back-up (Synthetic)

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D44659

ROD

ASSY. - piston (2-1/4" dia.), Includes: Ref. 13

1шт.

13

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

14

D46425

PISTON

- split (Rod end)

1шт.

15

D46931

PISTON

- split (Bolt end)

1шт.

16

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

17

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

18

D38425

BOLT

- piston retaining (Self-locking)

1шт.

19

D95033

WASHER

- piston bolt (Replaces D36434)

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

22

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (1/8" P.T., sq. hd.)

1шт.
