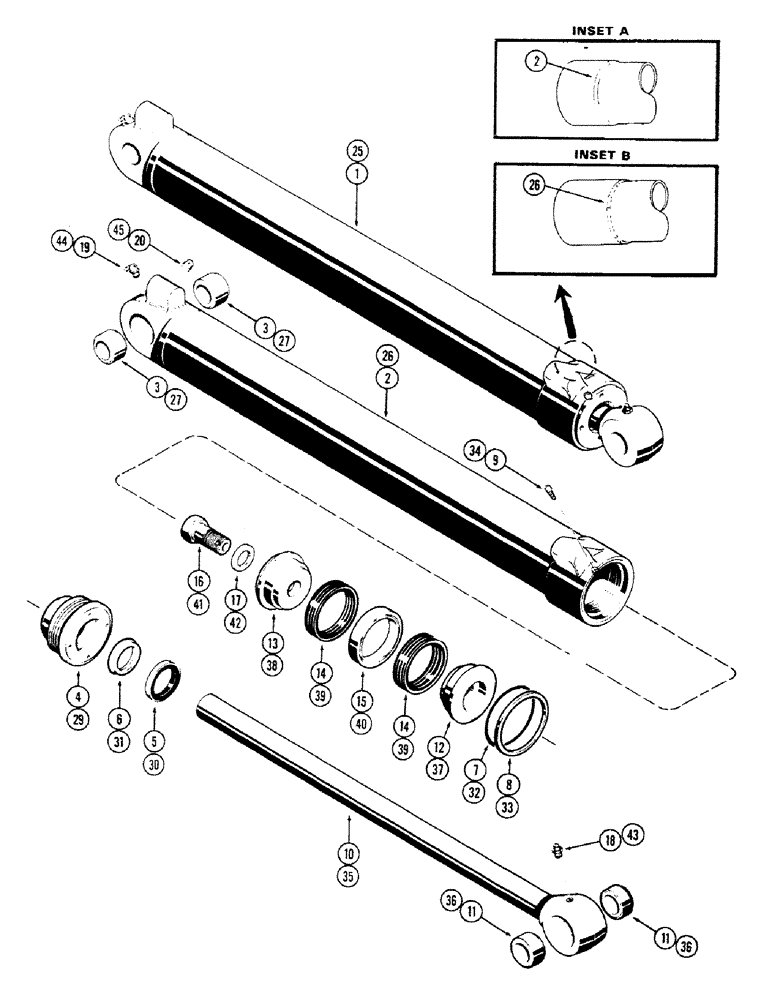

Запчасти Case 680CK (324) - G33810 BACKHOE CROWD CYLINDER, 4-1/2" DIA. CYLINDER WITH (35) - HYDRAULIC SYSTEMS

1

G33810

CYLINDER BLOCK

CYLINDER ASSY. - crowd, Inlcudes: Ref. 2 - 20

1шт.

2

G33812

TUBE,4.495" ID x 4.5" DIA x 49.50" L

ASSY. - cylinder (Swaged) (See inset A), Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G32731

GLAND

ASSY. - w/ bushing, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G32285

1шт.

6

D39359

RUBBER SEAL

SEAL - piston rod (2-1/4 x 2-3/4 x 13/32")

1шт.

Part of seal kit cylinder repair P/N G32285

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/4 x 4-3/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32285

1шт.

8

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G32285

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

10

D44659

ROD

ASSY. - piston (2-1/4" dia.)

1шт.

11

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

12

D46425

PISTON

- split (Rod end)

1шт.

13

D46931

PISTON

- split (Bolt end)

1шт.

14

D47205

PACKING

ASSY. - piston ("V" type)

2шт.

Part of seal kit cylinder repair P/N G32285

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

16

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston

1шт.

17

G32351

WASHER

- bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.) (In rod)

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (In tube) 90º, 1/8" NPT x .84" lg

1шт.

20

221-11

PLUG,Sq Hd, 1/8"-27

- tube (1/8" P.T., sq. hd.)

1шт.

G32285

SEAL

KIT - cylinder repair, Incl. Ref. 5, 6, 7, 8, 14, 30, 31, 32, 33 and 39

1шт.

25

G32683

HYD TUBE,4.5" ID x 52.62" L

CYLINDER ASSY. - crowd, G32683 backhoe crowd with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154, Includes: ref. 26 - 44

1шт.

26

D44661

CYLINDER

TUBE ASSY. - cylinder (Ring welded) (See inset B), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154, Includes: Ref. 27

1шт.

27

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube, G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

2шт.

G32731

GLAND

ASSY. - w/bushing, G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154, Includes: Ref. 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

GLAND, G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

30

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16"), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

Part of seal kit cylinder repair P/N G32285

1шт.

31

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 13/32"), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

Part of seal kit cylinder repair P/N G32285

1шт.

32

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8"), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

Part of seal kit cylinder repair P/N G32285

1шт.

33

G32284

BACK-UP RING

- gland "O" ring back-up, G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

Part of seal kit cylinder repair P/N G32285

1шт.

34

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

35

D44659

ROD

ASSY. - piston (2-1/4" dia.), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154, Includes: Ref. 36

1шт.

36

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod, G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

2шт.

37

D46425

PISTON

- split (Rod end), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

38

D46931

PISTON

- split (Bolt end), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

39

D47205

PACKING

ASSY. - piston ("V" type), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

2шт.

Part of seal kit cylinder repair P/N G32285

1шт.

40

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing, G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

41

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, Piston, G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

42

G32351

WASHER

- piston bolt (1-1/32 x 2-1/2 x 9/64"), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.) (In rod), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

44

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (In tube), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe S/N 9108154 90º, 1/8" NPT x .84" lg

1шт.

45

221-11

PLUG,Sq Hd, 1/8"-27

- tube (1/8" P.T. sq. hd.), G32683 backhoe crowd cylinder with ring weldment type cylinder tube used prior to backhoe ser. no. 9108154

1шт.

G32285

SEAL

KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 14, 30, 31, 32, 33 and 39

1шт.
