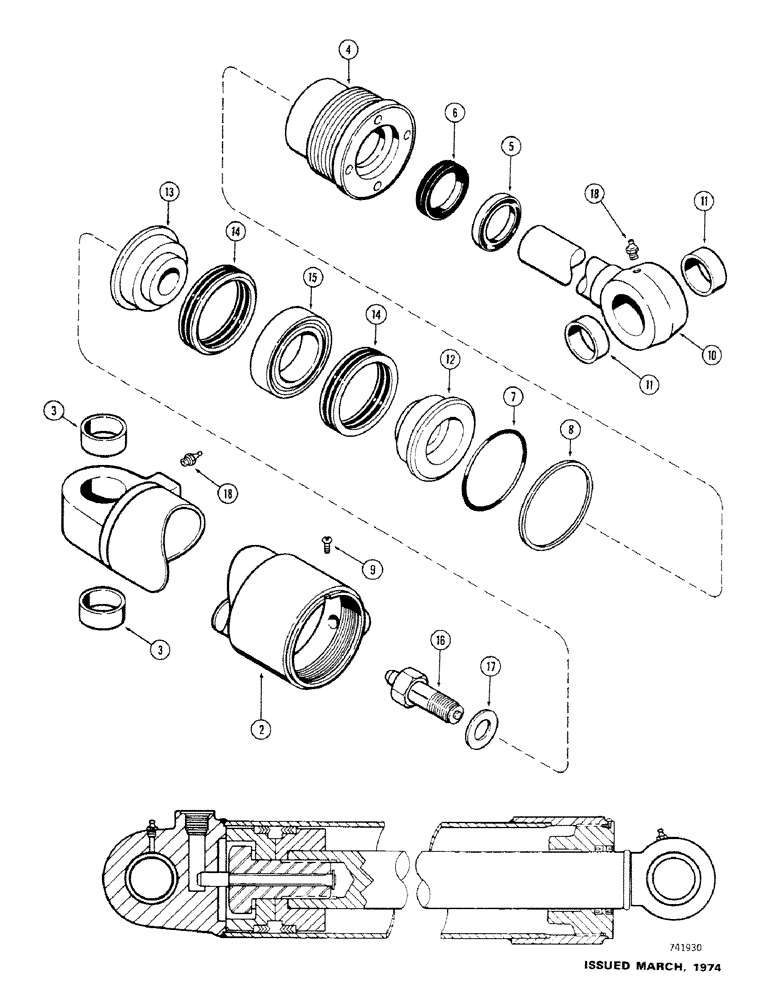

Запчасти Case 680CK (322) - G34900 BOOM CYLINDER, 5" DIA. CYLINDER WITH 39-3/16" STROKE W/ TWO PIECE GLAND SEAL (35) - HYDRAULIC SYSTEMS

1

G34900

CYLINDER

ASSEMBLY - boom, Inlcudes: Ref. 2 - 18

1шт.

2

D45314

BODY

TUBE ASEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G32802

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit P/N G32696

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

cup piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G32696

1шт.

Service option - extreme heat or cold

1шт.

7

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

gland

1шт.

Part of Cylinder Repair Seal Kit P/N G32696

1шт.

8

G32105

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

backup

1шт.

Part of Cylinder Repair Seal Kit P/N G32696

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping #8 - 32 x 1/4"

1шт.

10

D44581

ROD

ASSEMBLY - piston, 2-1/4" (57 MM) O.D., Includes: Ref. 11

1шт.

11

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- rod

2шт.

12

D46426

PISTON

- split, rod end

1шт.

13

D46932

PISTON

- split, bolt end

1шт.

14

D47206

PACKING

ASSEMBLY, piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit P/N G32696

1шт.

15

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RINGcenter bearing

1шт.

16

G34855

BOLT

BOLT ASSEMBLY - piston

1шт.

17

G32351

WASHER

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G32696

KIT

SEAL KIT - cylinder repair, Includes: Refs. 5, 6, 7, 8 and 14

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
