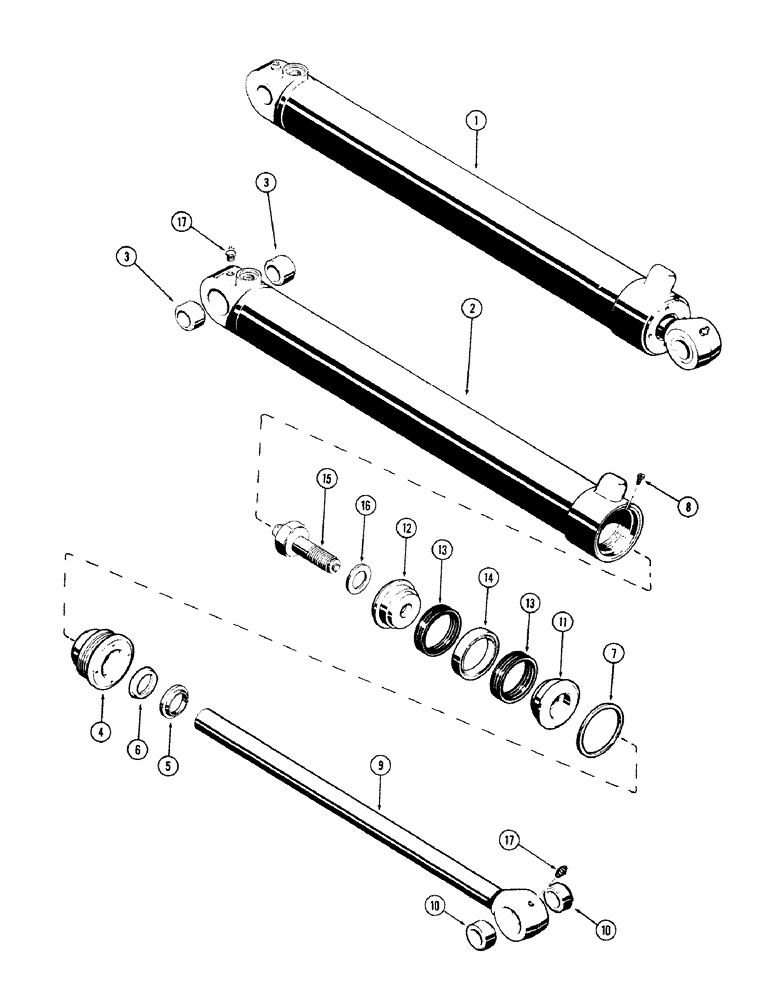

Запчасти Case 680CK (320) - D45313 BACKHOE BOOM CYLINDER, 5" DIA. CYLINDER WITH 39-3/16" STROKE W/ ONE PIECE GLAND SEAL (35) - HYDRAULIC SYSTEMS

1

D45313

WASHER

CYLINDER ASSY. - boom, Inlcudes: Ref. 2 - 17

1шт.

2

D45314

BODY

TUBE ASSY. - cylinder, Inlcudes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

D44584

GLAND

- cylinder, w/bushing (Order G32802) (P. 338)

1шт.

D47650

KIT

PACKING KIT - gland, Inlcudes: Ref. 5 - 8

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod (2-1/4 x 2-3/4 x 13/32")

1шт.

7

D44723

SEAL

- gland (5 x 5-1/4 x 3/16")

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

9

D44581

ROD

ASSY. - piston (2-1/4" dia.), Inlcudes: Ref. 10

1шт.

10

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

11

D46426

PISTON

- split (Rod end)

1шт.

12

D46932

PISTON

- split (Bolt end)

1шт.

13

D47206

PACKING

ASSY. - piston ("V" type) (Replaces D42594)

2шт.

14

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing (Replaces D43546)

1шт.

15

D45879

TUBE

BOLT - piston retainig & cushion

1шт.

16

D95033

WASHER

- bolt (Replaces D36434)

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.
