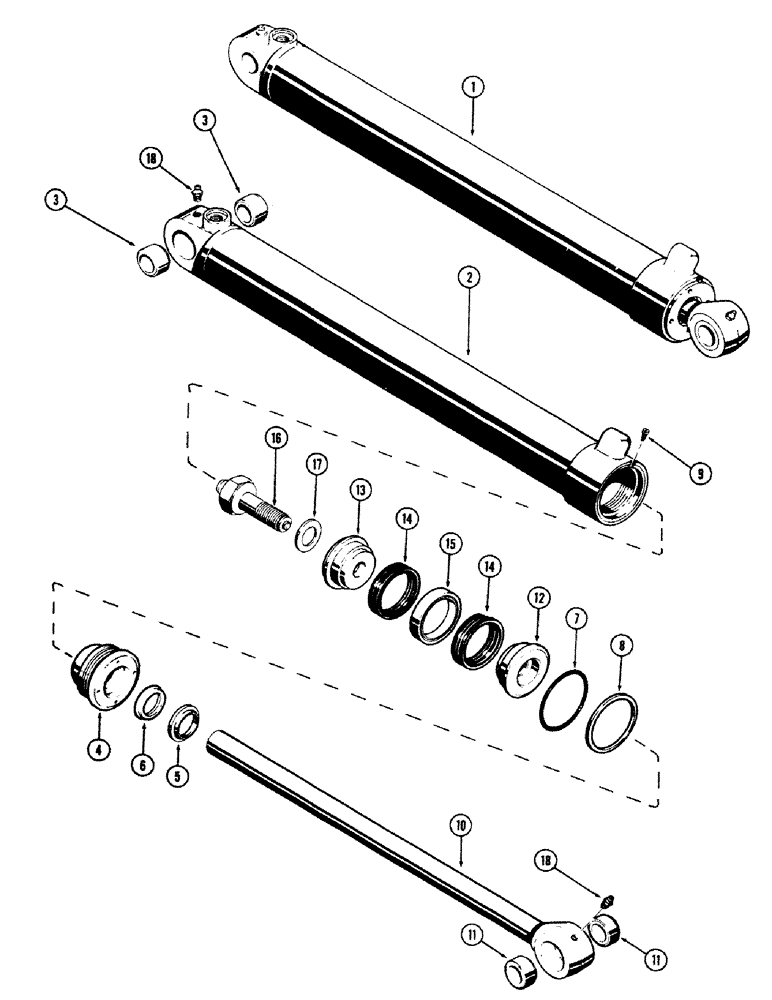

Запчасти Case 680CK (318) - G32692 BACKHOE BOOM CYLINDER, 5" DIA. CYLINDER WITH 39-3/16" STROKE W/ 2 PIECE GLAND SEAL (35) - HYDRAULIC SYSTEMS

1

G32692

CYLINDER

ASSY. - boom, Includes: Re.f 2 - 18

1шт.

2

D45314

BODY

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G32802

GLAND

ASSY. - w/bushing, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G32696

1шт.

6

D39359

RUBBER SEAL

SEAL - piston rod (2-1/4 x 2-3/4 x 13/32")

1шт.

Part of seal kit cylinder repair P/N G32696

1шт.

7

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - gland (5 x 5-1/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32696

1шт.

8

G32105

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair P/N G32696

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

10

D44581

ROD

ASSY. - piston (2-1/4" dia.), Includes: Ref. 11

1шт.

11

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- rod

2шт.

12

D46426

PISTON

- split (Rod end)

1шт.

13

D46932

PISTON

- split (Bolt end)

1шт.

14

D47206

PACKING

ASSY. - piston ("V" type)

2шт.

Part of seal kit cylinder repair P/N G32696

1шт.

15

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

16

G33243

HARDWARE

BOLT ASSY. - piston retaining & cushion

1шт.

17

G32351

WASHER

- bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

G32696

KIT

SEAL KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8 and 14

1шт.
