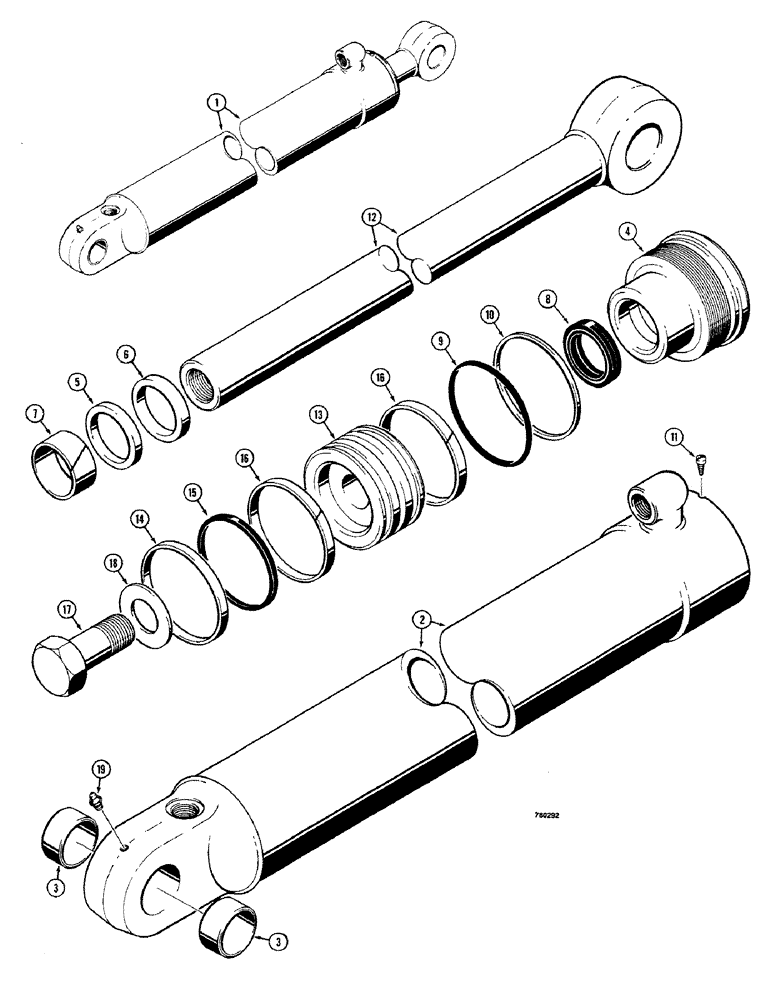

Запчасти Case 680CK (316) - G102517 BACKHOE STABILIZER CYL., 4" DIA. CYL. W/ 21 3/8 " STROKE W/ ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G102517

CYLINDER

ASSEMBLY - stabilizer, Includes: Ref. 2 - 19

2шт.

2

G33829

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G34331

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G101287

1шт.

7

G34322

BEARING

center

1шт.

Part of Seal Kit P/N G101287

1шт.

8

D36971

RING

SEAL piston rod

1шт.

Part of Seal Kit P/N G101287

1шт.

Service option - extreme heat or cold

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G101287

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit P/N G101287

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

12

G33831

ROD

- piston, 2" (51 MM) O.D.

1шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

14

G100439

SEAL,98mm ID x 102.6mm OD x 6.8mm Thk

piston

1шт.

Part of Seal Kit P/N G101287

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

backup

1шт.

Part of Seal Kit P/N G101287

1шт.

16

G100448

RING,101.6mm OD, Ext

wear

2шт.

Part of Seal Kit P/N G101287

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G101287

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10, 14, 15 and 16

1шт.

D100778

SEAL - piston rod, service option - extreme heat or cold

1шт.
