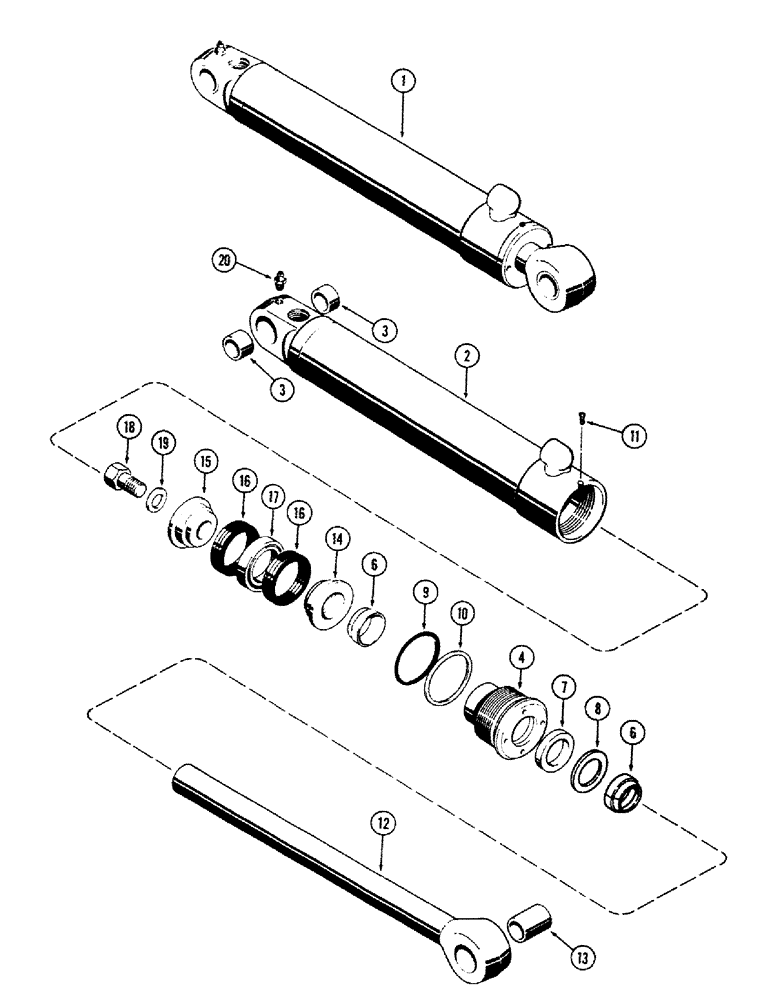

Запчасти Case 680CK (314) - D42708 BACKHOE STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS

1

D42708

CYLINDER ASSY. - stabilizer, Includes: Ref. 2 - 20

1шт.

2

D42707

CYLINDER

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

D45071

GLAND

1шт.

D42876

GLAND

PACKING KIT - gland, Includes: Ref. 6 - 11

1шт.

6

D27380

SCRAPER RING

WIPER - piston rod, inner & outer

2шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

8

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- rod seal back-up

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

10

D27382

RING

- gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D42703

ROD ASSY.

- piston (2" dia.), Includes: Ref. 13

1шт.

13

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

- piston rod

1шт.

14

D46424

PISTON

- split (Rod end) (Replaces D28371)

1шт.

15

D46930

PISTON

- split (Bolt end) (Replaces D28370)

1шт.

16

D43112

PACKING

ASSY. - piston ("V" type)

2шт.

17

D43113

PACKAGE

RING - center bearing

1шт.

18

D31642

BOLT

- piston (1-1/4 x 2-1/2" N.F. hex.)

1шт.

19

D95033

WASHER

- piston bolt (Replaces D36434)

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.
