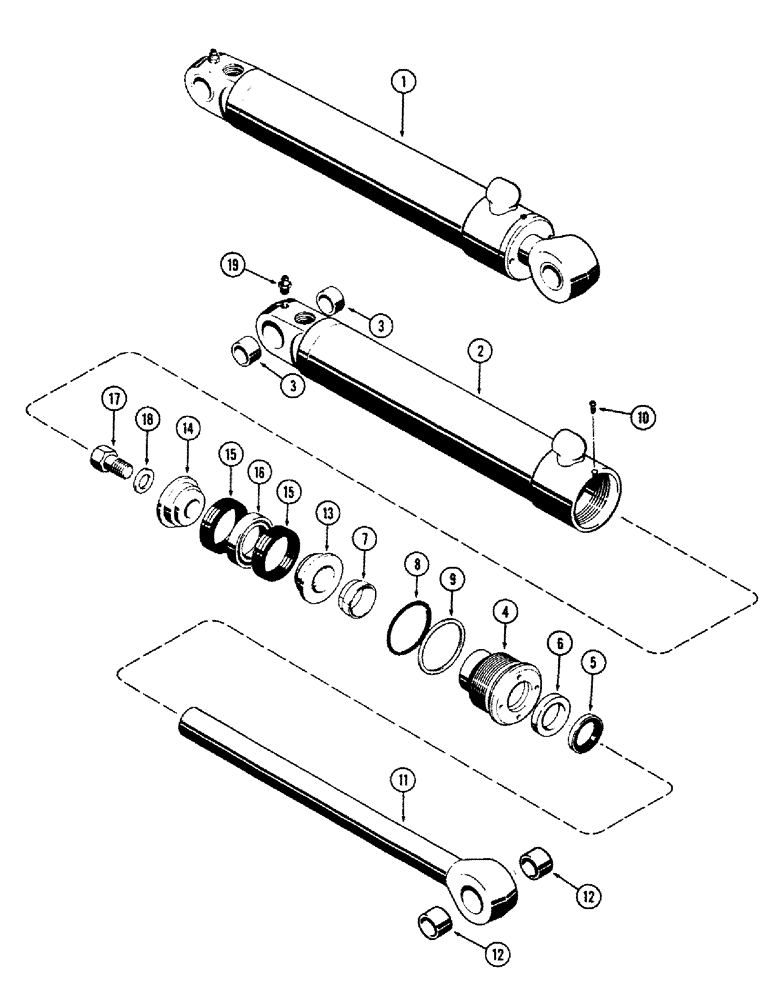

Запчасти Case 680CK (312) - G32601 BACKHOE STABILIZER CYLINDER (35) - HYDRAULIC SYSTEMS

1

G32601

CYLINDER ASSY. - stabilizer, Includes: Ref. 2 - 19

1шт.

2

D42707

CYLINDER

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G32737

GLAND

ASSY., Inlcudes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G32299

1шт.

6

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

Part of seal kit cylinder repair P/N G32299

1шт.

7

D27380

SCRAPER RING

WIPER - piston rod, inner

1шт.

Part of seal kit cylinder repair P/N G32299

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32299

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of seal kit cylinder repair P/N G32299

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

11

D42703

ROD ASSY.

- piston (2" dia.), Inlcudes: Ref. 12

1шт.

12

D35071

BUSHING

- piston rod

2шт.

13

D28371

PISTON

- split (Rod end)

1шт.

14

D28370

PISTON

- split (Bolt end)

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSY. - piston ("V" type)

2шт.

Part of seal kit cylinder repair P/N G32299

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

D31642

BOLT

- piston (1-1/4 x 2-1/2" N.F. hex.)

1шт.

18

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G32299

KIT

SEAL KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 9 and 15

1шт.
