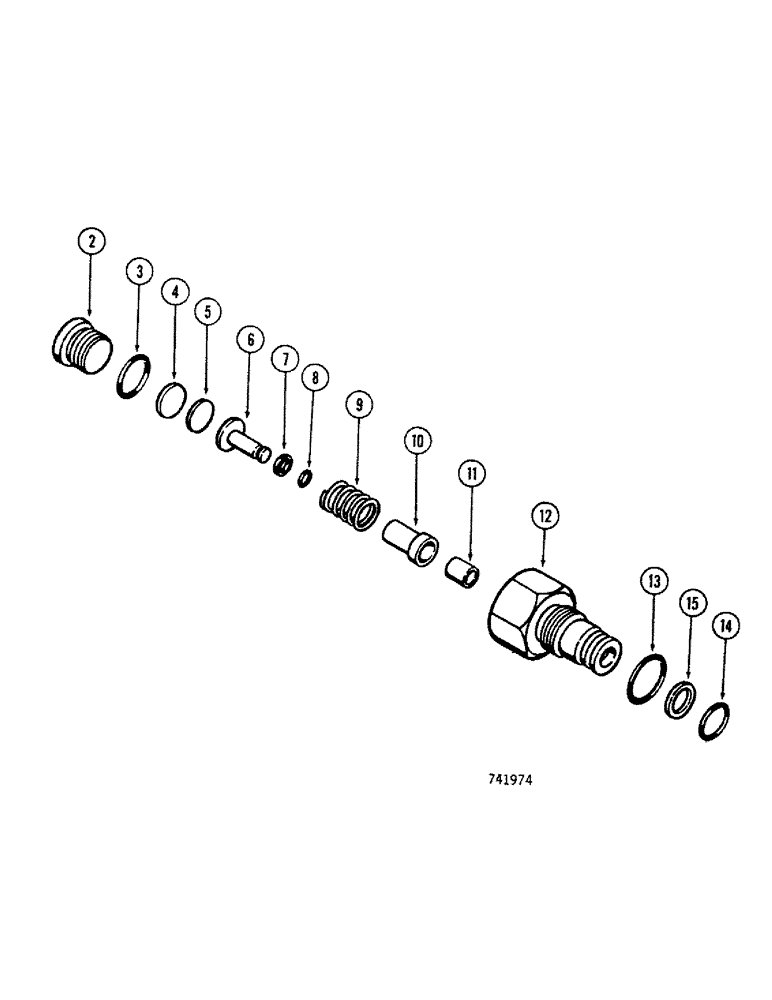

Запчасти Case 680CK (310) - D44766 CARTRIDGE (35) - HYDRAULIC SYSTEMS

D44766

VALVE

CARTRIDGE ASSY. - relief valve, non-adjustable, Includes: Ref. 2 - 15

1шт.

2

D40354

PLUG

ASSY. - relief valve, Inlcudes: Ref. 3

1шт.

4

D40355

SHIM,.005" Thk

Spring guide .005" Thk

1шт.

5

16917

SHIM

- spring guide, .010"

1шт.

6

D37073

GUIDE

- spring

1шт.

7

D40357

RING

- backup, spring guide

1шт.

8

D40356

O-RING

SEAL - "O" ring, spring guide

1шт.

9

D37148

SPRING

- plunger

1шт.

10

D37074

PLUNGER

- relief valve

1шт.

11

D37075

SEAT

- plunger

1шт.

12

D47667

CAP

BODY - relief valve

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - valve body (3/4 x 15/16 x 3/32")

1шт.

14

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" RING - valve body (9/16 x 11/16 x 1/16")

1шт.

15

D37071

RING

- backup, valve body seal

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - plug (5/8 x 13/16 x 5/64")

1шт.
