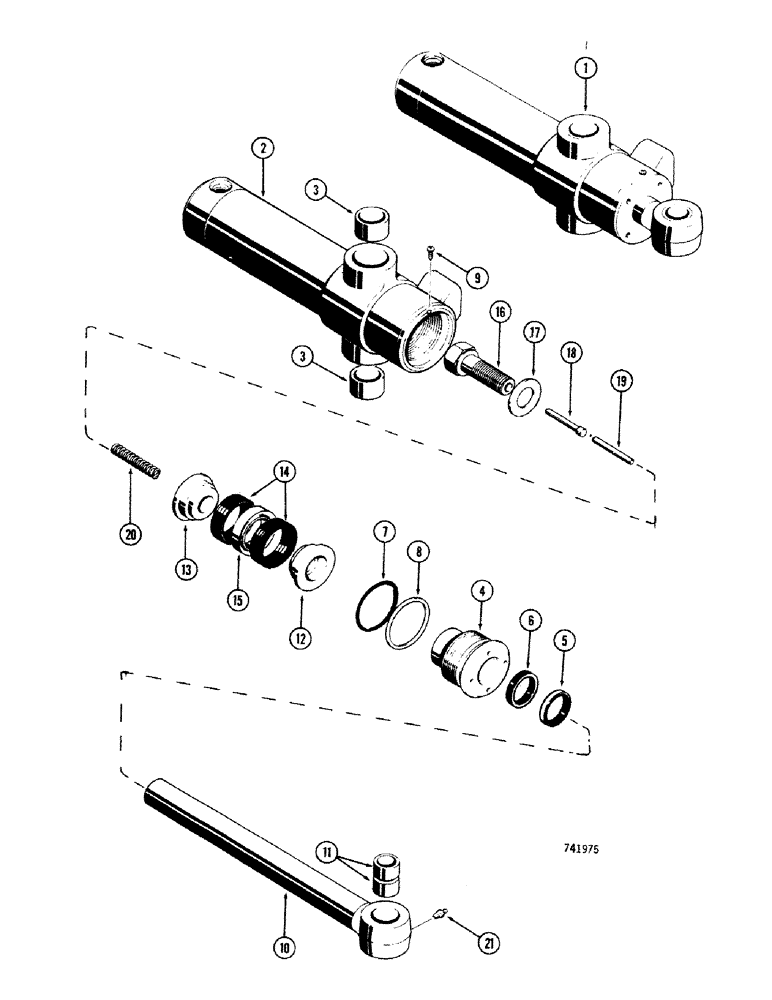

Запчасти Case 680CK (308) - G33628 & G33629 BACKHOE SWING CYL., 4-1/2" DIA. CYL. W/ 11 3/8" STROKE GLAND W/ INNER BUSHINGS (35) - HYDRAULIC SYSTEMS

1

G33628

CYLINDER

ASSEMBLY - swing R.H., Includes: Ref. 2 - 21

1шт.

1

G33629

CYLINDER BLOCK

CYLINDER ASSEMBLY - swing, L.H., Includes: Ref. 2 - 21

1шт.

2

G32882

TUBE,19.37" L

ASSEMBLY - cylinder, R.H., Includes: Ref. 3

1шт.

2

G32883

TUBE

ASSEMBLY - cylinder, L.H., Includes: Ref. 3

1шт.

3

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

- tube

2шт.

4

G33641

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 8

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

See Figure 306 for cylinder with center bearing.

1шт.

6

D36971

RING

SEAL piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

See Figure 306 for cylinder with center bearing.

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

gland

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

See Figure 306 for cylinder with center bearing.

1шт.

8

G32284

BACK-UP RING

backup

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

See Figure 306 for cylinder with center bearing.

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping #8 - 32 x 1/4"

1шт.

10

G33630

ROD

ASSEMBLY - piston, 2" (51 MM) O.D., Includes: Ref. 11

1шт.

11

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

12

G33634

PISTON

- split, rod end

1шт.

13

D46931

PISTON

- split, bolt end

1шт.

14

D47205

PACKING

ASSEMBLY, piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

See Figure 306 for cylinder with center bearing.

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

16

D44557

BOLT

- piston

1шт.

17

G32351

WASHER

- hardened

1шт.

18

D46171

AXLE PIN

PIN - cushion

1шт.

19

D46155

SPACER

- cushion pin

1шт.

20

D44554

VALVE SPRING

SPRING - cushion

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G32885

KIT

seal, cylinder repair, Includes: Refs. 5, 6, 7, 8 and 14

1шт.

See Figure 306 for cylinder with center bearing.

1шт.

G100778

SEAL

piston rod, service option - extreme heat or cold

1шт.

See Figure 306 for cylinder with center bearing.

1шт.
