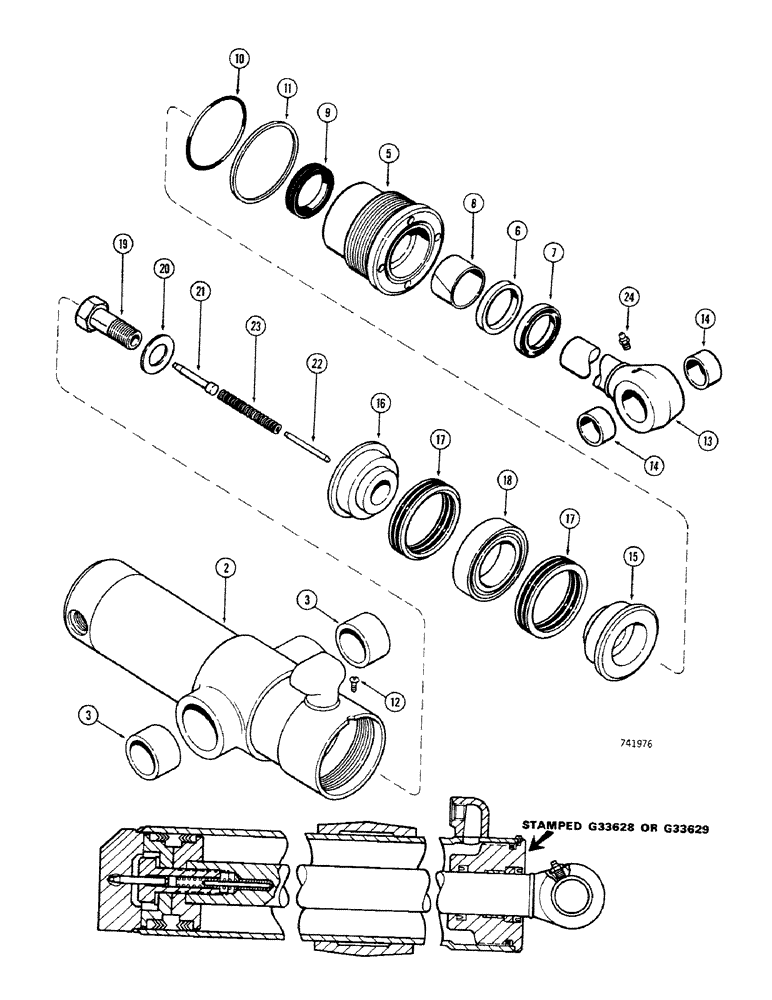

Запчасти Case 680CK (306) - G33628 & G33629 BACKHOE, SWING CYL., 4-1/2" DIA. CYL. W/ 11 3/8" STROKE GLAND W/ CENTER BEARING (35) - HYDRAULIC SYSTEMS

G33628

CYLINDER

ASSEMBLY - swing, R.H., stamped G33628 on gland, Includes: Ref. 2 - 24

1шт.

G33629

CYLINDER BLOCK

CYLINDER ASSEMBLY - swing, L.H., stamped G33629 on gland, Includes: Ref. 2 - 24

1шт.

2

G32882

TUBE,19.37" L

ASSEMBLY - cylinder, R.H., Includes: Ref. 3

1шт.

2

G32883

TUBE

ASSEMBLY - cylinder, L.H., Includes: Ref. 3

1шт.

3

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

- tube

2шт.

G34397

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit P/N G34644

1шт.

See Figure 308 for cylinder without center bearing.

1шт.

8

G34322

BEARING

piston rod, center

1шт.

Part of Seal Kit P/N G34644

1шт.

See Figure 308 for cylinder without center bearing.

1шт.

9

D36971

RING

SEAL piston rod

1шт.

Part of Seal Kit P/N G34644

1шт.

See Figure 308 for cylinder without center bearing.

1шт.

Service option - extreme heat or cold

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G34644

1шт.

See Figure 308 for cylinder without center bearing.

1шт.

11

G32284

BACK-UP RING

backup

1шт.

Part of Seal Kit P/N G34644

1шт.

See Figure 308 for cylinder without center bearing.

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

self tapping #8 - 32 NC x 1/4"

1шт.

13

G33630

ROD

ASSEMBLY - piston 2" (51 MM) O.D., Includes: Ref. 14

1шт.

14

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

15

G33634

PISTON

- split, rod end

1шт.

16

D46931

PISTON

- split, bolt end

1шт.

17

D47205

PACKING

ASSEMBLY, piston "V" type

2шт.

Part of Seal Kit P/N G34644

1шт.

See Figure 308 for cylinder without center bearing.

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

D44557

BOLT

- piston

1шт.

20

G32351

WASHER

- hardened

1шт.

21

D46171

AXLE PIN

PIN - cushion

1шт.

22

D46155

SPACER

- cushion ring

1шт.

23

D44554

VALVE SPRING

SPRING - cushion

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34644

SEAL

KIT seal, Includes: Refs. 7, 8, 9, 10, 11 and 17

1шт.

See Figure 308 for cylinder without center bearing.

1шт.

G100778

SEAL

piston rod, service option - extreme heat or cold

1шт.

See Figure 308 for cylinder without center bearing.

1шт.
