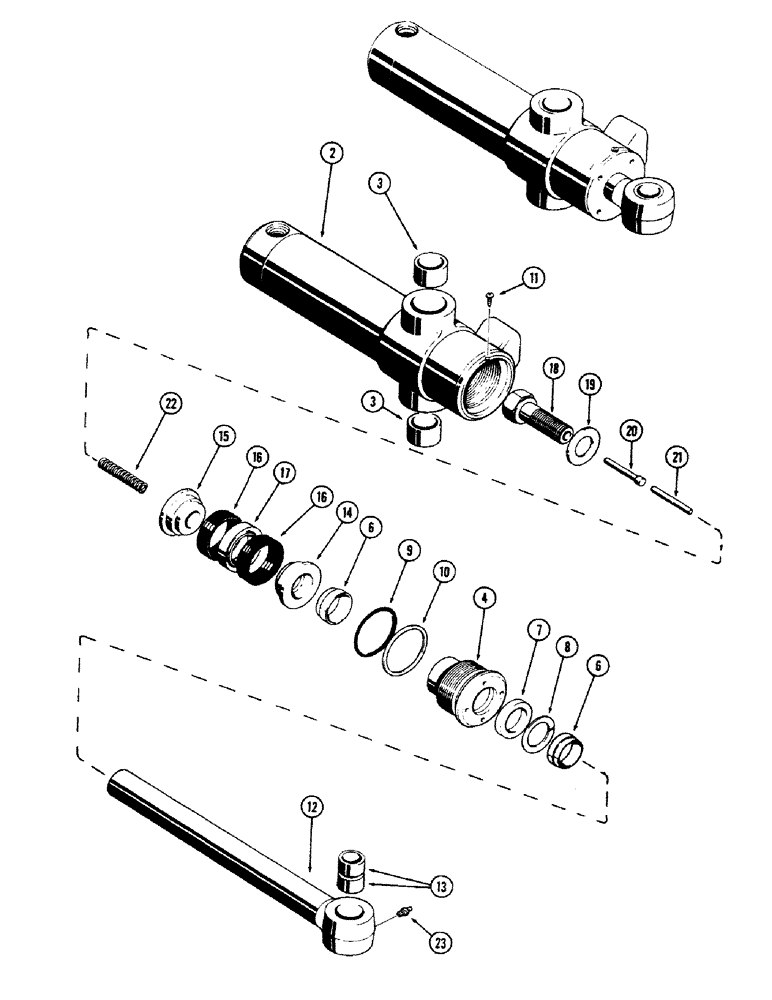

Запчасти Case 680CK (304) - D45303 & D45304 BACKHOE SWING CYLINDERS (35) - HYDRAULIC SYSTEMS

1

D45303

CYLINDER

ASSY. - swing, left hand (Order G32879), Includes: Ref. 2 - 23

1шт.

1

D45304

CYLINDER

ASSY. - swing, right hand (Order G32878), Includes: Ref. 2 - 23

1шт.

2

D45305

CYLINDER

TUBE ASSY. - cylinder, left hand, Includes: Ref. 3

1шт.

2

D45306

CYLINDER

TUBE ASSY. - cylinder, right hand, Includes: Ref. 3

1шт.

3

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

- tube trunnion

2шт.

4

D44552

GLAND

- packing

1шт.

D47651

GLAND

PACKING KIT - gland, Includes: Ref. 6 - 11

1шт.

6

D27380

SCRAPER RING

WIPER - piston rod, inner & outer

2шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

8

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- rod seal back-up

1шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

10

D42452

RING

- gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D47975

PISTON ROD

ROD ASSY. - piston (2" dia.), Includes: Ref. 13

1шт.

13

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

14

D44556

PISTON

- split (Rod end)

1шт.

15

D46931

PISTON

- split (Bolt end) (Replaces A38934)

1шт.

16

D47205

PACKING

ASSY. - piston, "V" type

2шт.

17

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

18

D44557

BOLT

- piston

1шт.

19

D95033

WASHER

- piston bolt (Replaces D43745)

1шт.

20

D46171

AXLE PIN

PIN - cushion

1шт.

21

D46155

SPACER

STOP - cushion pin

1шт.

22

D44554

VALVE SPRING

SPRING - cushion

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.
