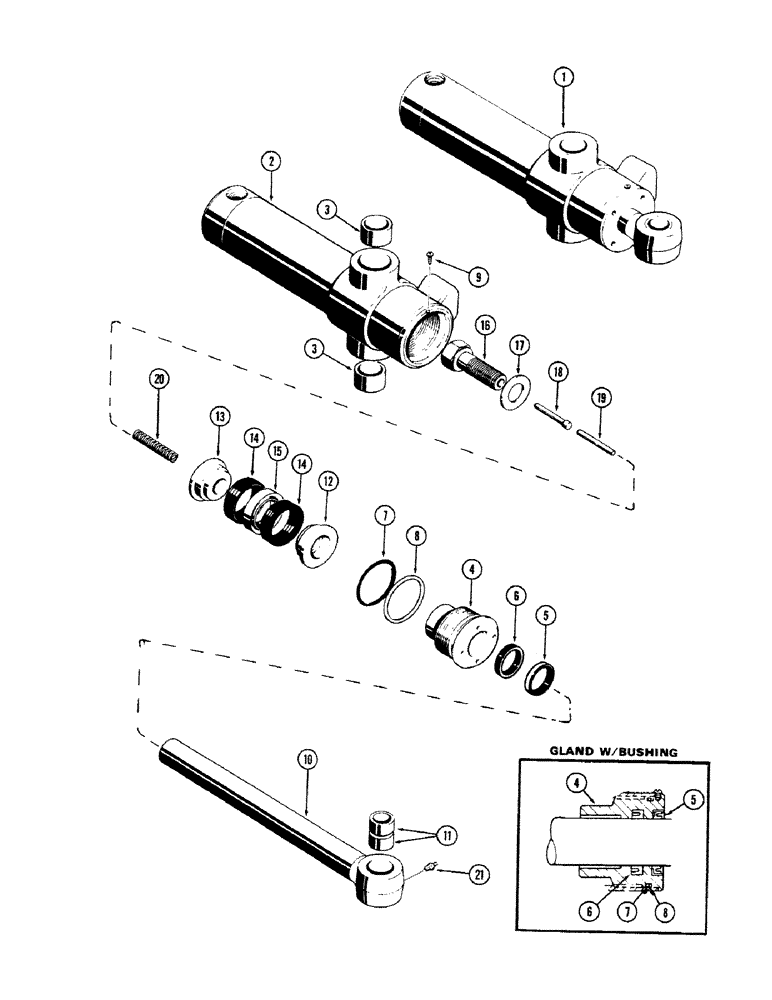

Запчасти Case 680CK (300) - G32878 & G32879 BACKHOE SWING CYLINDERS (35) - HYDRAULIC SYSTEMS

1

G32878

CYLINDER

ASSY. - swing, right hand (Replaces G32676 & D45304), Includes: Ref. 2 - 21

1шт.

1

G32879

CYLINDER

ASSY. - swing, left hand (Replaces G32675 & D45303), Includes: Ref. 2 - 21

1шт.

2

G32882

TUBE,19.37" L

ASSY. - right hand (Replaces D45306), Includes: Ref. 3

1шт.

2

G32883

TUBE

ASSY. - left hand (Replaces D45305), Includes: Ref. 3

1шт.

3

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

- tube trunnion

2шт.

G32886

GLAND

ASSY. - w/bushing (See inset), Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

6

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - gland (4-1/2 x 4-3/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

8

G32284

BACK-UP RING

- gland "O" ring back-up

1шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

10

D47975

PISTON ROD

ROD ASSY. - piston (2" dia.), Includes: Ref. 11

1шт.

11

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod

2шт.

12

D49166

PISTON ASSY.

PISTON - split (Rod end)

1шт.

13

D46931

PISTON

- split (Bolt end)

1шт.

14

D47205

PACKING

ASSY. - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit P/N G32885

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

16

D44557

BOLT

- piston

1шт.

17

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

18

D46171

AXLE PIN

PIN - cushion

1шт.

19

D46155

SPACER

- cushion pin

1шт.

20

D44554

VALVE SPRING

SPRING - cushion

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G32885

KIT

SEAL KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8 and 14

1шт.
