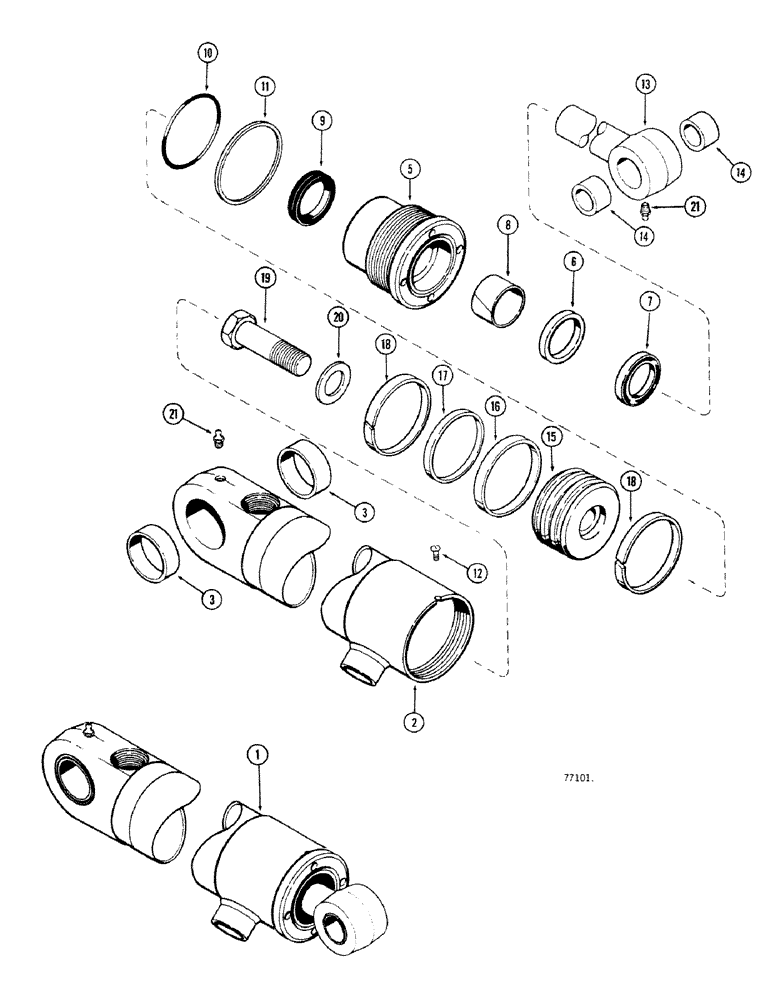

Запчасти Case 680CK (298) - G101226 AND G101227 CLAM CYLINDER, 3" DIA. CYLINDER WITH 10 1/2" STROKE WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G101226

CYLINDER ASSY.

CYLINDER ASSYEMBLY - clam, R.H., Includes: Ref. 2 - 21

1шт.

1

G101227

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, L.H., Includes: Ref. 2 - 21

1шт.

2

D46911

CYLINDER

TUBE ASSEMBLY - R.H. cylinder, Includes: Ref. 3

1шт.

2

D46910

TUBE

ASSEMBLY - L.H. cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G34328

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of Seal Kit P/N G102404

1шт.

8

G34302

BEARING

center

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of Seal Kit P/N G102404

1шт.

9

D36969

CUP

SEAL piston rod

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of Seal Kit P/N G102404

1шт.

Service option - extreme heat or cold

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of Seal Kit P/N G102404

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

13

G33467

ROD

ASSEMBLY - piston, 1-1/2" (38 MM) O.D., Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

15

G100442

PISTON

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Assy, Piston

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of Seal Kit P/N G102404

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

ring backup

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of Seal Kit P/N G102404

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear

2шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

Part of Seal Kit P/N G102404

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G102404

SEAL

KIT seal, Includes: Refs. 7, 8, 9, 10, 16, 17 and 18

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.

G100776

SEAL

piston rod, service option - extreme heat or cold

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland or tube.

1шт.
