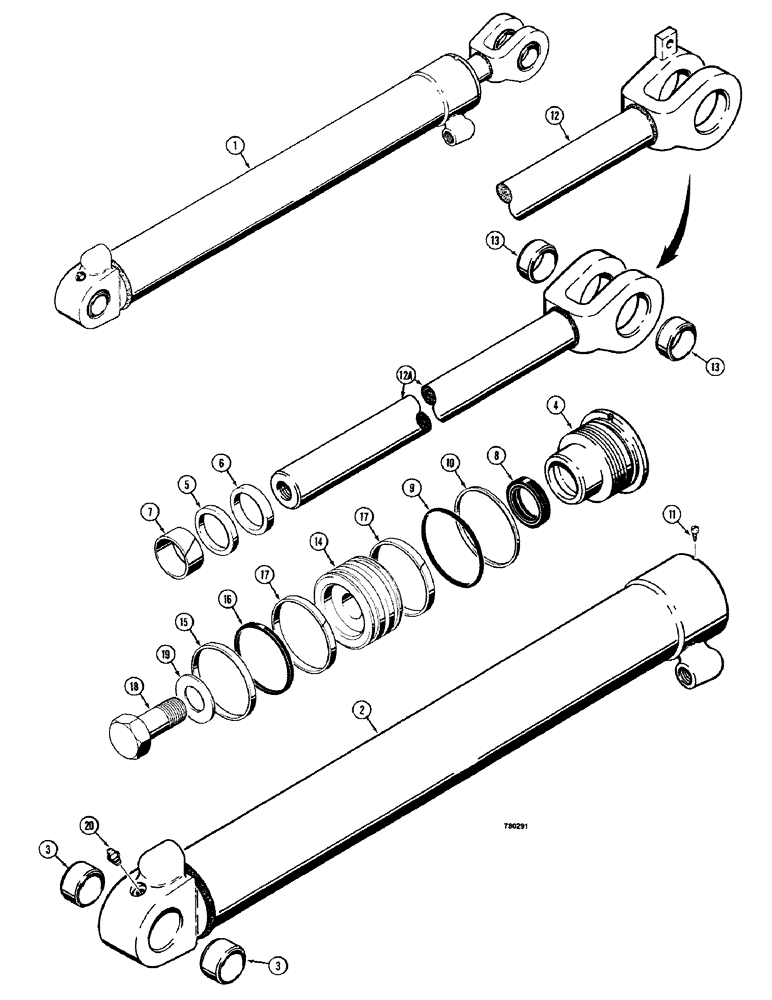

Запчасти Case 680CK (292) - R40123 AND G101223 LOADER LIFT CYLINDERS, 3-1/2U DIA. W/ 31 STROKE WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

R40123

CYLINDER

ASSEMBLY - lift, R.H., Includes: Ref. 2 - 20

1шт.

1

G101223

CYLINDER

ASSEMBLY - lift, L.H., Includes: Ref. 2 - 20

1шт.

2

D35064

TUBE

ASSEMBLY - R.H. cylinder, Includes: Ref. 3

1шт.

2

D35063

TUBE

ASSEMBLY - L.H. cylinder, Includes: Ref. 3

1шт.

3

D35071

BUSHING

- tube

2шт.

G34629

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G101288

1шт.

7

G34322

BEARING

center

1шт.

Part of Seal Kit P/N G101288

1шт.

8

D36971

RING

SEAL piston, rod

1шт.

Part of Seal Kit P/N G101288

1шт.

Service option - extreme heat or cold

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G101288

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Kit P/N G101288

1шт.

11

187-131

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

12

G33600

ROD

ASSEMBLY - piston, R.H., 2" (51 MM) O.D.

1шт.

12a

G33604

ROD

ASSEMBLY - piston, L.H., 2" (51 MM) O.D., Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G100694

PISTON

- cylinder

1шт.

15

G100709

SEALING RING,90.195mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G101288

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup

1шт.

Part of Seal Kit P/N G101288

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N G101288

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G101288

SEAL KIT

KIT - seal, includes Refs. 6, 7, 8, 9, 10, 15, 16 and 17

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.
