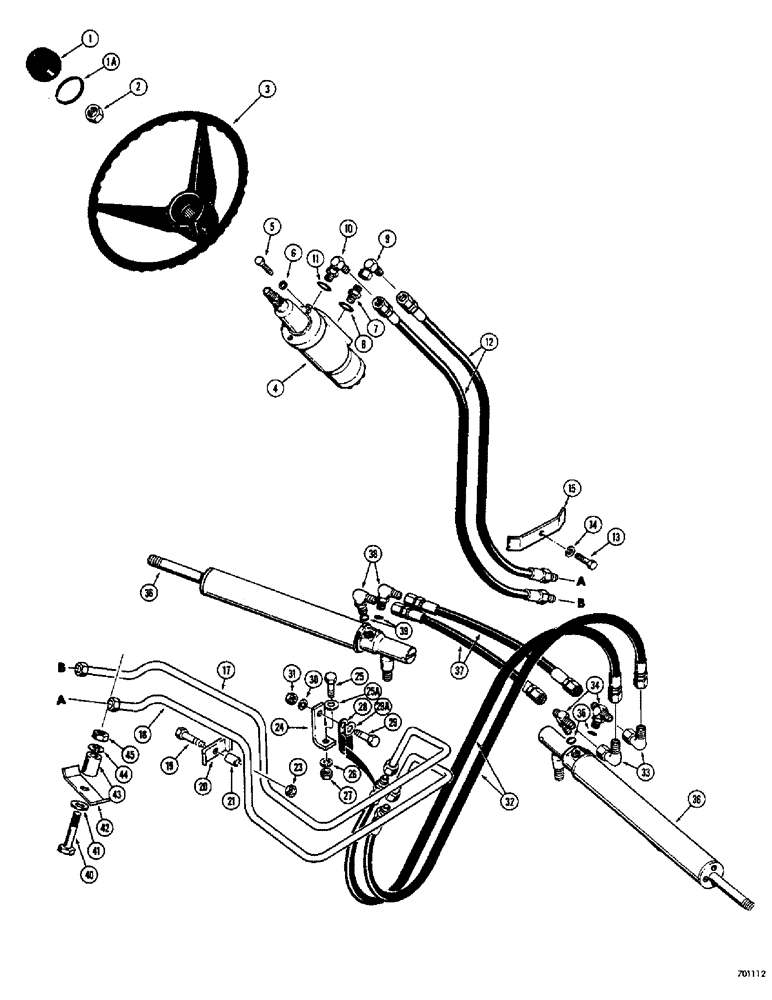

Запчасти Case 680CK (106) - STEERING WHEEL AND STEERING CYLINDER HYDRAULICS (41) - STEERING

1

L15282

CAP

- steering wheel (Used with A37261 wheel only)

1шт.

1

A62210

PLUG

CAP - steering wheel (Used with A61007 wheel only)

1шт.

1a

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

RETAINER - cap, "O" ring (A62210 cap only)

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel to manual pump

1шт.

3

A37261

X

WHEEL - steering, 15" O.D. (Used with L15282 snap in wheel cap (When stock is exhausted, order A61007 wheel, A62210 cap and A29884 retainer for service)

1шт.

3

A61007

RIM

WHEEL - steering, 15-1/4" O.D. (Used with "O" ring retained, A62210 wheel cap)

1шт.

4

L13405

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering, manual (Parts list Figure 108)

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

6

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

3шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Male, Straight, Incl. Ref 8 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

218-981

X

ELBOW - swivel, 90 degrees

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 11 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

A36162

TUBE

HOSE - manual pump to steering cylinder (28-7/8" long)

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

14

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

1шт.

15

L17475

CLAMP - hose

1шт.

17

L18946

TUBE,0.5" OD

- manual steering pumpt to steering cylinders (Upper)

1шт.

18

L18943

TUBE,0.5" OD

- manual steering pumpt to steering cylinders (lower)

1шт.

19

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

20

A14078

CLAMP

- tube

1шт.

21

D33551

BUSHING

SPACER - tube

1шт.

23

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.

24

L18956

BRACKET - clamp

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

25a

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

26

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

28

L19029

CLAMP

- tube

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

29a

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

30

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

32

L13415

HOSE,0.38" ID x 17.25", SAE 100R1

ASSY, , Cylinder to Tube 0.38" ID x 17.25", SAE 100R1

2шт.

33

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- swivel, 90 degrees

2шт.

34

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, side, Includes: Ref. 35

2шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

36

A55158

CYLINDER BLOCK

CYLINDER - steering, 1-3/4" I.D. x 9" stroke (Parts list Figure 108)

2шт.

37

L12347

PIPE

HOSE - steering cylinder crossover (15-1/4" long)

2шт.

38

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, 90 degrees, Includes: Ref. 39

2шт.

39

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

40

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

41

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

42

R17319

CLAMP

- tube to hydraulic tank

1шт.

43

D33551

BUSHING

SPACER - tube

1шт.

44

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

1шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.
