Артикул
Название
Примечание
Количество
1
L41583

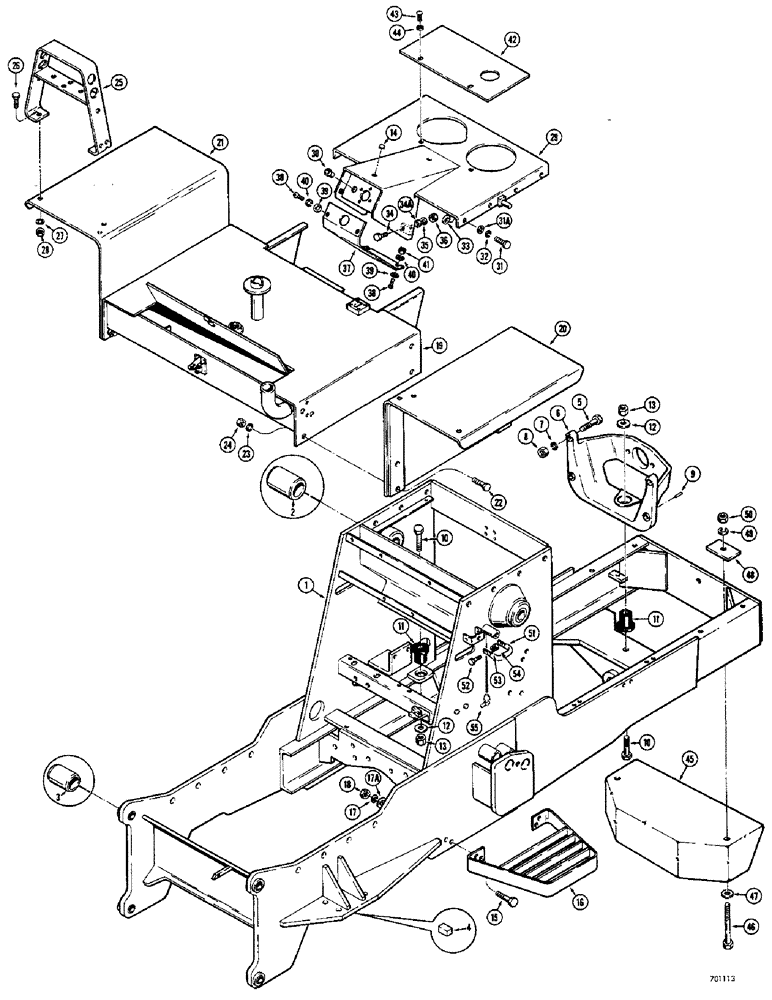

CHASSIS ASSEMBLY - tractor, Includes: Ref. 2 and 3
1шт.
2
D34506
BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L
- loader lift frame pivot bracket
2шт.
3
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- backhoe mounting pin
4шт.
4
L12324
LUG - axle, Serial Range: pad-chassis
4шт.
5
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
4шт.
6
L40838
BRACKET - equipment pump and engine mounting (When stock is exhausted, order L47205 bracket for service)
1шт.
6
L47205
BRACKET
- equipment pump and engine mounting
1шт.
7
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
8
25-1012
NUT,3/4"-10, G5
4шт.
9
139-64
PIN,1/8" x 1 1/2", Tapered
- taper, #5 x 1-1/2"
2шт.
10
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
HHCS - 5/8" - 11 NC x 4"
3шт.
11
A19067
MOUNTING PARTS
MOUNT - engine, rubber
3шт.
12
A17516
WASHER
- special
3шт.
13
131-14
LOCK NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
3шт.
14
A56527
PLUG - cowl, cockpit
2шт.
15
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
8шт.
16
L13647
STEP
- cockpit entry
2шт.
17
92-6
LOCK WASHER,3/8"
med. sect. 3/8"
8шт.
17a
95-6
WASHER,3/8"
- plain () 3/8"
8шт.
18
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
8шт.
19
L42547
TANK ASSEMBLY - fuel (See Figure 34 for related parts)
1шт.
20
L26347
FENDER - drive wheel, R.H.
1шт.
21
L26222
FENDER - drive wheel, L.H.
1шт.
22
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
8шт.
23
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
8шт.
24
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
8шт.
25
L26326
BRACKET
- mounting, rear light
2шт.
26
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
4шт.
27
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
4шт.
28
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
4шт.
29
L43704
CONSOLE AND HOOD WRAPPER - tractor, Includes: Ref. 30
1шт.
30
L10962
BUSHING - console, shift lever shaft
1шт.
31
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
8шт.
31a
195-33
WASHER,1/2"
- plain () 1/2"
8шт.
32
92-8
LOCK WASHER,1/2"
med. sect. 1/2"
8шт.
33
T24401
WASHER
- special
1шт.
34
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
34a
95-4
WASHER,1/4"
- plain () 1/4"
2шт.
35
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
36
25-104
NUT,1/4"-20, G5
2шт.
37
L11080
COVER - access, console
1шт.
38
173-214
SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"
- Phillips head (1/4" - 20 NC x 3/4") Zinc plated
4шт.
39
195-518
WASHER,1/4", SAE
- plain (1/4") Zinc plated
4шт.
40
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
41
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
42
L26406
COVER - access, hydraulic tank
1шт.
43
173-241
X
SCREW - round head (5/16" - 18 NC x 1/2") Zinc plated
2шт.
44
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
45
L18639
COUNTERWEIGHT - front
1шт.
46
13-12128
BOLT,Hex, 3/4" - 10 x 8", Gr 5
HHCS - 3/4" - 10 NC x 8"
2шт.
47
195-46
WASHER,3/4" x 1 3/4" x .148"
- plain (3/4")
2шт.
48
L18638
PLATE - counterweight mounting
2шт.
49
192-167
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
50
25-1012
NUT,3/4"-10, G5
2шт.
51
L19074
HANDLE - operator assist (If used)
2шт.
52
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
HHCS - 5/16" - 18 NC x 1-1/4"
4шт.
53
92-5
LOCK WASHER,5/16"
med. sect. 5/16"
4шт.
54
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
4шт.
55
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
Выбрано товаров: 59
