Артикул
Название
Примечание
Количество
1
D47624
SPARE PART

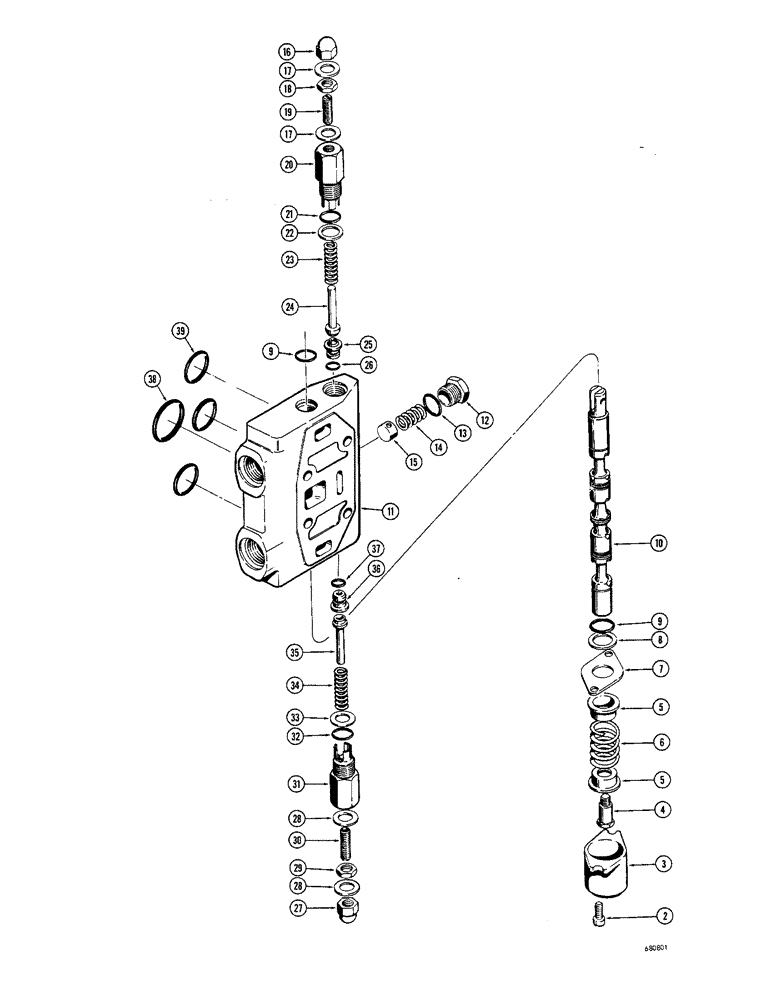

BOOM SECTION - backhoe control valve, Includes: Ref. 2 - 26
1шт.
2
71-512
SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"
FHMS - 5/16" - 18 NC x 3/4"
2шт.
3
D32221
COVER
CAP - boom section
1шт.
4
D32128
BOLT (SPREADER)
BOLT - stripper, special
1шт.
5
D32130
GUIDE
- spring
2шт.
6
D40761
SPRING - centering
1шт.
7
R20556
PLATE - retaining
1шт.
8
D32215
RING
- backup
1шт.
9
D29898
RING
SEAL - quad ring
2шт.
10
NSS
NOT SOLD SEPARAT
SPOOL - boom section
1шт.
11
NSS
NOT SOLD SEPARAT
HOUSING - boom section
1шт.
12
39007
CAP
- check valve
1шт.
13
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
SEAL - "O" ring
1шт.
14
R15308
VALVE SPRING
SPRING - check valve
1шт.
15
D45694
SPOOL
POPPET - check valve
1шт.
D39454
CARTRIDGE
- secondary relief, upper (Not preset) Must be set to correct pressure when installed on valve, Includes: Ref. 16 - 26
1шт.
16
129-526
CROWN NUT,Low, 3/8" - 24
- acorn (3/8" - 24 NF)
1шт.
17
23150
WASHER
GASKET - copper
2шт.
18
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex., jam (3/8" - 24 NF)
1шт.
19
D38814
ADJUSTMENT SCREW,3/8" - 24
SCREW - set, special
1шт.
20
NSS
NOT SOLD SEPARAT
BODY - cartridge
1шт.
21
D26872
O-RING
SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.
1шт.
22
D31450
WASHER
- gasket
1шт.
23
D40778
VALVE SPRING
SPRING - relief valve
1шт.
D40189
PACKAGE
KIT - seat and poppet, Includes: Ref. 24 - 26
1шт.
24
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
25
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
26
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)
1шт.
D42866
VALVE
CARTRIDGE - secondary relief, lower (Not preset) Must be set to correct presssure when installed on valve, Includes: Ref. 27 - 39
1шт.
27
129-526
CROWN NUT,Low, 3/8" - 24
- acorn (3/8" - 24 NF)
1шт.
28
23150
WASHER
GASKET - copper
2шт.
29
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex., jam (3/8" - 24 NF)
1шт.
30
D38814
ADJUSTMENT SCREW,3/8" - 24
SCREW - set, special
1шт.
31
NSS
NOT SOLD SEPARAT
BODY - cartridge
1шт.
32
D26872
O-RING
SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.
1шт.
33
D31450
WASHER
- gasket
1шт.
D42865
VALVE POPPET
KIT - seat and poppet, Includes: Ref. 34 - 37
1шт.
34
NSS
NOT SOLD SEPARAT
SPRING - relief valve
1шт.
35
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
36
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
37
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)
1шт.
38
D32127
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Standard 70 durometer)
1шт.
38
L46406
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Optional 90 durometer)
1шт.
39
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Standard 70 durometer)
3шт.
39
L46405
O-RING
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Optional 90 durometer)
3шт.
Выбрано товаров: 45
