Артикул
Название
Примечание
Количество
L32692
NUT

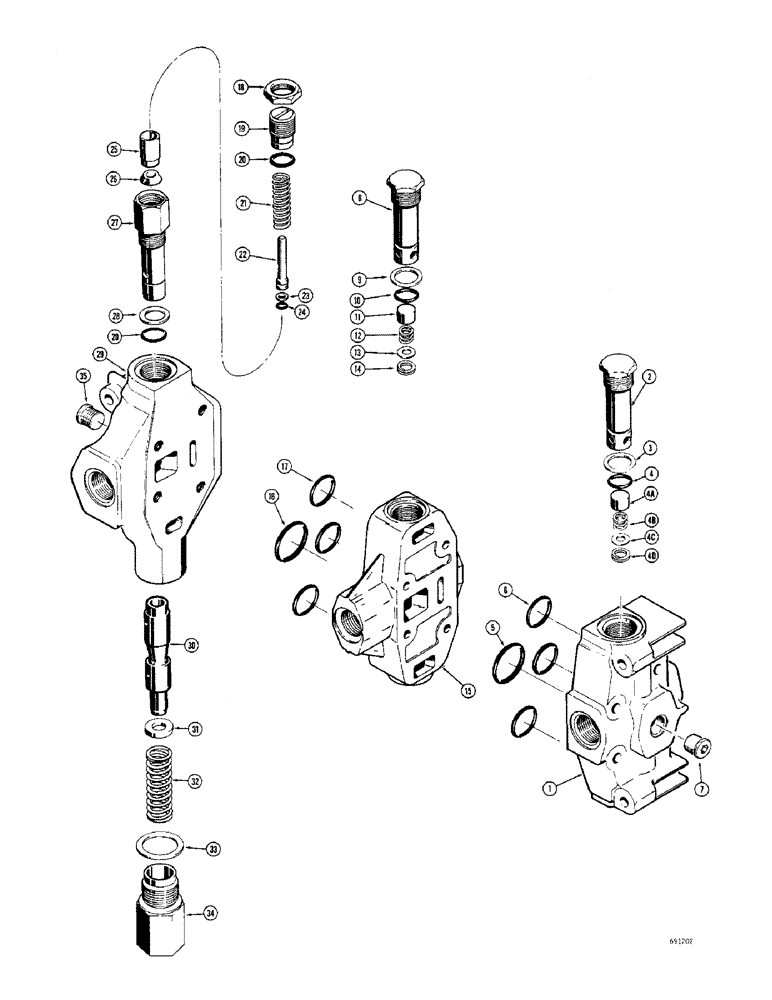

INLET SECTION - backhoe control valve
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - inlet section
1шт.
D40775
VALVE
ASSEMBLY - check, Includes: Ref. 2 - 4D
1шт.
2
D40819
CARTRIDGE - check valve
1шт.
3
D40822
WASHER
GASKET - cartridge
1-2шт.
4
D31413
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
SEAL - "O" ring
1шт.
4a
D40820
POPPET - check valve
1шт.
4b
D26826
COMPRESSION SPRING
SPRING - check valve
1шт.
4c
D40821
RETAINER
- spring
1шт.
4d
R15512
SNAP RING,#87, .929", Int, Spiral
RING - spirolox
1шт.
5
D32127
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D
1шт.
6
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.
3шт.
7
221-845
PLUG,Hex Soc, 3/4"-14
- pipe, hex. socket head (3/4" NPT)
1шт.
D47621
X
INLET SECTION - secondary, backhoe control valve, center, Includes: Ref. 8 - 17
1шт.
D40775
VALVE
ASSEMBLY - check, backhoe inlet section - center, Includes: Ref. 8 - 14
1шт.
8
D40819
CARTRIDGE - check valve, backhoe inlet section - center
1шт.
9
D40822
WASHER
GASKET - cartridge, backhoe inlet section - center
1шт.
10
D31413
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
SEAL - "O" ring, backhoe inlet section - center
1шт.
11
D40820
POPPET - check valve, backhoe inlet section - center
1шт.
12
D26826
COMPRESSION SPRING
SPRING - check valve, backhoe inlet section - center
1шт.
13
D40821
RETAINER
- spring, backhoe inlet section - center
1шт.
14
R15512
SNAP RING,#87, .929", Int, Spiral
RING - spirolox, backhoe inlet section - center
1шт.
15
NSS
NOT SOLD SEPARAT
HOUSING - inlet section, secondary, backhoe - center
1шт.
16
D32127
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Standard 70 durometer), backhoe inlet section - center
1шт.
16
L46406
O-RING
SEAL - "O" ring, 1-13/16" I.D. x 2" O.D. (Optional 90 durometer), backhoe inlet section - center
1шт.
17
D26820
O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Standard 70 durometer), backhoe inlet section - center
3шт.
17
L46405
O-RING
SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D. (Optional 90 durometer), backhoe inlet section - center
3шт.
D47623
VALVE BLOCK
OUTLET SECTION - backhoe control valve, Includes: Ref. 18 - 35
1шт.
D32126
FILTER
CARTRIDGE - relief, backhoe outlet section, Includes: Ref. 18 - 28
1шт.
18
R12507
LOCK NUT
- lock, adjusting screw, backhoe outlet section
1шт.
19
R21364
SCREW
- spring adjusting, backhoe outlet section
1шт.
20
D31413
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
SEAL - "O" ring, backhoe outlet section
2шт.
21
D32476
SPRING
- compression, backhoe outlet section
1шт.
22
R16125
PLUNGER
- displacement, backhoe outlet section
1шт.
23
R12509
RING
- backup, backhoe outlet section
1шт.
24
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
SEAL - "O" ring, backhoe outlet section
1шт.
25
R12510
SEAT
- floating, backhoe outlet section
1шт.
26
R16123
WASHER, THRUST
SNUBBER - check valve, backhoe outlet section
1шт.
27
D39700
KIT
SHELL ASSEMBLY - cartridge, backhoe outlet section
1шт.
28
D40822
WASHER
- gasket, backhoe outlet section
1шт.
29
NSS
NOT SOLD SEPARAT
HOUSING - outlet section, backhoe
1шт.
30
D40827
SPOOL - regeneration, outlet section, backhoe
1шт.
31
D36807
SPACER
- spool, backhoe outlet section
1шт.
32
D36600
VALVE SPRING
SPRING - spool, backhoe outlet section
1шт.
33
D40759
GASKET
- cap, backhoe outlet section
1шт.
34
D47666
CYLINDER END CAP
CAP - outlet section, backhoe outlet section
1шт.
35
221-845
PLUG,Hex Soc, 3/4"-14
- pipe, hex. socket head (3/4" NPT), backhoe outlet section
1шт.
Выбрано товаров: 47
