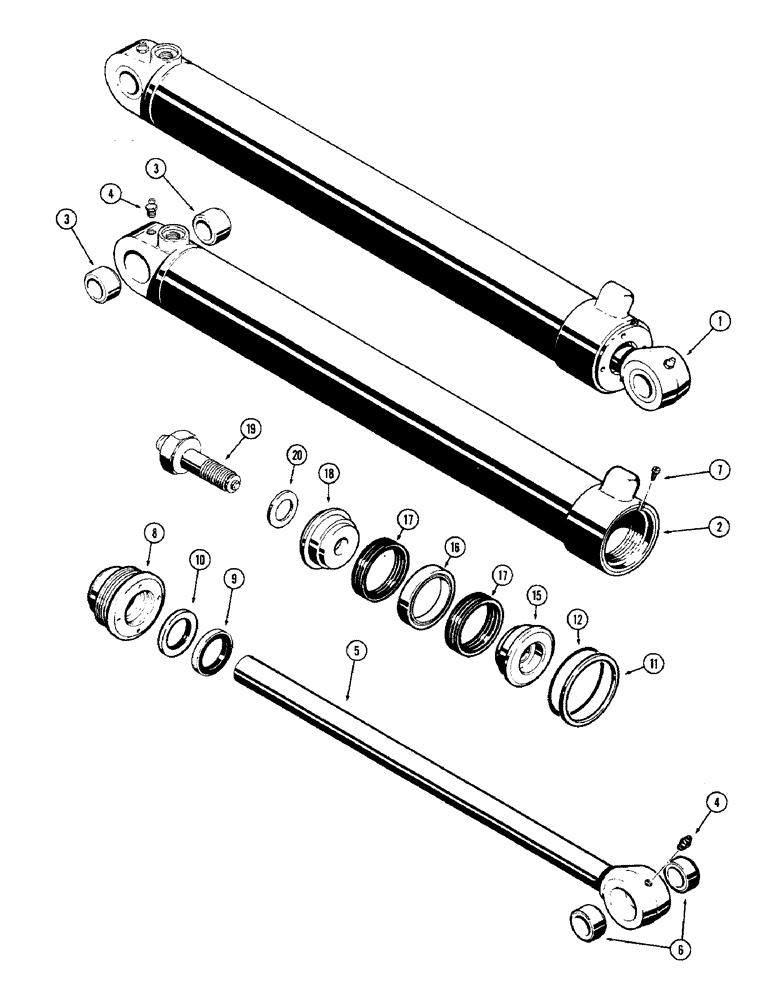

Запчасти Case 680CK (226) - G32692 BACKHOE BOOM CYLINDER (35) - HYDRAULIC SYSTEMS

1

G32692

CYLINDER

- boom, Includes: Ref. 2 - 20

1шт.

2

D45314

BODY

TUBE ASSY. - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

5

D44581

ROD

ASSY. - piston, Includes: Ref. 6

1шт.

6

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- rod

2шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" self-tapping

1шт.

8

G32802

GLAND

- packing

1шт.

9

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit G32696

1шт.

10

D39359

RUBBER SEAL

SEAL - rod

1шт.

Part of Seal Kit G32696

1шт.

11

G32105

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit G32696

1шт.

12

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - 5 x 5-1/4 x 1/8"

1шт.

Part of Seal Kit G32696

1шт.

15

D46426

PISTON

- split, rod end

1шт.

16

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - piston, vee seal

1шт.

17

D47206

PACKING

- piston, vee seal

2шт.

Part of Seal Kit G32696

1шт.

18

D46932

PISTON

- split, bolt end

1шт.

19

G33243

HARDWARE

BOLT ASSY. - retaining

1шт.

20

G32351

WASHER

- piston bolt, 1-11/32 x 2-1/2 x 9/64"

1шт.

G32696

KIT

SEAL KIT - cylinder packing, Incl. Refs. 9, 10, 11, 12 and 17

1шт.
