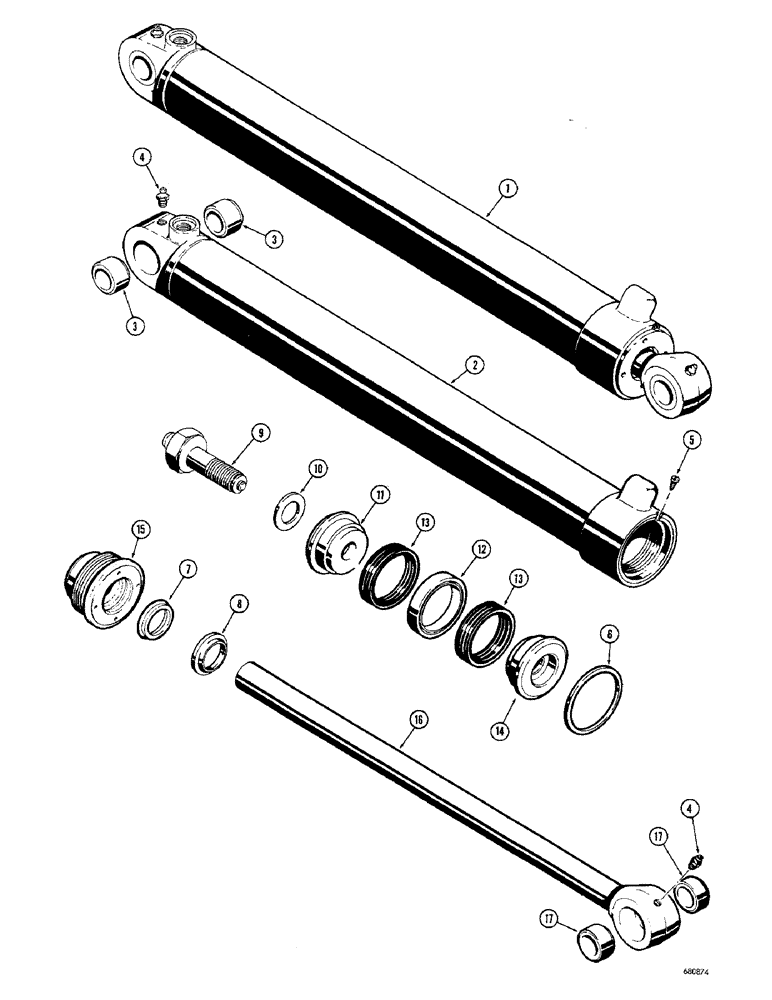

Запчасти Case 680CK (224) - D45313 BACKHOE BOOM CYLINDER (35) - HYDRAULIC SYSTEMS

1

D45313

WASHER

CYLINDER - hydraulic, boom (5" I.D. x 39-3/16" stroke), Includes: Ref. 2 - 17

1шт.

2

D45314

BODY

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

D47650

KIT

- packing, gland type cylinder, Includes: Ref. 5 - 8

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D44723

SEAL

- square edge, gland

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

8

D39360

WIPER

- rod, "Step Type" (Used with D44584 gland only)

1шт.

8

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod, "U Type" (Used with D49213 gland only)

1шт.

9

D45879

TUBE

BOLT - special (Restrictor)

1шт.

10

D36434

WASHER

- special (When stock is exhausted, order D95033 washer for service)

1шт.

10

D95033

WASHER

- special

1шт.

11

D46932

PISTON

- split, bolt end

1шт.

12

D43546

PACKING

RING - packing, piston (When stock is exhausted, order 1 - D47211 ring for serivce)

1шт.

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - packing, piston

1шт.

13

D42594

FACING

PACKING - piston, chevron (When stock is exhausted, order 1 - D47206 packing for service)

2шт.

D47206

PACKING

- piston, chevron

2шт.

14

D46426

PISTON

- split, rod end

1шт.

15

D44584

GLAND

- packing, requires "Step Type" wiper (When stock is exhausted, use D49213 gland and D95145 wiper for service)

1шт.

15

D49213

GLAND

- packing, requires "U Type" wiper

1шт.

16

D44581

ROD

- piston (2-1/4" dia.), Includes: Ref. 17

1шт.

17

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- rod

2шт.
