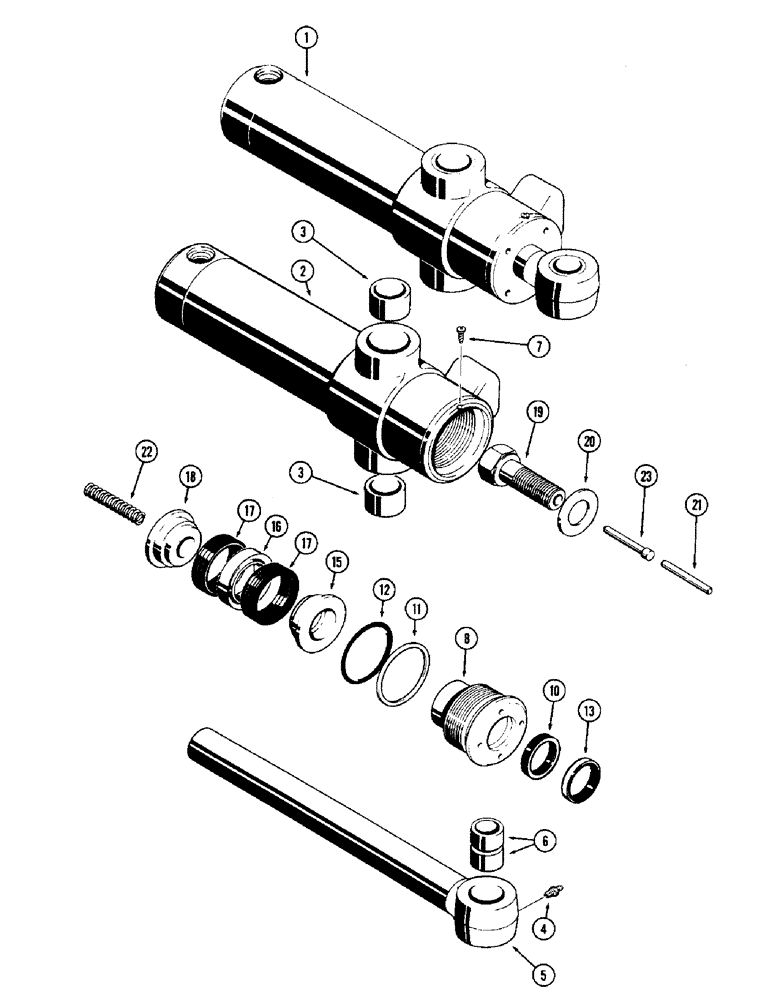

Запчасти Case 680CK (222) - G32878 & G32879 BACKHOE SWING CYLINDERS (35) - HYDRAULIC SYSTEMS

1

G32878

CYLINDER

ASSY. - swing, R.H. (Replaces G32676), Includes: Ref. 2 - 23

1шт.

1

G32879

CYLINDER

ASSY. - swing, L.H. (Replaces G32675), Includes: Ref. 2 - 23

1шт.

2

G32882

TUBE,19.37" L

ASSY. - cylinder, R.H. (Replaces D45306), Includes: Ref. 3

1шт.

2

G32883

TUBE

ASSY. - cylinder, L.H. (Replaces D45305), Includes: Ref. 3

1шт.

3

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

5

D47975

PISTON ROD

ROD ASSY. - piston, Includes: Ref. 6

1шт.

6

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- rod

2шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 x 1/4" self-tapping

1шт.

8

G32730

GLAND

- packing (Replaces G32114)

1шт.

10

D36971

RING

SEAL - rod

1шт.

Part of Seal Kit G32885

1шт.

11

G32284

BACK-UP RING

- back-up

1шт.

Part of Seal Kit G32885

1шт.

12

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - 4-1/2 x 4-3/4 x 1/8"

1шт.

Part of Seal Kit G32885

1шт.

13

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Rod

1шт.

Part of Seal Kit G32885

1шт.

15

D49166

PISTON ASSY.

PISTON - split, rod end

1шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - piston, vee seal

1шт.

17

D47205

PACKING

- piston, vee seal

2шт.

Part of Seal Kit G32885

1шт.

18

D46931

PISTON

- split, bolt end

1шт.

19

D44557

BOLT

- piston retaining

1шт.

20

G32351

WASHER

- piston bolt, 1-11/32 x 2-1/2 x 9/64"

1шт.

21

D46155

SPACER

- cushion pin

1шт.

22

D44554

VALVE SPRING

SPRING - cushion

1шт.

23

D46171

AXLE PIN

PIN - cushion

1шт.

G32885

KIT

SEAL KIT - cylinder packing, Incl. 10, 11, 12, 13 and 17

1шт.
